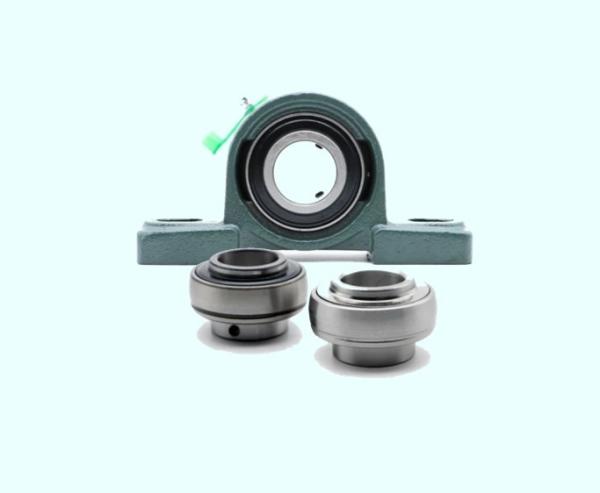

single row Bearings With Housing UC200 Series Open 2RS ZZ P6 P5
single row Bearings With Housing UC200 Series Open 2RS ZZ P6 P5
Specifications
Brand Name :
DCM
Model Number :
Insert Bearings with housing UC200 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Clearance :
C0 C3
Vibration :
Z1 Z2 Z3 Z4 V1 V2 V3 V4
Number of row :
Single Row
Application :
Machinery,motors,Mining. Metallurgy. Agriculture. Chemical,Elevator
Cage :
Steel Cage.copper Cage.nylon Cage
Main market :
Europe,America.Southeast Asia
Description

UC200 Insert Bearings

Features

Insert Bearings with housing UC200 Series Open 2RS ZZ P6 P5

Product Specification

Precision Rate P0,P6,P5,ABEC 1,ABEC 3,ABEC 5
Vrbration Z1,Z2,Z3,Z4,V1,V2,V3,V4
Bore Size 10mm-200mm
Cage Steel Retainer,Nylon Retainer
Seal Type Open,2RS,ZZ,2RSE,2RZ,N,NR,RS,Z
Lubricated Oil,Grease
Clearance C0,C2,C3,C4,C5

Bearing No. Shaft Dia Boundary dimensions(mm) Basic load ratings
in. mm D Bi Be n m G ds C Co
UC201 12 47 31 16 12.7 18.3 5 M6x1.0 12890 6490
UC201-8 12 47 31 16 12.7 18.3 5 1/4-28UNF 12890 6490
UC202 15 47 31 16 12.7 18.3 5 M6x1.0 12890 6490
UC202-10 58 47 31 16 12.7 18.3 5 1/4-28UNF 12890 6490
UC203 17 47 31 16 12.7 18.3 5 M6x1.0 12890 6490
UC204 20 47 31 16 12.7 18.3 5 M6x1.0 12890 6490
UC204-12 34 47 31 16 12.7 18.3 5 1/4-28UNF 12890 6490
UC205 25 52 34 17 14.3 19.7 5.5 M6x1.0 14000 7560
UC205-14 78 52 34 17 14.3 19.7 5.5 1/4-28UNF 14000 7560
UC205-15 1516 52 34 17 14.3 19.7 5.5 1/4-28UNF 14000 7560
UC205-16 1 52 34 17 14.3 19.7 5.5 1/4-28UNF 14000 7560
UC206 1-116 30 62 38.1 19 15.9 22.2 6 M6x1.0 19510 11160
UC206-17 1-18 62 38.1 19 15.9 22.2 6 1/4-28UNF 19510 11160
UC206-18 1-316 62 38.1 19 15.9 22.2 6 1/4-28UNF 19510 11160
UC206-19 1-14 62 38.1 19 15.9 22.2 6 1/4-28UNF 19510 11160
UC206-20 1-14 62 38.1 19 15.9 22.2 6 1/4-28UNF 19510 11160
UC207 35 72 42.9 20 17.5 25.4 6.5 M8x1.0 25640 15330
UC207-20 1-14 72 42.9 20 17.5 25.4 6.5 5-16/24UNF 25640 15330
UC207-21 1-516 72 42.9 20 17.5 25.4 6.5 5-16/24UNF 25640 15330
UC207-22 1-38 72 42.9 20 17.5 25.4 6.5 5-16/24UNF 25640 15330
UC207-23 1-716 72 42.9 20 17.5 25.4 6.5 5-16/24UNF 25640 15330
UC208 40 80 49.2 21 19 30.2 8 M8x1.0 28890 17110
UC208-24 1-12 80 49.2 21 19 30.2 8 5-16/24UNF 28890 17110
UC208-25 1-916 80 49.2 21 19 30.2 8 5-16/24UNF 28890 17110
UC209 45 85 49.2 22 19 30.2 8 M8x1.0 32670 18220
UC209-26 1-58 85 49.2 22 19 30.2 8 5-16/24UNF 32670 18220
UC209-27 1-1116 85 49.2 22 19 30.2 8 5-16/24UNF 32670 18220
UC209-28 1-34 85 49.2 22 19 30.2 8 5-16/24UNF 32670 18220
UC210 50 90 51.6 24 19 32.6 9 M10x1.25 35110 20840
UC210-30 1-78 90 51.6 24 19 32.6 9 3/8-24UNF 35110 20840
UC210-31 1-15/16 90 51.6 24 19 32.6 9 3/8-24UNF 35110 20840
UC210-32 2 90 51.6 24 19 32.6 9 3/8-24UNF 35110 20840
UC211 55 100 55.6 25 22.2 33.4 9 M10x1.25 43330 26000
UC211-32 2 100 55.6 25 22.2 33.4 9 3/8-24UNF 43330 26000
UC211-34 2-18 100 55.6 25 22.2 33.4 9 3/8-24UNF 43330 26000
UC211-35 2-36 100 55.6 25 22.2 33.4 9 3/8-24UNF 43330 26000
UC212 60 110 65.1 27 25.4 39.7 10.5 M10x1.25 51110 36000
UC212-36 2-14 110 65.1 27 25.4 39.7 10.5 3/8-24UNF 51110 36000
UC212-38 2-38 110 65.1 27 25.4 39.7 10.5 3/8-24UNF 51110 36000
UC212-39 2-716 110 65.1 27 25.4 39.7 10.5 3/8-24UNF 51110 36000
UC213 65 120 65.1 28 25.4 39.7 12 M10x1.25 56890 39560
UC213-40 2-12 120 65.1 28 25.4 39.7 12 3/8-24UNF 56890 39560
UC214 70 125 74.6 30 30.2 44.4 12 M12x1.25 62220 44000
UC214-43 2-1116 125 74.6 30 30.2 44.4 12 7/16-20UNF 62220 44000
UC214-44 2-34 125 74.6 30 30.2 44.4 12 7/16-20UNF 62220 44000
UC215 75 130 77.8 30 33.3 44.5 12 M12x1.25 66220 48890
UC215-47 2-15/16 130 77.8 30 33.3 44.5 12 7/16-20UNF 66220 48890
UC215-48 3 130 77.8 30 33.3 44.5 12 7/16-20UNF 66220 48890

Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
  • Elevator
