32919 32019 Tapered Needle Roller Bearing , 95mm Single Row Taper Roller Bearing
32919 32019 Tapered Needle Roller Bearing , 95mm Single Row Taper Roller Bearing
32919 32019 Tapered Needle Roller Bearing , 95mm Single Row Taper Roller Bearing
32919 32019 Tapered Needle Roller Bearing , 95mm Single Row Taper Roller Bearing
32919 32019 Tapered Needle Roller Bearing , 95mm Single Row Taper Roller Bearing
32919 32019 Tapered Needle Roller Bearing , 95mm Single Row Taper Roller Bearing
Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 33000 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Cage :
Steel Cage
Application :
Automotive
Description

ID 95 mm 32919 32019 33019 30219 32219 33219 30319 31319 32319 V1 V2 P6 P6X P5

Features

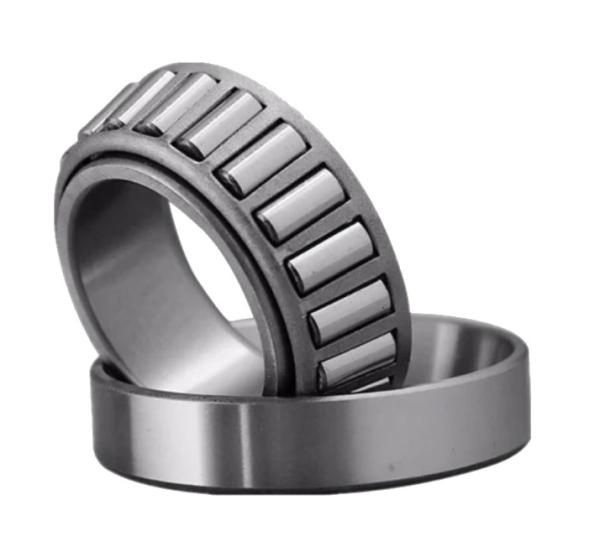

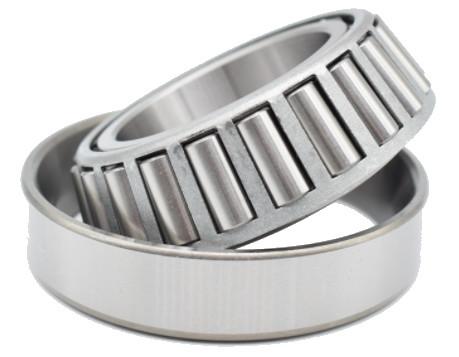

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Basic dimension Basic load rating Limiting Speeds Weight Caculation factor Bearing code
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
95 130 23 18 23 1.5 1.5 98 172 2400 3400 0.877 0.36 1.7 0.92 32919
145 32 24 32 2 1.5 156.5 276.3 2300 3200 1.78 0.44 1.4 0.75 32019
145 39 32.5 39 2 1.5 231 389.9 2400 3200 2.26 0.28 2.2 1.2 33019
170 32 27 34.5 3 2.5 213.7 306.6 2200 2800 2.999 0.42 1.4 0.79 30219
170 43 37 45.5 3 2.5 298 415 2200 2800 4.34 0.42 1.4 0.79 32219
200 45 38 49.5 4 3 365 445 1800 2600 6.91 0.35 1.7 0.96 30319
200 45 32 49.5 4 3 310 375 1700 2400 6.64 0.83 0.73 0.4 31319
200 67 55 71.5 4 3 525 710 1900 2600 10.4 0.35 1.7 0.96 32319


Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
