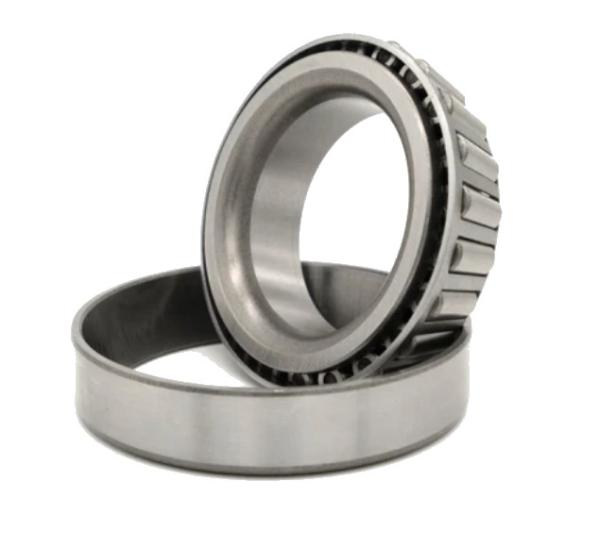

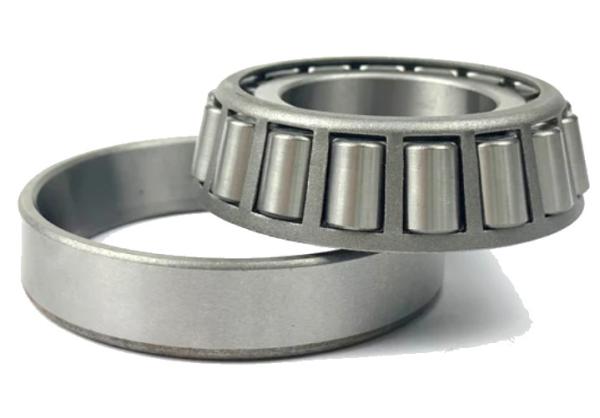

P5 Precision Preload Tapered Roller Bearings 32912 32012 33012 60mm ID
P5 Precision Preload Tapered Roller Bearings 32912 32012 33012 60mm ID
P5 Precision Preload Tapered Roller Bearings 32912 32012 33012 60mm ID
P5 Precision Preload Tapered Roller Bearings 32912 32012 33012 60mm ID
P5 Precision Preload Tapered Roller Bearings 32912 32012 33012 60mm ID
P5 Precision Preload Tapered Roller Bearings 32912 32012 33012 60mm ID
Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 33000 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Cage :
Steel Cage
Application :
Automotive
Description

ID 60 mm 32912 32012 33012 30212 32212 33212 30312 31312 32312 V1 V2 P6 P6X P5

Features

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Basic dimension Basic load rating Limiting Speeds Weight Caculation factor Bearing code
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
60 85 17 14 17 1 1 49 84.5 3800 5300 0.306 0.33 1.8 1 32912
95 23 17.5 23 1.5 1.5 79.2 118 3800 5000 0.589 0.43 1.4 0.77 32012
95 27 21 27 1.5 1.5 96 150 3600 5000 0.713 0.33 1.8 1 33012
110 22 19 23.75 2 1.5 98 129.4 3400 4500 0.888 0.41 1.5 0.81 30212
110 28 24 29.75 2 1.5 126.1 179 3400 4500 1.148 0.41 1.5 0.81 32212
130 31 26 33.5 3 2.5 163 185 3000 4000 1.96 0.35 1.7 0.96 30312
130 31 22 33.5 3 2.5 138 155 2600 3700 1.92 0.83 0.73 0.4 31312
130 46 37 48.5 3 2.5 229 289 3000 4000 2.9 0.35 1.7 0.96 32312


Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
