Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 33000 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Cage :
Steel Cage
Application :
Automotive
Description

ID 35 mm 32907 32007 33007 30207 32207 33207 30307 31307 32307 V1 V2 P6 P6X P5

Features

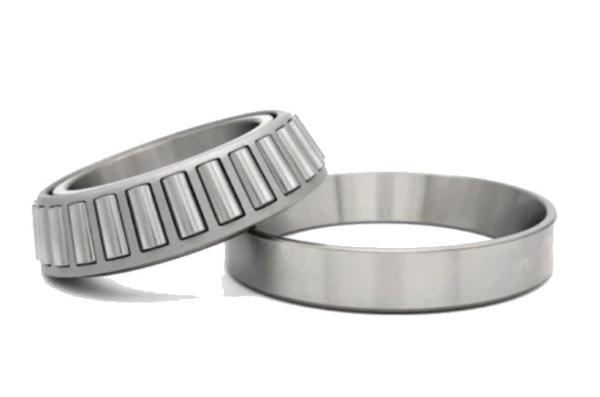

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Basic dimension Basic load rating Limiting Speeds Weight Caculation factor Bearing code
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
35 55 14 11.5 14 0.6 0.6 27.4 39 6300 8500 0.123 0.29 2.1 1.1 32907
62 18 14 18 1 1 41 58.2 6000 8000 0.221 0.45 1.3 0.73 32007
62 21 17 21 1 1 49 65 5600 8000 0.267 0.31 2 1.1 33007
72 17 15 18.25 1.5 1.5 51.6 63.5 5300 7000 0.325 0.37 1.6 0.88 30207
72 23 19 24.25 1.5 1.5 67.2 89.5 5300 7000 0.44 0.37 1.6 0.88 32207
72 28 22 28 1.5 1.5 87.5 106 5300 7000 0.519 0.35 1.7 0.93 33207
80 21 18 22.75 2 1.5 68.5 65 5000 6700 0.515 0.32 1.9 1.1 30307
80 21 15 22.75 2 1.5 68 76 4500 6000 0.515 0.83 0.73 0.4 31307
80 31 25 32.75 2 1.5 90.5 94 5000 6700 0.755 0.32 1.9 1.1 32307

Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
