V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
V1 V2 Tapered Roller Bearings 30204 32204 30304 ID 0.02m Used In Motors
Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 33000 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Cage :
Steel Cage
Application :
Automotive
Description

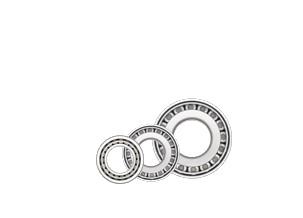

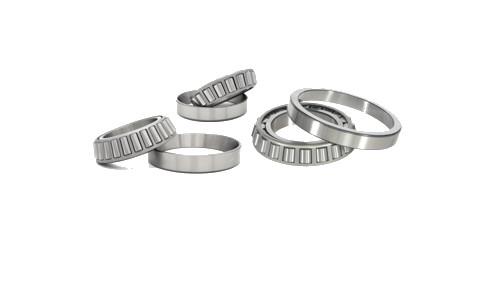

ID 20 mm 30204 32204 30304 32304 V1 V2 P6 P6X P5 Tapered Roller Bearings

Features

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Basic dimension Basic load rating Limiting Speeds Weight Caculation factor Bearing code
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
20 47 14 12 15.25 1 1 26.9 30.6 8000 11000 0.123 0.35 1.7 0.9 30204
47 18 15 19.25 1 1 34.4 41.3 8000 11000 0.159 0.33 1.8 1 32204
52 15 13 16.25 1.5 1.5 33.1 33.2 7500 10000 0.17 0.3 2 1.1 30304
52 21 18 22.3 1.5 1.5 42.7 46.3 8000 11000 0.24 0.3 2 1.1 32304

Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
