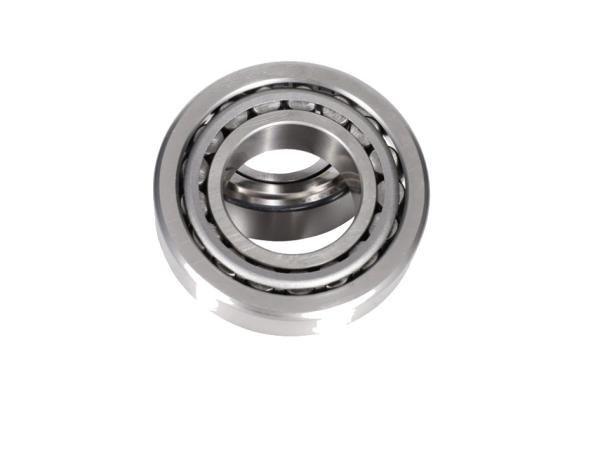

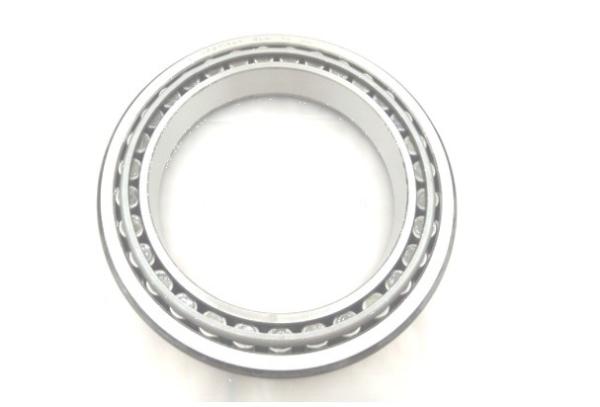

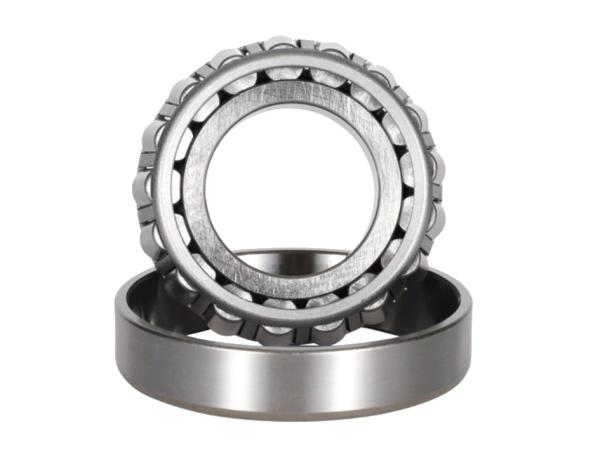

32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material
32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material
32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material
32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material
32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material
32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material
Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 32200 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Structure :
Taper
Product name :
Tapered Roller Beairngs
Cage :
steel
Description

32207 Tapered Roller Bearing For Forklift Axle Transmission Gantry Gearbox Bridge Forklift Sprocke

Features

Tapered roller bearings are separate bearings, whose inner ring assembly (including tapered rollers and cage) and the outer ring can be installed separately. During the installation, the radial and axial clearances of the bearing can be adjusted, or interference installation is adopted. Tapered roller bearing has tapered raceways on both inner and outer rings, and can be divided into single-row, double-row and four-row tapered roller bearings according to the number of roller rows installed. Single-row tapered roller bearings can withstand radial load and single-direction axial load, as well as combined load mainly consisting of radial load. When the bearing is subject to radial load, an axial component force will be generated, so another bearing that can withstand the axial force in the opposite direction is needed to balance. Single row tapered roller bearings’ axial load carrying capacity depends on the contact angle. The greater the contact angle, the greater the axial load force.

Our strengths:

DCM has long-term experience in supporting this industry and has given many improving ways on products for customers to make forklift trucks safer and have longer life.

DCM is able to develop synchronously special purpose bearings according to special working conditions;

DCM can solve your technical problems and provide superior technical supports timely and quickly;

DCM can lower your purchase cost and provide timely product delivery.

Product Specification

Bearing No. Dimensions(mm) Basic dynamic
load rating
Cr(KN)		 Basic static
load rating
Cr(KN)		 Speed Limit Weight
(kg)
grease oil
d D T B C rsmin r1smin r2smin r/min
32207 35 72 24.25 23 19 1.5 1.5 0.6 72.5 87 5500 7400 0.457


32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material

Application

32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material

Application areas:

Axle, transmission, gantry

32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material

32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material

32207 Taper Roller Bearing Series For Gearbox Bridge GCr15 Material
