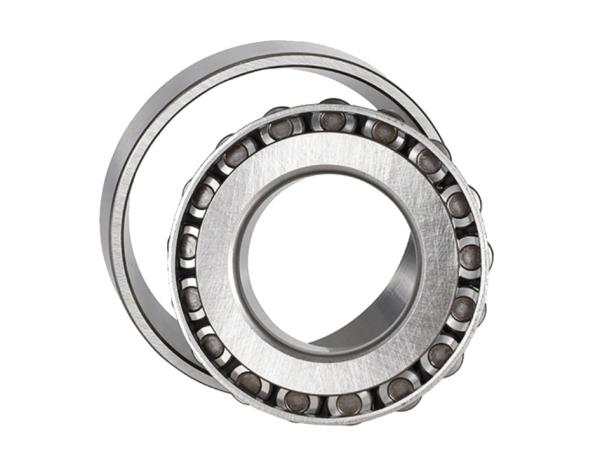

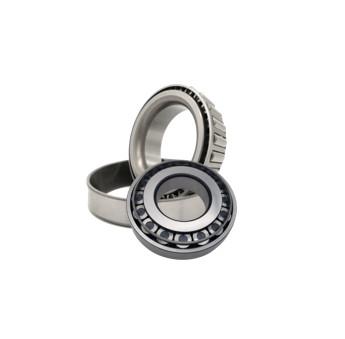

TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
Specifications
Brand Name :
DCM
Model Number :
Forklift Bearings TRB Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Application :
Automotive,Machinery,Cars,Gearboxes
Cage :
Steel Cage
Description

DCM Bearings For Forklift Axle Transmission Gantry 6000 6200 30200 32200 180700K 180700KT 760200NT 780700 Series

Features

Forklift belongs to a kind of engineering machinery, including hydraulic forklift and electric forklift, which are used in freight yards, enterprises, shopping malls and other logistics places. Its safety and convenience are favored by people, and the gantry bearing is the main representative of bearings used in forklifts. DCM has long-term experience in supporting this industry and has given many improving ways on products for customers to make forklift trucks safer and have longer life.

Product Specification

Bearing No. Dimensions(mm) Basic dynamic
load rating
Cr(KN)		 Basic static
load rating
Cr(KN)		 Speed Limit Weight
(kg)
grease oil
d D T B C rsmin r1smin r2smin r/min
32005 25 47 15 15 11.5 0.6 0.6 0.15 27.8 33.5 7900 11000 0.114
32006 30 55 17 17 13 1 1 0.3 37.5 46 6900 9200 0.166
32007 35 62 18 18 14 1 1 0.3 41.5 52.5 6100 8100 0.224
32008 40 68 19 19 14.5 1 1 0.3 50 65.5 5300 7100 0.273
32009 45 75 20 20 15.5 1 1 0.3 57.5 76.5 4800 6400 0.346
32010 50 80 20 20 15.5 1 1 0.3 62.5 88 4400 5800 0.366
32011 55 90 23 23 17.5 1.5 1.5 0.6 80.5 118 4000 5400 0.563
32012 60 95 23 23 17.5 1.5 1.5 0.6 82 123 3700 4900 0.576
32013 65 100 23 23 17.5 1.5 1.5 0.6 83 128 3400 4600 0.63
32014 70 110 25 25 19 1.5 1.5 0.6 105 160 3200 4200 0.848
32015 75 115 25 25 19 1.5 1.5 0.6 106 167 3000 4000 0.909
32016 80 125 29 29 22 1.5 1.5 0.6 139 216 2800 3700 1.28
32017 85 130 29 29 22 1.5 1.5 0.6 142 224 2600 3500 1.35
32018 90 140 32 32 24 2 1.5 0.6 168 270 2500 3300 1.79
32019 95 145 32 32 24 2 1.5 0.6 171 280 2300 3100 1.83
32020 100 150 32 32 24 2 1.5 0.6 170 281 2200 3000 1.91
32021 105 160 35 35 26 2.5 2 0.6 201 335 2100 2800 2.42
32022 110 170 38 38 29 2.5 2 0.6 236 390 2000 2700 3.07
32024 120 180 38 38 29 2.5 2 0.6 245 420 1800 2500 3.25
30205 25 52 16.25 15 13 1 1 0.3 31.5 34 7300 9800 0.154
30206 30 62 17.25 16 14 1 1 0.3 43.5 48 6300 8400 0.241
30207 35 72 18.25 17 15 1.5 1.5 0.6 55.5 61.5 5500 7400 0.344
30208 40 80 19.75 18 16 1.5 1.5 0.6 61 67 4900 6600 0.435
30209 45 85 20.75 19 16 1.5 1.5 0.6 67.5 78.5 4400 5900 0.495
30210 50 90 21.75 20 17 1.5 1.5 0.6 77 93 4000 5300 0.563
30211 55 100 22.75 21 18 2 1.5 0.6 93 111 3600 4900 0.74
30212 60 110 23.75 22 19 2 1.5 0.6 105 125 3400 4500 0.949
30213 65 120 24.75 23 20 2 1.5 0.6 123 148 3100 4200 1.18
30214 70 125 26.25 24 21 2 1.5 0.6 131 162 2900 3900 1.26
30215 75 130 27.25 25 22 2 1.5 0.6 139 175 2700 3600 1.41
30216 80 140 28.25 26 22 2.5 2 0.6 160 200 2500 3400 1.72
30217 85 150 30.5 28 24 2.5 2 0.6 183 232 2400 3200 2.14
30218 90 160 32.5 30 26 2.5 2 0.6 208 267 2200 3000 2.66
30219 95 170 34.5 32 27 3 2.5 1 226 290 2100 2800 3.07
30220 100 180 37 34 29 3 2.5 1 258 335 2000 2700 3.78
30221 105 190 39 36 30 3 2.5 1 287 380 1900 2500 4.39
30222 110 200 41 38 32 3 2.5 1 325 435 1800 2400 5.18
30224 120 215 43.5 40 34 3 2.5 1 345 470 1700 2200 6.23
32205 25 52 19.25 18 16 1 1 0.3 42 47 7300 9800 0.187
32206 30 62 21.25 20 17 1 1 0.3 54.5 64 6300 8400 0.301
32207 35 72 24.25 23 19 1.5 1.5 0.6 72.5 87 5500 7400 0.457
32208 40 80 24.75 23 19 1.5 1.5 0.6 79.5 93.5 4900 6600 0.558
32209 45 85 24.75 23 19 1.5 1.5 0.6 82 100 4400 5900 0.607
32210 50 90 24.75 23 19 1.5 1.5 0.6 87.5 109 4000 5300 0.648
32211 55 100 26.75 25 21 2 1.5 0.6 108 134 3600 4900 0.876
32212 60 110 29.75 28 24 2 1.5 0.6 130 164 3400 4500 1.18
32213 65 120 32.75 31 27 2 1.5 0.6 159 206 3100 4200 1.58
32214 70 125 33.25 31 27 2 1.5 0.6 166 220 2900 3900 1.68
32215 75 130 33.25 31 27 2 1.5 0.6 168 224 2700 3600 1.74
32216 80 140 35.25 33 28 2.5 2 0.6 199 265 2500 3400 2.18
32217 85 150 38.5 36 30 2.5 2 0.6 224 300 2400 3200 2.75
32218 90 160 42.5 40 34 2.5 2 0.6 262 360 2200 3000 3.49
32219 95 170 45.5 43 37 3 2.5 1 299 415 2100 2800 4.3
32220 100 180 49 46 39 3 2.5 1 330 465 2000 2700 5.12
32221 105 190 53 50 43 3 2.5 1 380 540 1900 2500 6.25
32222 110 200 56 53 46 3 2.5 1 420 605 1800 2400 7.43
32224 120 215 61.5 58 50 3 2.5 1 460 680 1700 2200 9.08
33205 25 52 22 22 18 1 1 0.3 47.5 57.5 7300 9800 0.217
33206 30 62 25 25 19.5 1 1 0.3 65 77 6300 8400 0.344
33207 35 72 28 28 22 1.5 1.5 0.6 87.5 109 5500 7400 0.531
33208 40 80 32 32 25 1.5 1.5 0.6 103 132 4900 6600 0.728
33209 45 85 32 32 25 1.5 1.5 0.6 107 141 4400 5900 0.783
33210 50 90 32 32 24.5 1.5 1.5 0.6 115 158 4000 5300 0.852
33211 55 100 35 35 27 2 1.5 0.6 138 188 3600 4900 1.15
33212 60 110 38 38 29 2 1.5 0.6 167 234 3400 4500 1.55
33213 65 120 41 41 32 2 1.5 0.6 195 265 3100 4200 1.98
33214 70 125 41 41 32 2 1.5 0.6 201 282 2900 3900 2.1
33215 75 130 41 41 31 2 1.5 0.6 208 298 2700 3600 2.2
33216 80 140 46 46 35 2.5 2 0.6 250 365 2500 3400 2.92
33217 85 150 49 49 37 2.5 2 0.6 284 420 2400 3200 3.58
30305 25 62 18.25 17 15 1.5 1.5 0.6 48.5 47.5 6700 8900 0.272
30306 30 72 20.75 19 16 1.5 1.5 0.6 60 61 5700 7600 0.408
30307 35 80 22.75 21 18 2 1.5 0.6 75 77 5000 6600 0.54
30308 40 90 25.25 23 20 2 1.5 0.6 91.5 102 4400 5900 0.769
30309 45 100 27.25 25 22 2 1.5 0.6 111 126 4000 5300 1.01
30310 50 110 29.25 27 23 2.5 2 0.6 133 152 3600 4800 1.31
30311 55 120 31.5 29 25 2.5 2 0.6 155 179 3300 4400 1.66
30312 60 130 33.5 31 26 3 2.5 1 180 210 3000 4000 2.06
30313 65 140 36 33 28 3 2.5 1 203 238 2800 3700 2.55
30314 70 150 38 35 30 3 2.5 1 230 272 2600 3500 3.06
30315 75 160 40 37 31 3 2.5 1 255 305 2400 3200 3.57
30316 80 170 42.5 39 33 3 2.5 1 291 350 2300 3000 4.41
30317 85 180 44.5 41 34 4 3 1 305 365 2100 2900 5.2
30318 90 190 46.5 43 36 4 3 1 335 405 2000 2700 6.03
30319 95 200 49.5 45 38 4 3 1 365 445 1900 2500 6.98
30320 100 215 51.5 47 39 4 3 1 410 500 1800 2400 8.56
30321 105 225 53.5 49 41 4 3 1 435 530 1700 2300 9.79
30322 110 240 54.5 50 42 4 3 1 480 590 1600 2200 11.04
30324 120 260 59.5 55 45 4 3 1 560 695 1500 2000 14.2
32305 25 62 25.25 24 20 1.5 1.5 0.6 61.5 64.5 6700 8900 0.381
32306 30 72 28.75 27 23 1.5 1.5 0.6 81 90 5700 7600 0.583
32307 35 80 32.75 31 25 2 1.5 0.6 101 115 5000 6600 0.787
32308 40 90 35.25 33 27 2 1.5 0.6 122 150 4400 5900 1.08
32309 45 100 38.25 36 30 2 1.5 0.6 154 191 4000 5300 1.46
32310 50 110 42.25 40 33 2.5 2 0.6 184 232 3600 4800 1.92
32311 55 120 45.5 43 35 2.5 2 0.6 215 275 3300 4400 2.44
32312 60 130 48.5 46 37 3 2.5 1 244 315 3000 4000 3.02
32313 65 140 51 48 39 3 2.5 1 273 350 2800 3700 3.66
32314 70 150 54 51 42 3 2.5 1 310 405 2600 3500 4.46
32315 75 160 58 55 45 3 2.5 1 355 470 2400 3200 5.35
32316 80 170 61.5 58 48 3 2.5 1 395 525 2300 3000 6.41
32317 85 180 63.5 60 49 4 3 1 405 525 2100 2900 7.15
32318 90 190 67.5 64 53 4 3 1 450 595 2000 2700 8.57
32319 95 200 71.5 67 55 4 3 1 505 670 1900 2500 10.1
32320 100 215 77.5 73 60 4 3 1 570 770 1800 2400 12.7
32321 105 225 81.5 77 63 4 3 1 610 825 1700 2300 14.5
32322 110 240 84.5 80 65 3 3 1 620 830 1600 2200 16.9
32324 120 260 90.5 86 69 4 3 1 815 1130 1500 2000 22.4
33008 40 68 22 22 18 1 1 0.3 59.5 82.5 5300 7100 0.312
33009 45 75 24 24 19 1 1 0.3 66 93.5 4800 6400 0.398
33010 50 80 24 24 19 1 1 0.3 69.5 103 4400 5800 0.433
33011 55 90 27 27 21 1.5 1.5 0.6 91.5 138 4000 5400 0.643
33012 60 95 27 27 21 1.5 1.5 0.6 93.5 145 3700 4900 0.684
33012AL 60 95 27 27 21 1.5 1.5 0.6 93.5 145 3700 4900 0.734
33013 65 100 27 27 21 1.5 1.5 0.6 97.5 156 3400 4600 0.732
33014 70 110 31 31 25.5 1.5 1.5 0.6 127 204 3200 4200 1.07
33015 75 115 31 31 25.5 1.5 1.5 0.6 129 212 3000 4000 1.13
33016 80 125 36 36 29.5 1.5 1.5 0.6 173 284 2800 3700 1.6
33017 85 130 36 36 29.5 1.5 1.5 0.6 176 296 2600 3500 1.7
33018 90 140 39 39 32.5 2 1.5 0.6 215 360 2500 3300 2.18
33019 95 145 39 39 32.5 2 1.5 0.6 219 375 2300 3100 2.27
33020 100 150 39 39 32.5 2 1.5 0.6 224 390 2200 3000 2.37
33021 105 160 43 43 34 2.5 2 0.6 245 420 2100 2800 3
33022 110 170 47 47 37 2.5 2 0.6 288 500 2000 2700 3.8
33108 40 75 26 26 20.5 1.5 1.5 0.6 79.5 103 5200 6900 0.494
33109 45 80 26 26 20.5 1.5 1.5 0.6 84.5 115 4700 6200 0.542
33110 50 85 26 26 20 1.5 1.5 0.6 86.5 121 4200 5600 0.58
33111 55 95 30 30 23 1.5 1.5 0.6 111 155 3900 5200 0.846
33112 60 100 30 30 23 1.5 1.5 0.6 113 164 3600 4700 0.912
33113 65 110 34 34 26.5 1.5 1.5 0.6 144 211 3300 4400 1.28
33910 50.8 100 35 35 27 2.5 2.5 0.8 144.4 199.2 1.253
28680/28622 55.562 97.63 24.608 24.608 19.446 3.6 0.8 0.6 88.5 128 3700 4900 0.774
29587/29520 63.5 107.95 25.4 25.4 19.05 5 3.3 0.6 94.3 147.3 0.906
29590/29522 66.675 107.95 25.4 25.4 19.05 3.6 0.8 0.6 94.3 147.3 0.858
28985/98920 60.325 101.6 25.4 25.4 19.845 5 3.3 0.8 88.4 131.8 0.78
28584/28521 52.388 92.075 24.608 25.4 19.845 3.5 0.8 0.8 78.8 108.6 0.659
127509 45 85 25 23.5 20 1.5 1.5 0.8 70.4 90.7 0.589
306/47 47 100 43 43 37 2 1.5 0.6 154.9 209.4 1.6

Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes

​TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

Main Products

TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

Packaging & Shipping

TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

FAQ

Q1.Do you have MOQ?

Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it?

For the delivery fee,many samples are be requested to be sent,so we must get delivery fee. If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express. If you do not request,I will choose a cheap one in China.

Q3.How about the after sale service?

1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.

2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.

3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.

Q4.When can I get a price?

We usually quote within 24 hours after we get your inquiry.

Q5: Are you a trade company or manufacturer?

We are a professional manufacturer with our own factory.

Product tags

fag bearing calculator

,

skf bearing calculator

,

skf bearing calculaator
Send your message to this supplier
Send Now

TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

Ask Latest Price
Product Detail
Brand Name :
DCM
Model Number :
Forklift Bearings TRB Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Contact Supplier
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration
TRB Sprocket Bearing Size ABEC-3 ABEC-5 Precision V1 V2 Vibration

Anhui Thysenem Machinery Co., Ltd.

Active Member
5 Years
anhui
Since 2018
Business Type :
Manufacturer, Trading Company
Main Products :
Tapered Roller Bearings, Spherical Roller Bearings, Cylindrical Roller Bearings
Total Annual :
500000-1000000
Employee Number :
10~50
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Forklift Mast Roller Bearings
MachineU China Products Minerals & Metallurgy Alloy Steel Bearing Steel
Contact Supplier
Submit Requirement
