Wood spray and drying cabinets/ furniture spray cabinet TG-100B
Wood spray and drying cabinets/ furniture spray cabinet TG-100B
Specifications
Brand Name :
TARGET
Model Number :
TG-100B
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
$20000---60000
Payment Terms :
T/T, L/C
Supply Ability :
1000set/month
Delivery Time :
5--7 days
Packaging Details :
Standard export package
Description

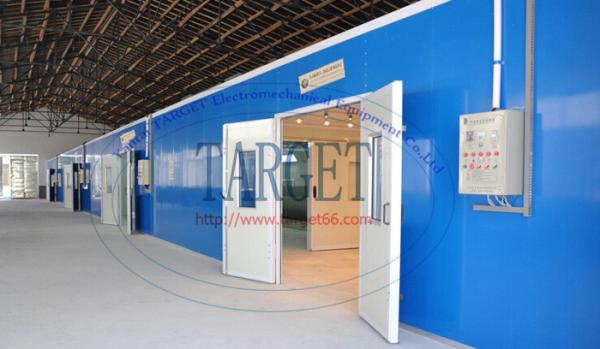

Wood spray and drying cabinets/ furniture spray cabinet TG-100B

Spcifications:

Furtinure Spray-Baking booth TG-100B
Outside Dimension (L×W×H) 20000×5000×3000mm
Painting Room Dimension (L×W) 4900×4900mm
Drying Room Dimension (L×W) 14950×4900mm
Incoming Door Dimension (W×H) 1900×2000mm
Delivery Door Dimension (W×H) 1900×2000mm
Air Capacity 18000M3/h
Air Speed 0.25-0.3 m/s
Ventilation Rate 255 Times/Hour
Wall Panels 50mm thick EPS heat preservation wall panels
Grilles 40mm×3mm flat iron,10#channel steel
Lighting

Spray booth: 18units×36w

Baking booth: 12units×36w Illuminance exceeding 450LUX, non explosive
Infrared Heating Tubes 30units×1kw carbon fiber far-infrared heating tubes, non explosive
Generator Setting Type Upper intake air
Intake Air Fan 2×4KW double-intake centrifugal fans, air capacity: 18000m3/h,
Water Curtains Dimension: 3000×400×1500mm(L×W×H), stainless steel.
Water Pump brand: Lailibao, capacity: 7m3/h, lift: 18m, rotate speed: 2860rotate/m power: 750W 380V/50HZ
Filter System Pre-filter, high efficiency filter(ceiling filter)
Total Power(KW) 39Kw


We will customize all kinds of furniture spray booth for you, Water curtain, dry style with paper filter and different kinds of size.
