Specifications
Brand Name :
BGO
Model Number :
OT-007
Certification :
SGS, CE, COC, UL, EN14960
Place of Origin :
China
MOQ :
30 pcs
Price :
Negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs/week
Packaging Details :
Wooden box
Market: :
Global
MOQ :
10 PCS
OEM :
accept
Shape :
Rectangle/pillow/onion
Color :
any color can be customized
Warranty :
1 Year
After-sales service provided :
Online support, Free spare parts, Video technical support
Usage :
to Provide Storage of Water and Liquid, Industry, rain collection, Fuel, oil
Description

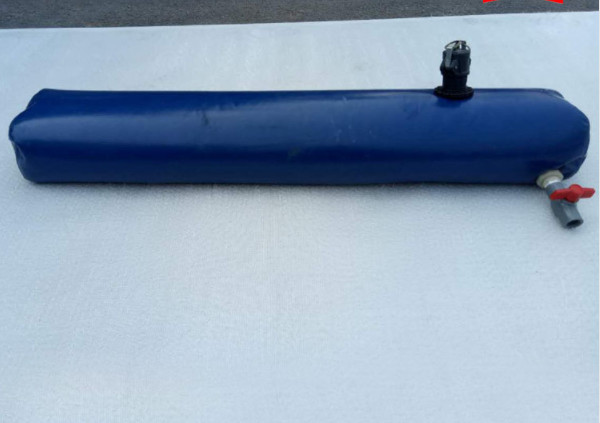

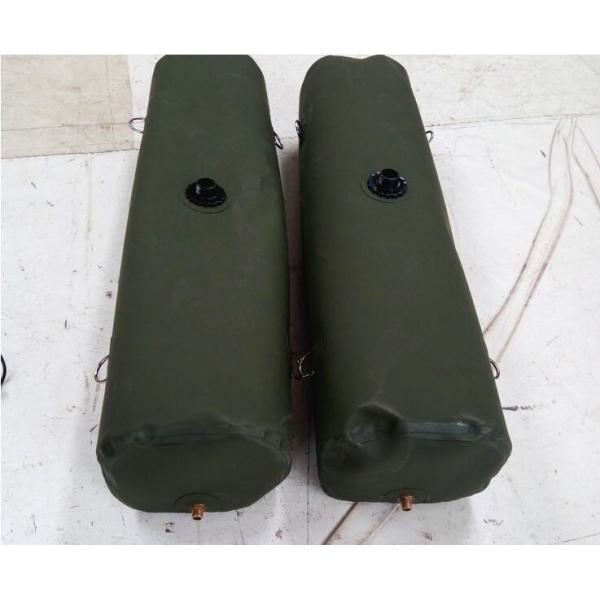

Armed Forces Diesel Fuel Storage Tank High Strength UV Protected Gasoline Bladder

Collapsible Fuel Bladder Tanks is for the storage and transportation of bulk fuel ,crude oil and lubricants etc .They are made of polyether and super hard material with ballistic plaiting and two sided polyvinyl chloride covering. A shell with such material can provide not only strength, but also containment and workability of products in the range of temperatures of -60 - +80 degrees.
These fuel bladders proved themselves well under the most extreme and the hardest conditions of use – whether these are wet rainforests, hot deserts or even cold tundra.
Capacity:100L-800,000L


Details For Fuel Tank


1, Capacity : 650L
2, Material: TPU
3, MOQ: 1 Piece
4, Packaging : Wooden carton
5, OEM: Accept

Volume(L) Square shape pillow shape
L(m) W(m) H(m) L (m) W(m)
200 1.1 0.6 0.3 1.4 0.9
500 1.65 0.7 0.4 2.05 1.1
800 2.0 0.8 0.5 2.5 1.3
1000 2.0 1.0 0.5 2.5 1.5
1500 2.5 1.0 0.6 3.1 1.6
2000 2.5 1.2 0.67 3.17 1.87
3000 3.0 1.5 0.67 3.67 2.17
5000 3.5 1.8 0.8 4.3 2.6
10000 4.8 2.1 0.95 5.75 3.05
20000 6.0 3.3 1.0 7.0 4.3
50000 9 7.3 0.8 10 8
100000 13 9.5 0.8 14 10

Advantages and Features of Fuel Bladder Tanks

Low profile when filled

Flat when empty
UV resistant, oil resistant
Top notch UV resistance
Excellent abrasion properties
Light weight, High strength
Easy to storage and shipment
Easy to setup and operate
Wide range of use
Wide range capacities up to 800 m3
Customized shape and size available
Various filling/discharge fittings
Supreme oil-resistance
Barrel end shape available
Highest quality TPU coating fabric

Flexible bladder tanks are made with high resistance PVC material and are welded with high frequency (HF) solderingtechniques. The bladder walls are made of polyester with PVC induction. The materials used in bladder walls are generally UVresistant and are chosen for their chemical stability and resistance to mechanical abrasion. Additionally, they are fabricated specifically to allow the tank to stand independent of any external support. Different compositions of bladder walls are used to store different types of liquid. For example, a particular design may be suited for hydrocarbon storage but others could be used for liquid fertilizers, chemical products, rainwater, drinking water, or used water.
Installation of a bladder tank is fast and simple, but requires a large, flat, open surface free of rocks or other materials that might damage the walls. A fine layer of sand or a special ground cloth is often used to minimize surface irregularities. Ground cloths are generally made from a geotextile fabric designed to minimize the chance of abrasion and tank failure

FAG

Q1:What's the shipping way?
We will provide a good suggestion for delivering the goods according to the size of the order and the delivery address:
1.For a small order, We will suggest to send it by DHL,UPS or the other cheap express so that you can get the products fast and safety.
2.For a big order, we can delivery it according to client's requests.

Q2:How can you ensure the quality Inspection?

During ordering process, We have the inspection standard before delivery , and we will provide the photos of the bulk finished products before packing.

Q3:Can you accept OEM

Yes, of course. Any logo is acceptable.
