Specifications
Brand Name :
TBC
Model Number :
D391
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Pixel :
3.91mm
IP Rate :
IP65
Cabinet Size :
500x1000mm
Module Size :
250mmx250mm
Module Pixel :
52x52
Material :
Die Cast Aluminum
Price :
Negotiable
Description

500x1000 4K HD Led Display P3.91mm Outdoor IP65 Ingress Rate

Application:

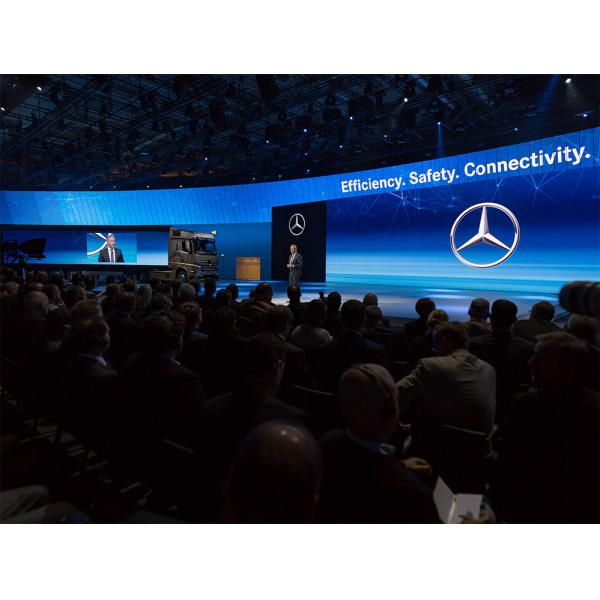

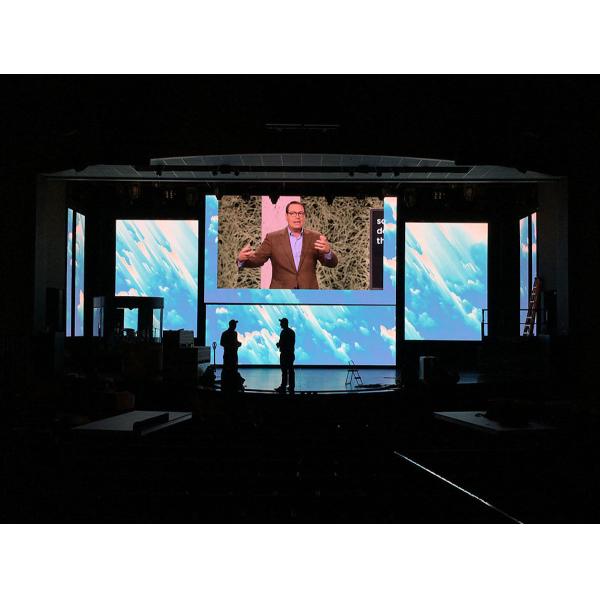

4K HD Led Display P3.91mm are widely used for stage background of live shows, events and broadcasting in operas, cinemas, concert hall, bars and so on.
Features and Advantages:

1.Front service, easy to install and use
2.Light weight and slim, easy to handle
3.Power saving compared with common products
4.High refresh IC, better viewing effect, no flickering, no ghost

5.Larger viewing angle, lower power consumption and better color uniformity.

6.Same level of red, green and blue led chips, which makes excellent and uniform image display

500x1000mm 4K HD Led Display P3.91mm Outdoor IP65 Ingress Rate

500x1000mm 4K HD Led Display P3.91mm Outdoor IP65 Ingress Rate

500x1000mm 4K HD Led Display P3.91mm Outdoor IP65 Ingress Rate500x1000mm 4K HD Led Display P3.91mm Outdoor IP65 Ingress Rate

Parameters:
Brightness nits 4200
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 14
Cabinet width mm 500
Cabinet height mm 1000
Cabinet depth mm 80
Cabinet area sq. m. 0.50
Cabinet material 　 Aluminum
Aspect ratio 　 1:2
Ingress protection (Front/Rear) IP IP65/IP54
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 3.906
Pixel matrix per cabinet 　 128x256
Pixels per cabinet 　 32768
Lines per meter 　 256
Pixels per sq. meter 　 65544
LEDs per sq. meter 　 65544
Recommended minimum viewing distance m 4
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 800/280
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
