4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service
Specifications
Brand Name :
TBC
Model Number :
D4.81
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Price :
negotiable
Pixel :
4.81mm
Cabinet Weight :
8kg
Dimension :
500x500mm
Refresh Rate :
1920Hz
Service :
Front
Material :
Die Cast Aluminum
Description

4K High Definition 500x500mm Indoor Led Video Wall P4.81mm with Front Service

Application:

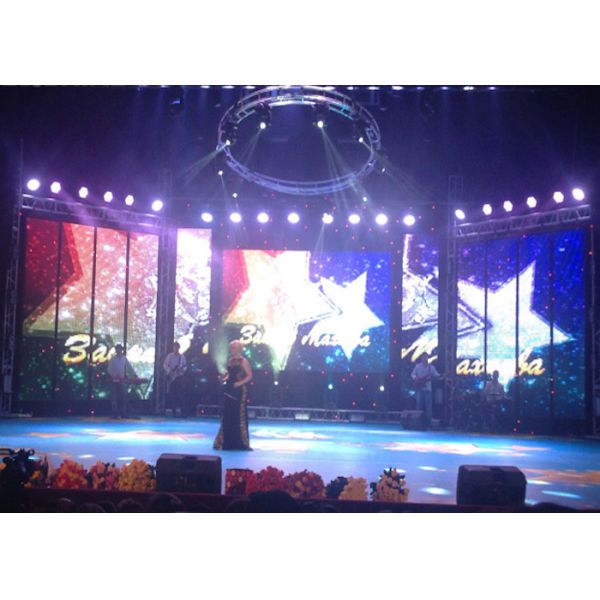

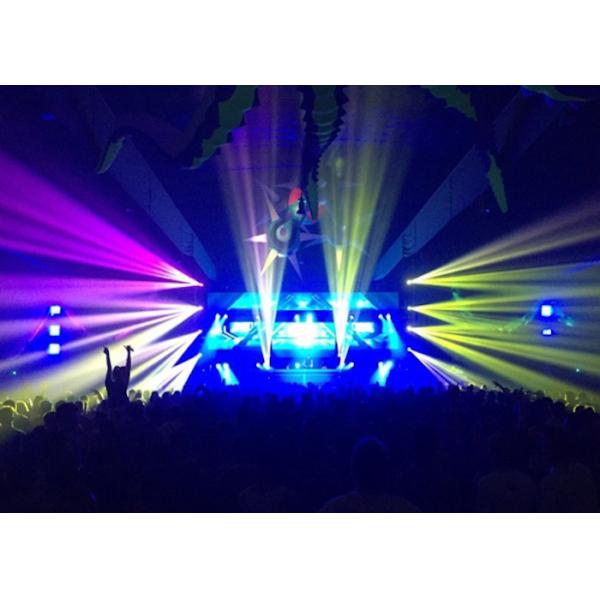

4K High Definition 500x500mm Indoor Led Video Wall P4.81mm with Front Service are the most welcomed indoor rental led display, widely used for stage, events, live broadcasting etc.
Features and Advantages:

One person can do installation and disassembly

Handle and fast lock design enable fast and convenient installation and disassembly, one person can handle it all.

One person maintenance

Light weight cabinet, 8kg per panel, easy to handle

Front service design, easy maintenance.

One panel available for concave and convex curves

Patented high precision curving blocks support 0-10° concave curve and 0 -5°
convex curve(customized).

Pictures

4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service4k Hd Indoor Led Video Wall 500 X 500mm 1920hz 4.81mm With Front Service

Parameters:
Brightness nits 1000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 11
Cabinet width mm 500
Cabinet height mm 1000
Cabinet depth mm 80
Cabinet area sq. m. 0.50
Cabinet material 　 Aluminum
Aspect ratio 　 1:2
Ingress protection (Front/Rear) IP IP40/IP20
Operating temperature range deg. C 0 to 40
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 4.808
Pixel matrix per cabinet 　 104x208
Pixels per cabinet 　 21321
Lines per meter 　 207
Pixels per sq. meter 　 43258
LEDs per sq. meter 　 43258
Recommended minimum viewing distance m 5
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1440
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 710/240
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
