80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage
Specifications
Brand Name :
TBC
Model Number :
D3.91
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
25days
Packaging Details :
Flight Case
Price :
Negotiable
Pixel :
3.91mm
Thickness :
80mm
Cabinet Size :
500x1000mm
Module Size :
250mmx250mm
Contrast :
3000:1
Material :
Die Cast Aluminum
Description

P3.91mm Magnetic Module Indoor Led Video Wall with 80mm Thin Cabinet

Application:
P3.91mm Magnetic Module Indoor Led Video Wall are the most popular rental led display we manufacture, annual sales over 10,000sqm. It's frequently used for stage, events, live broadcasting etc.
Features and Advantages:

Pop Lock & Play

  • Easy to install and dismantle
  • Good latch mechanism, no gaps
  • Curving bracket available for adjustable angle option

No Sweat Service

  • Front or rear service available
  • Magnetic modular design
  • Ribbon-free connector

Safe And Reliable

  • With dual power supply
  • Redundant data
  • Made tough for mobile

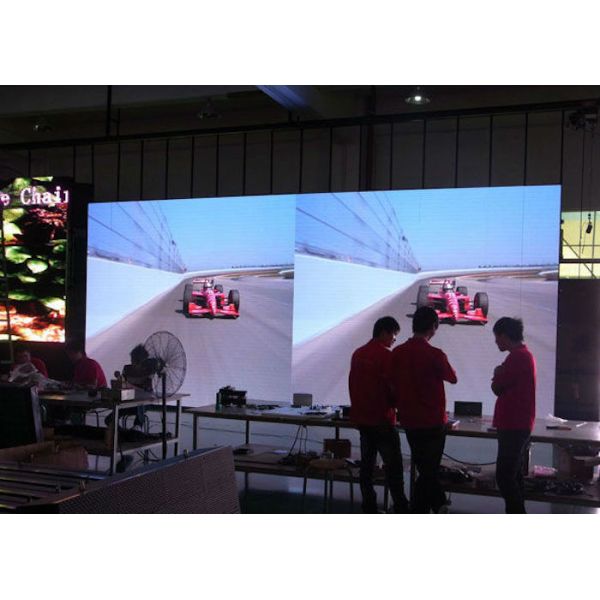

Pictures

80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage

80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage80mm Thin Cabinet Indoor Led Video Wall Magnetic Module For Stage

Parameters:
Brightness nits 1000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet weight kg 8
Cabinet width mm 500
Cabinet height mm 500
Cabinet depth mm 80
Cabinet area sq. m. 0.25
Cabinet material 　 Aluminum
Aspect ratio 　 1:1
Ingress protection (Front/Rear) IP IP40/IP20
Operating temperature range deg. C 0 to 40
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 3.91
Pixel matrix per cabinet 　 128x128
Pixels per cabinet 　 16384
Lines per meter 　 256
Pixels per sq. meter 　 65536
LEDs per sq. meter 　 65536
Recommended minimum viewing distance m 4
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1440
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 600/210
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
