Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen
Specifications
Brand Name :
TBC
Model Number :
D3.91
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
25days
Packaging Details :
Flight Case
Price :
Negotiable
Pixel :
3.91mm
Thickness :
80mm
Cabinet Size :
500x1000mm
Module Size :
250mmx250mm
Contrast :
3000:1
Material :
Die Cast Aluminum
Description

Outdoor P3.91mm Stage Rental LED Display 80mm Thin Cabinet

Application:

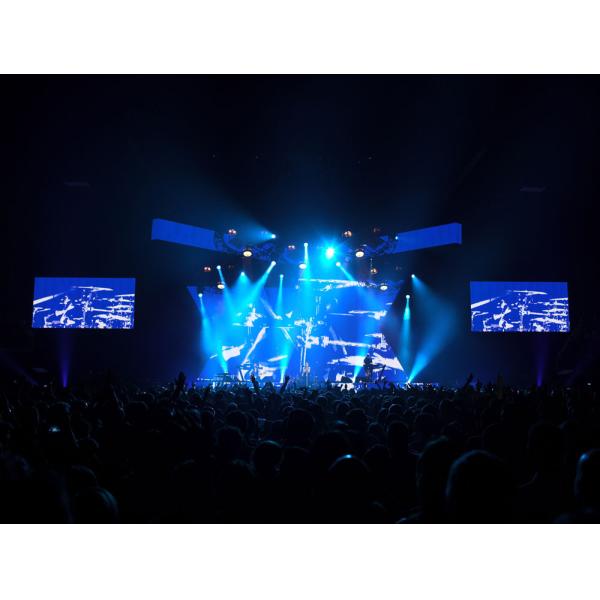

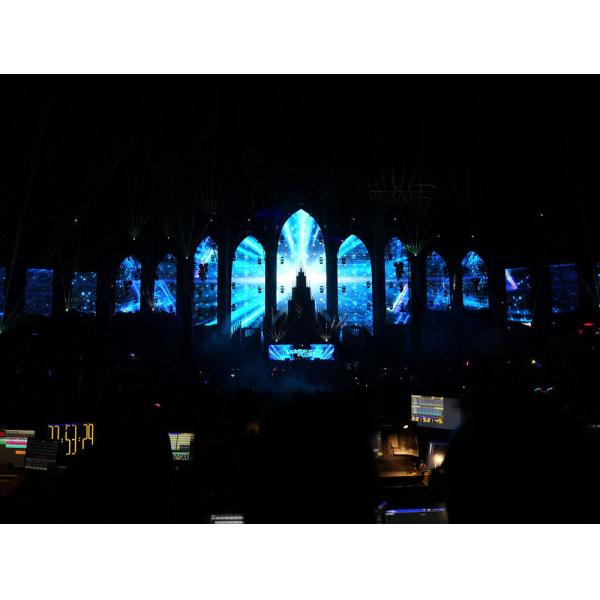

Outdoor P3.91mm Full Color Led Displays are the most popular rental led display we manufacture, annual sales over 10,000sqm. It's frequently used for stage, events, live broadcasting etc.
Features and Advantages:

1.Selection of high quality LED chips, wide angle, good flatness, strong anti-static, slow brightness degradation and high wavelength stability.

2.Standardization of cabinet design makes the same body size suitable for different pixel requirements and the installation of the LED advertising display more convenient. The LED cabinet is thinner and lighter, so that it can save the transportation costs.

3. The unique design of the waterproof cabinet complies with IP65 protection standard, so the LED display can be directly installed and used outdoor, with the fanless power supply and the cabinet natural convection heat dissipation, saving lots of electricity and ensuring security and Environmental protection

Pictures

Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen

Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen

Outdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led ScreenOutdoor Led Display Boards 3.91mm , Thin Waterproof Full Color Led Screen

Parameters:
Brightness nits 4200
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 14
Cabinet width mm 500
Cabinet height mm 1000
Cabinet depth mm 80
Cabinet area sq. m. 0.50
Cabinet material 　 Aluminum
Aspect ratio 　 1:2
Ingress protection (Front/Rear) IP IP65/IP54
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 3.906
Pixel matrix per cabinet 　 128x256
Pixels per cabinet 　 32768
Lines per meter 　 256
Pixels per sq. meter 　 65544
LEDs per sq. meter 　 65544
Recommended minimum viewing distance m 4
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 800/280
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
