Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen
Specifications
Brand Name :
TBC
Model Number :
D4.81
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Price :
Negotiable
Pixel :
4.81mm
Weight :
14kg
Cabinet Size :
500x1000mm
Refresh :
1920Hz
Contrast :
3000:1
Material :
Die Cast Aluminum
Description

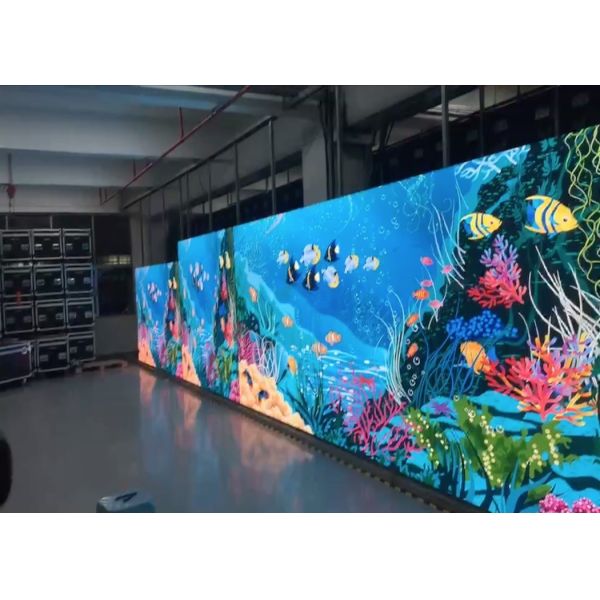

Indoor P4.81mm Full Color Led Display with 1920Hz High Refresh Rate

Application:

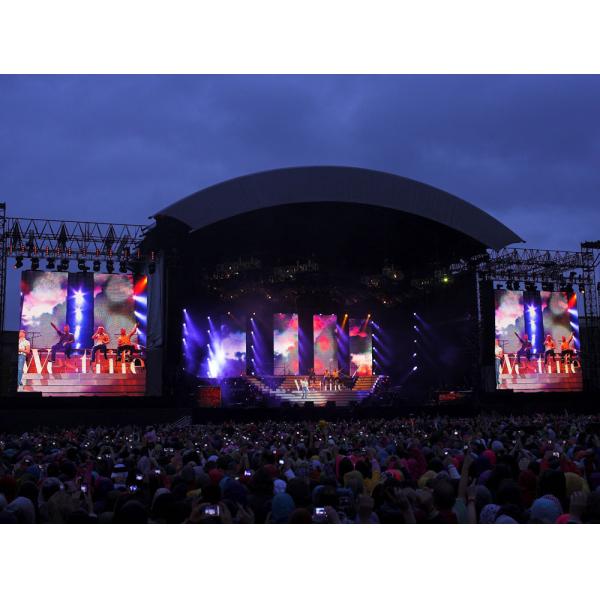

Indoor P4.81mm Stage Rental LED Displays are the most welcomed indoor rental led display, widely used for stage, events, live broadcasting etc.
Features and Advantages:

Pop Lock & Play

  • Easy to install and dismantle
  • Latch mechanism to fine adjust gaps
  • Curving bracket (with additional purchase)
  • Vertically hang up to 16 panels

No Sweat Service

  • 100% front or rear serviceable
  • Magnetic modular design
  • Ribbon-free connector

Safe And Reliable

  • With dual power supply
  • Redundant data
  • Made tough for mobile

Pictures

Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen

Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen

Indoor Led Display Board P4.81mm , Big Advertising Led Backdrop Screen

Parameters:
Brightness nits 1000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 11
Cabinet width mm 500
Cabinet height mm 1000
Cabinet depth mm 80
Cabinet area sq. m. 0.50
Cabinet material 　 Aluminum
Aspect ratio 　 1:2
Ingress protection (Front/Rear) IP IP40/IP20
Operating temperature range deg. C 0 to 40
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 4.808
Pixel matrix per cabinet 　 104x208
Pixels per cabinet 　 21321
Lines per meter 　 207
Pixels per sq. meter 　 43258
LEDs per sq. meter 　 43258
Recommended minimum viewing distance m 5
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1440
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 710/240
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
