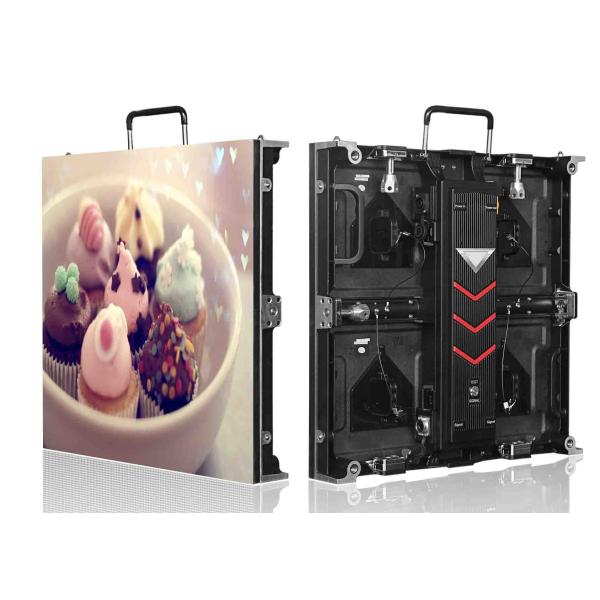

3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate
Specifications
Brand Name :
TBC
Model Number :
D3.2
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Price :
Negotiable
Pixel :
3.2mm
Weight :
8kg
Cabinet Size :
500x500mm
Refresh :
3840Hz
Contrast :
3000:1
Material :
Die Cast Aluminum
Description

Outdoor P3.2mm Full Color Rental Led Video Wall 3840Hz High Refresh Rate High End Stage Rental Events

Application:
Outdoor P3.2mm Full Color Rental Led Video Wall 3840Hz High Refresh Rate are the most welcomed product for high end rental market, unique design, great color performance plus stability, making it the perfect choice for high profile events.
Available in 2.6mm, 2.9mm and 3.2mm
Features and Advantages:


Designed For Stage

  • Easy to install and dismantle
  • Quickly change power and data core without tools
  • Front or rear serviceable with universal modules

Perfect Clear Picture

  • Higher grayscale at lower brightness
  • Perfect images, sharp color and brightness uniformity
  • Flicker free 3840Hz refresh rate

Curved Design Optional

  • Curving brackets are available:
  • Unlimited concave curves
  • Up to 5° convex curves

Pictures

3.2mm High End Stage Rental Led Video Display Panels 3840hz High Refresh Rate

Parameters:
Brightness nits 4000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 9
Cabinet width mm 500
Cabinet height mm 500
Cabinet depth mm 90
Cabinet area sq. m. 0.25
Cabinet material 　 Aluminum
Aspect ratio 　 1:1
Ingress protection (Front/Rear) IP IP65/IP54
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 3.205
Pixel matrix per cabinet 　 156x156
Pixels per cabinet 　 24336
Lines per meter 　 312
Pixels per sq. meter 　 97351
LEDs per sq. meter 　 97351
Recommended minimum viewing distance m 3
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 940/320
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
