Specifications
Brand Name :
TBC
Model Number :
D391
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
Packaging Details :
wooden box
Location :
Vietnam
Application :
Event Exhibition
Pixel pitch :
3.91mm
Dimension :
500x500mm
Weight :
8kg
Material :
Die casting aluminum
Price :
Negotiable
Description

Vietnam Wedding Exhibition Work with TBC D Series Indoor High Refresh Rate High Greyscale

Application:
The wedding exhibition was held every year, this time many different lighting and decoration were applied. TBC D series is one of them, serves as main display on the stage.
Features and Advantages:

One person can do assembling and disassembly

Handle and fast lock design enable quick and convenient assembling and disassembly, one man is one working group.

One person quick maintenance

Light weight cabinet, 8kg per panel

Front service design, allows module service from the front.

One panel available for +/- 5% concave and convex curves

Patented high precision curving blocks support 0-10° concave curve and 0 -5°
convex curve(customized).

Parameters:
Brightness nits 4200
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet weight kg 9
Cabinet width mm 500
Cabinet height mm 500
Cabinet depth mm 80
Cabinet area sq. m. 0.25
Cabinet material 　 Aluminum
Aspect ratio 　 1:1
Ingress protection (Front/Rear) IP IP65/IP43
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 4.81
Pixel matrix per cabinet 　 104x104
Pixels per cabinet 　 10816
Lines per meter 　 208
Pixels per sq. meter 　 43264
LEDs per sq. meter 　 43264
Recommended minimum viewing distance m 5
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1440
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 750/260
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Pictures

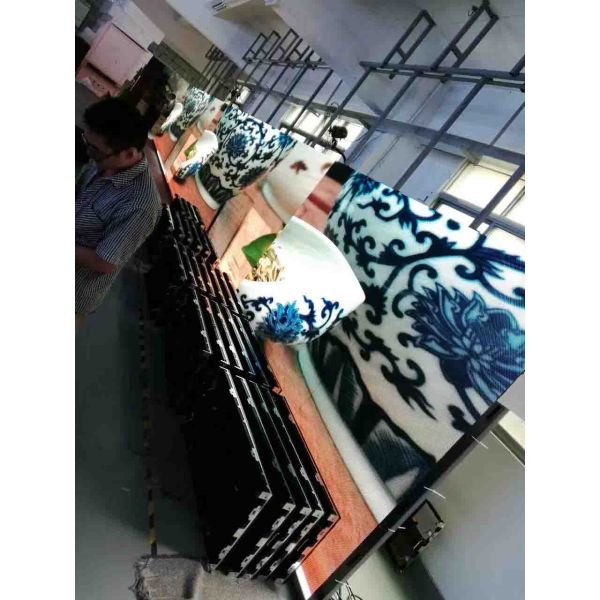

Vietnam Wedding Exhibition Work with TBC D Series Indoor High Refresh Rate High Greyscale
