Specifications
Brand Name :
TBC
Model Number :
S10
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
Packaging Details :
Wooden box
Location :
Chile
Product :
Outdoor led billboard
Pixel Pitch :
10mm
Service type :
Front servicable
Weight :
48kg/sqm
Thickness :
100mm
Price :
Negotiable
Description

S Series P8 for Chile Hotel Commercial Use High Visibility Clear Picture High Greyscale

Introduction:

With LED technology growing and spreading, LED display has become a more popular way to promote hotels. Recently we finished a new LED display in Valepasso, Chile, which was installed on the front gate of a hotel. The E series P8 was used for this project, with width 12m and height 3m, it certainly adds more color and attention to the hotel itself.
Features and Advantages:

Download S series brochure.pdf

1. Front service module, 5 seconds to take module off, easy maintenance, save labor and time cost
2. Durable quality aluminum based module, fire proof, UV proof and dust proof;
3. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation and harsh weather
4. Military-grade connectors of the power and signal to ensure stable connection and high reliability;
5. Ip65 protection grade, durable cabinet design make the LED screen durable in all weather outdoor environments.

Parameters

Brightness nits 6000-7000nits
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet weight kg 48
Cabinet width mm 960
Cabinet height mm 960
Cabinet depth mm 100
Cabinet area sq. m. 0.92
Cabinet material 　 Cold Steel
Aspect ratio 　 1:1
Ingress protection (Front/Rear) IP IP68
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 10.
Pixel matrix per cabinet 　 96x96
Pixels per cabinet 　 9216
Lines per meter 　 100
Pixels per sq. meter 　 10000
LEDs per sq. meter 　 10000
Recommended minimum viewing distance m 10
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 500/200
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

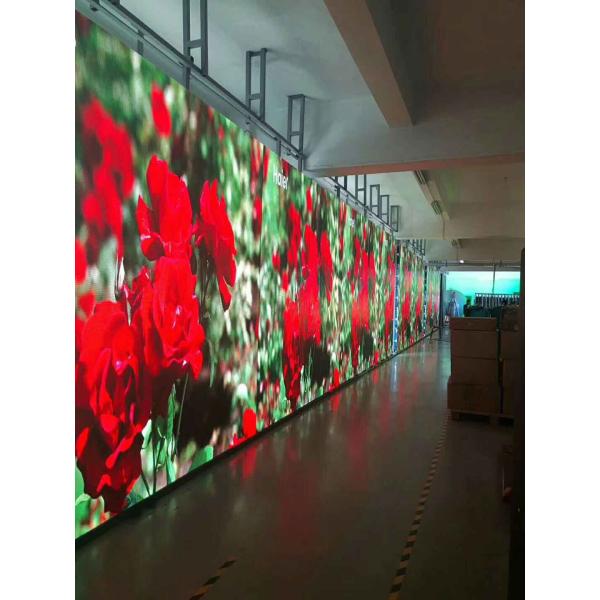

Pictures:

S Series P8 for Chile Hotel Commercial Use High Visibility Clear Picture High Greyscale
