Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
Specifications
Brand Name :
TBC
Model Number :
E10
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
Packaging Details :
Wooden Box
Location :
Spain
Product :
Outdoor Led Video Wall
Pixel :
10mm
Module :
320x320mm
Material :
Aluminum
IP Grade :
IP68
Price :
Negotiable
Description

Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection

Application:

This beautiful LED video wall was totally 100sqm in 10mm, it can fully satisfy the need of Spain national stadium, a very typical application of TBC E series
Features and Advantages:

1. Front service module, aluminum module design, durable and reliable
2. IP rating IP68, capable of withstanding any weather condition
3. High contrast ratio 3000:1, vivid color and clarity
4. Wireless control available, no need computer standing by
5. Side handle for easy carrying and assemble job

6. UV Proof, fire proof

Parameters

Brightness nits 6000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 48
Cabinet width mm 960
Cabinet height mm 960
Cabinet depth mm 100
Cabinet area sq. m. 0.26
Cabinet material 　 Cold Steel
Aspect ratio 　 1:1
Ingress protection (Front/Rear) IP IP68
Operating temperature range deg. C 0 to 40
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 10
Pixel matrix per cabinet 　 96x96
Pixels per cabinet 　 65536
Lines per meter 　 500
Pixels per sq. meter 　 250000
LEDs per sq. meter 　 250000
Recommended minimum viewing distance m 2
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 640/220
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

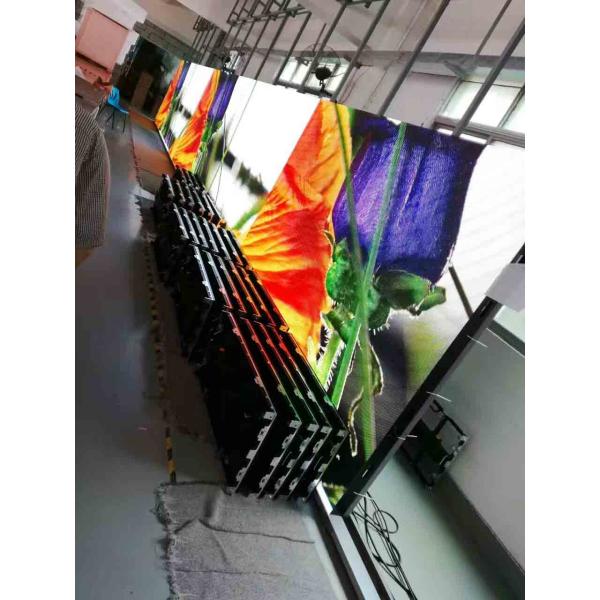

Pictures:

Spanish National Stadium Outdoor High Brightness LED Video Wall With IP68 Ultra protection
