Specifications
Brand Name :
TBC
Model Number :
E8
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
Packaging Details :
Wooden box
Location :
South Africa
Brightness :
6000-7000 nits
Cabinet :
Aluminum
Module :
320x320mm
IP Grade :
IP68
Price :
Negotiable
Description

South Africa Cape Town Outdoor P8 LED Display Waterproof IP68 High Brightness Low Power Consumption

Introduction:

Installed by a local travel agency for information broadcast
  • Deliver your message to target audiences effectively
  • Special SMD technology create highly impressive visual experience for your advertisements
  • Remotely control and monitoring available
  • Higher brightness with lower power consumption

Features and Advantages:

Download S series brochure.pdf

1. Front service module, 5 seconds to take module off, easy maintenance;
2. Aluminum based module, fire proof, UV proof and dust proof;
3. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation;
4. Aircraft-grade connectors of the power and signal to ensure stable connection and high reliability;
5. Ip65 protection grade, durable cabinet design make the LED screen durable in all weather outdoor environments.

Parameters

Brightness nits 6000-7000nits
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet weight kg 48
Cabinet width mm 960
Cabinet height mm 960
Cabinet depth mm 100
Cabinet area sq. m. 0.92
Cabinet material 　 Cold Steel
Aspect ratio 　 1:1
Ingress protection (Front/Rear) IP IP68
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 8
Pixel matrix per cabinet 　 120x120
Pixels per cabinet 　 9216
Lines per meter 　 100
Pixels per sq. meter 　 10000
LEDs per sq. meter 　 10000
Recommended minimum viewing distance m 10
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 500/200
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

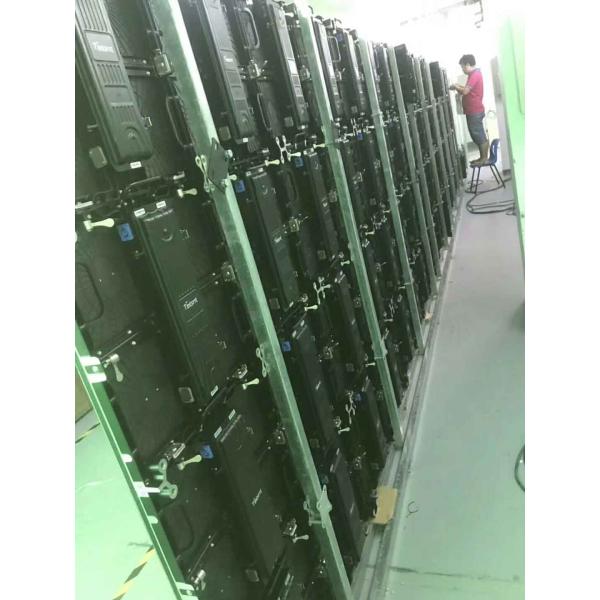

Pictures:
