Specifications
Brand Name :
TBC
Model Number :
D4.81
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Price :
Negotiable
Pixel :
4.81mm
Weight :
8kg
Cabinet Size :
500x500mm
Refresh :
3840Hz
Service :
Front Magnet
Resolution :
4K
Description

500 X 500mm Stage Rental LED Display

Indoor Slim Die Casting Aluminum Cabinet 4.81mm Stage HD Led Video Wall 500 X 500mm With Nation Star Gold Wire Led

Flicker Free 4.81mm Stage HD Led Video Wall 500 X 500mm Slim Die Casting Aluminum Cabinet

Application:
Flicker Free 4.81mm Stage HD Led Video Wall 500 X 500mm Slim Die Casting Aluminum Cabinet are the most welcomed indoor rental led display, widely used for stage, events, live broadcasting etc.
Features and Advantages:

Easy installation and disassembly

Smart handle deisgn and fast lock design enable fast and convenient installation and disassembly, one person can handle it all.

Front Magnetic maintenance

Light weight cabinet, 8kg per panel, easy to handle

Front service design, easy maintenance and service.

Concave and convex curves as you wish, no limit to your design

Patented high precision curving blocks support 0-10° concave curve and 0 -5°
convex curve(customized).

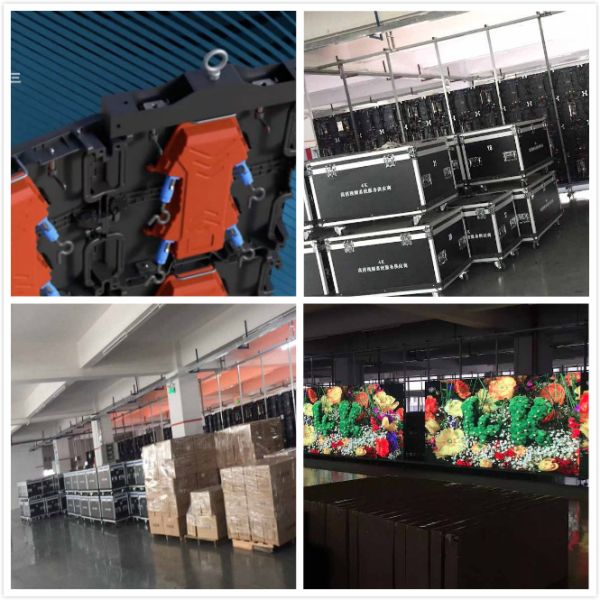

Pictures

500 X 500mm Stage Rental LED Display

Parameters:
Brightness nits 1000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 11
Cabinet width mm 500
Cabinet height mm 1000
Cabinet depth mm 80
Cabinet area sq. m. 0.50
Cabinet material   Aluminum
Aspect ratio   1:2
Ingress protection (Front/Rear) IP IP40/IP20
Operating temperature range deg. C 0 to 40
Operating humidity range HR 10% to 90%
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 4.808
Pixel matrix per cabinet   104x208
Pixels per cabinet   21321
Lines per meter   207
Pixels per sq. meter   43258
LEDs per sq. meter   43258
Recommended minimum viewing distance m 5
Colours   281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1440
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 710/240
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity   <5%
Blind spot rate   <0.0001
Earth leakage current mA <2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor)   VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection   CAT6 cable/Fiber
Operating system   Windows(XP/Vista/7/8/10)
Control distance   Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
