Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Specifications
Brand Name :
TBC LED
Model Number :
P4mm
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
10 days
Packaging Details :
Plywood box
Type :
LOGO LED Display HD
Pixel Pitch :
P4mm
Cabinet Size :
1200x60mm
Protection Level :
IP65
Weight :
17kg
Brightness :
5000nits
Maintenance Method :
Front
Publishing Method :
WiFi
Description

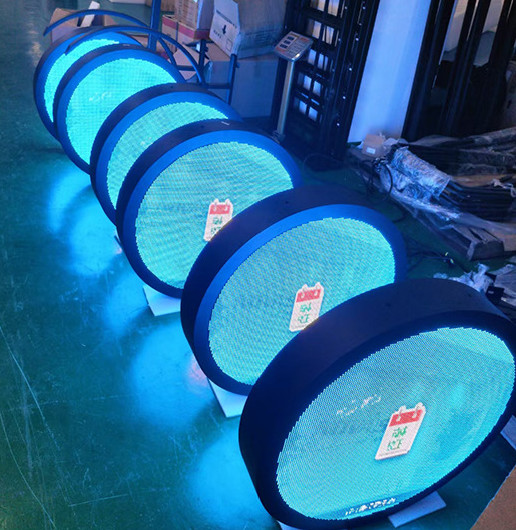

Logo HD LED Display Circular Advertising Screen Diameter 60CM Outdoor P4 Corporate Brand Logo Store Recruit Round Screen


Logo LED Display with its unique shape and design, brings a new visual experience to the audience. This screen through the special shape and installation method, to achieve a unique display effect and interaction. In the exhibition, Logo LED Display is often used for creative display, art installation and other occasions, through its unique visual effects and interaction, attracting a large number of audience's attention and love. The emergence of the round pie screen not only enriches the product form of the LED display, but also brings more possibilities and creative space for the display design.

Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM

Parameters of Logo LED Display

Item No. Item Product parameters
1 Pixel dots 1 red 1 green 1 blue LED (SMD1820)
2 Pixel spacing 4mm
3 Mold size 300mm * 300mm (finished product diameter 600mm)
4 Modal resolution 300mm * 300mm (finished product diameter 600mm)
5 LED chips San'an
6 LED packaging forms Nationstar
7 Indicating density 62500 dots/m2
8 Maximum White Balance Brightness ≥5000cd/㎡
9 Grayscale Classification 16bits
10 Color Indication ≥16.7M species,with a maximum of 2.81 million species
11 Out of control dots ≤One thousandth
12 The Best Viewing Distance ≥4M
13 Visual angles Horizontal:≥120°Vertical:≥120°
14 Device Movement 1/8 Scan
15 Brightness Adjustment 256 level software adjustment,with 16 level automatic adjustment
16 Exchange frame rate ≥60HZ
17 Refresh rate 3840HZ
18 Control Methods Nova TCC70 Asynchronous System
19 Protection level IP65
20 Screen lifespan ≥100,000 hours
21 Working hours ＞72 hours
22 Mean Time Between Failures ＞1,000 hours
23 Work electric jade AC220V±15%,50Hz±2 Hz
24

Environmental temperature

and humidity

Temperature:-20℃～+60℃

Humidity:10%-95%
25

Power Consumption

(maximum/average)

 About 400W per Unit
26 Flatness Image Interval≤0.5mm；Mold splicing gap≤0.5mm
27 Maintenance Method Front
28 Screen weight ≤17Kg/Unit
29 External Round
30 Switching Mode Power Supply 5V/40A
31 Publishing Method WiFi
Features of Logo LED Display

1. Hd clear full color display
HD display bring you with the real degree of visual experience, excellent picture layer and sharp color to give you a real degree of visual enjoyment!

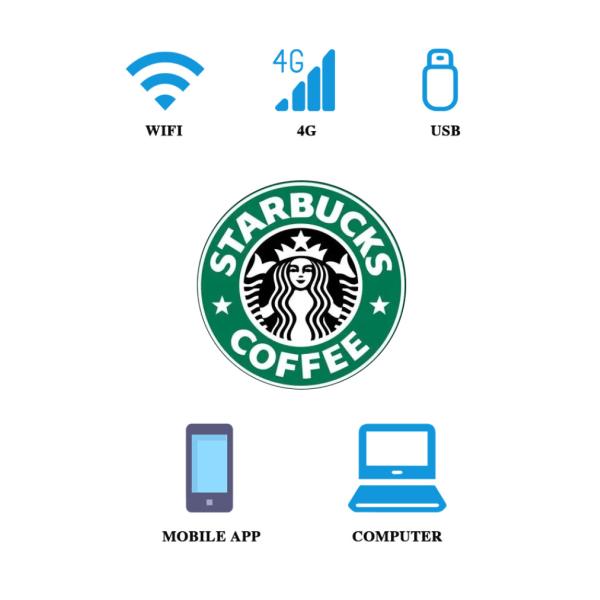

2. Exclusive system with Mobile WIFI control
Exclusive system, five languages, support Apple Android system, comes with a dozen kinds of material templates, mobile APP one click upload pictures and videos, simple and convenient
3.The selection of high quality light
Select high light beads, the color of the beads is the same, the luminous Angle is large, the lamp beads have a life of 100,000 hours, energy saving and can play the lamp beads 24 hours a day without heating, so the highlight display
4. Use Outdoor LED module, waterproof and sun block,anti-glare
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM

Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM

Application of Logo LED Display

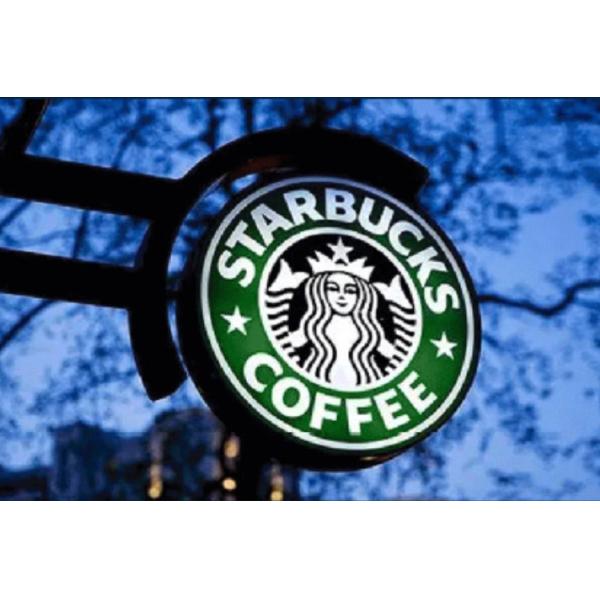

1. Commercial advertising and display
Logo LED Display has a significant application in the field of commercial advertising and product display. Its 360-degree viewing Angle and unique circular design make advertising messages more effective in attracting the attention of customers and improving business results. For example, in high-traffic areas such as shopping malls, pedestrian streets and subway stations, Logo LED Display play content such as dynamic advertising and brand promotion.

2. Decoration and interaction of entertainment venues
In entertainment venues such as bars, KTV, etc., Logo LED Display is not only used as a background wall or stage decoration, but also can create a strong entertainment atmosphere by playing dynamic music videos and light and shadow effects to enhance the experience of customers.

3.Public information release
In public places such as airports, stations and squares, Logo LED Display can be used to display important information such as real-time traffic information, weather forecasts and news summaries to help people get the information they need faster. At the same time, it can also be used for business promotion, display around shopping, travel and other service information.

Outdoor P4mm HD LED Display Circular Advertising Screen with Front Maintenance Method Diameter 60CM
