Multimedia Box Functional Accessories Voice Module 2-in/8-out
Multimedia Box Functional Accessories Voice Module 2-in/8-out
Multimedia Box Functional Accessories Voice Module 2-in/8-out
Multimedia Box Functional Accessories Voice Module 2-in/8-out
Specifications
Brand Name :
TC
Model Number :
TC-
Certification :
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568.2-D
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Humidity Range :
10% to 90% non-condensing
Splice Tray :
Up to the most 16 splices
Application Standards :
YD/T926.3; YD/T778-2011; TIA/EIA568
Optical Interface :
FC, ST, SC
Standard :
SNMP, TCP/IP
Socket Conductive Parts :
Phosphor Copper
Base Size :
252×114×75 mm
Space Utilization :
1U
Smart Battery :
Yes
Flammability :
GB/T 5169.11
Error Rate :
＜ 10-9
Axial Tension :
More than 250 N
Insertion Loss :
≤ 0.35dB (repeatability included)
Coil Material :
Brass forging aluminum fin
Video Interface :
PCM Coding
Description

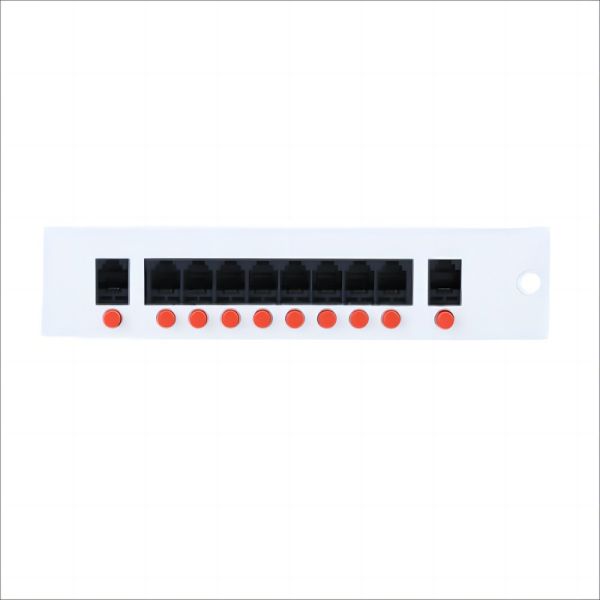

Multimedia Box Functional Accessories Voice Module 2-in/8-out

Product Application
Voice Module is mainly used in TC's household multimedia boxes, providing various branch ports for voice cabling.
Product Features
Non-confidential voice module provides two 1-in/4-out RJ11 ports. All the five ports are connected in parallel, and combined into 1 number/8 extensions or 2 numbers/4 extensions.
Confidential voice module provides 1-in/8-out or 2-in/8-out RJ11 ports, through which the inside line can be switched to any outside line by touching a single button. No cross-talk occurs among the extensions, and conversations are relatively confidential, which ensures one-to-one communication and no interference from the third party. That demonstrates that phone calls are either in a straight line or in the extensions among which the calls can be freely switched. When two phone lines are connected, the output port ratio of phone 1 and phone 2 can be freely switched regardless of
positive and negative poles due to an automatic polarity conversion circuit inside.
These two voice modules have high density ABS outer housing featuring high gloss, good flexibility, impact resistance and aging resistance. The FR4 high frequency PCB ensures low attenuation in signal transmission.
Multimedia Box Functional Accessories Voice Module 2-in/8-outMultimedia Box Functional Accessories Voice Module 2-in/8-out
