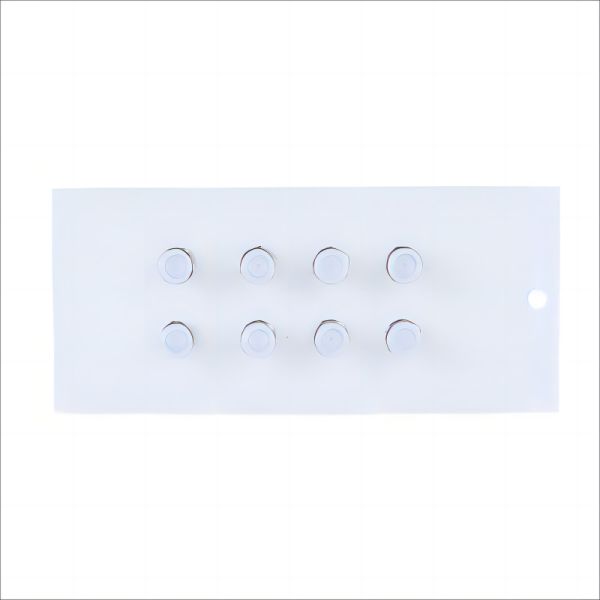

Multimedia Box Functional Accessories 1-in/4-out Cable TV Module
Multimedia Box Functional Accessories 1-in/4-out Cable TV Module
Multimedia Box Functional Accessories 1-in/4-out Cable TV Module
Multimedia Box Functional Accessories 1-in/4-out Cable TV Module
Specifications
Brand Name :
TC
Model Number :
HB-TV-
Certification :
Above GY/T 137-1999 Standards
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Rack Unit :
1-4：1U; 1-7：2
Life Cycle :
≥ 750 times
Frequency Band Range :
5MHZ-1000MHZ
Distribution Attenuation :
1000MHZ ≤ 5.5dB
Mutual Isolation :
1000MHZ ≥ 22dB
Reflection Loss :
1000MHZ ≥ 14dB
Description

Multimedia Box Functional Accessories 1-in/4-out Cable TV Module

Product Application
Cable TV Module is mainly used in TC's household multimedia boxes, providing 1-in/4-out and 1-in/7-out (bi-directional) for Cable TV, and exceeding all parameters specified in GY/T137-1999 standards.
Product Features
Cable TV Module provides one 1 IN port and multiple OUT ports. Signals are evenly distributed in each port, and no interference occurs among OUT ports. The input and output impedance is at 75 ohms respectively, not causing signal reflection or attenuation. The outer housing uses high density ABS material featuring high gloss, good flexibility, impact resistance and aging resistance.
Specifications
Size 1-4:173.5×38.5×29mm
1-7:173.5×77×29mm
Rack Unit 1-4:1U; 1-7:2
Life Cycle ≥ 750 times
Frequency Band Range 5MHZ-1000MHZ
Distribution Attenuation 1000MHZ ≤ 5.5dB
Mutual Isolation 1000MHZ ≥ 22dB
Reflection Loss 1000MHZ ≥ 14dB
Shielded Attenuation ≥ 100dB
AC Signal Modulation Index ≥ 66dB
Port Current-carrying Capability 10A
Performance At and Above GY/T 137-1999 Standards
