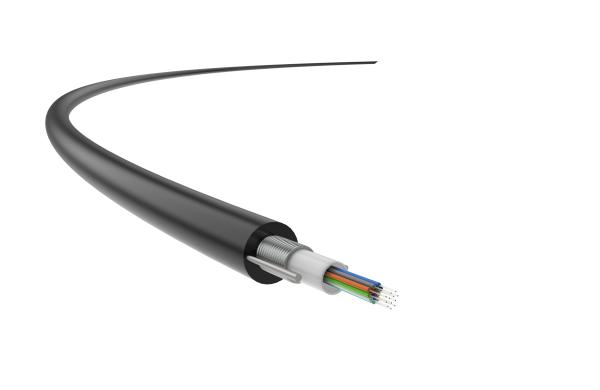

62.5um Aluminum Armored Fiber Optic Cable Loose Tube Single Mode Fiber
62.5um Aluminum Armored Fiber Optic Cable Loose Tube Single Mode Fiber
Specifications
Brand Name :
TC
Model Number :
GYTA
Certification :
UL, RoSH, REACH, CE
Place of Origin :
China
Application :
Outdoor
Fiber Type :
Singlemode/Multimode
Fiber No. :
2-144
Jacket Thickness :
≥ 1.50
Thickness of Loose Tube :
≥ 0.28
Aluminum Belt :
0.20±0.01
Bend Radius, mm :
Static: 10D; Dynamic: 20D
Standards Met :
YD/T 901, IEC 60793, SO/IEC11801
Description

Aluminum Armored Fiber Optic Cable, Stranded Loose Tube Fiber Optic Cable Application

Aluminum armored fiber optic cable, stranded loose tube fiber optic cable is mainly used for outdoor fiber connection as well as building backbone conduit and link bridge connection.

Inside the optical fiber aluminum armored cable, 250µm (singlemode or multimode) fibers are positioned in loose tubes made of high modulus polyester material, filled with water-resistant compounds. The optical fiber cable is centered by a metal strength member. For some optical fiber cables with multiple cores, a PE layer should be added outside. Loose tubes (and the fillers) are stranded around the strength member into a compact and circular cable core inside which is filled with water-resistant components. APL armor is longitudinally applied before a polyethylene (PE) jacket is extruded over it.

Product Features

  • Stranded structure is designed for excellent mechanical performance and temperature performance;
  • The cable has 62.5/125 singlemode/multimode, 50/125 multimode, 4-192 cores, and many other specifications available;
  • The loose tube material has good resistance to hydrolysis performance and high strength;
  • The loose tube is identified by color for fast and correct construction;
  • Compact structure is required to prevent contraction of the loose tube;
  • There is a central strength member made of a single steel wire;
  • Its outer jacket is made of aluminum-PE material;
  • It provides a high crush resistance coupled with excellent bending performance so as to avoid the impact from the outside environments;
  • The cable meets the industry-regulated requirements of optical transmission, mechanical protection and flammability.

Application Standards

YD/T 901, IEC 60793, SO/IEC11801

Color Code
(2-12 core) 		1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown Slate White Red Black Yellow Violet Rose Aqua

Flame
resistance		 Flammability standard for single wire: GB/T 18380.12-
2008		 Flammability standard for bunched wires: GB/T 18380.35-
2008

Jacket: Peel off 50mm-long cable, place the empty jacket horizontally and burn for 4-5 seconds, using alcohol lamp; after the fire source is taken away, it extinguishes less than 2 seconds;
Aramid yarn: it is burnt into powder and extinguishes right after the fire source is taken away

Technical Details

Optical Properties
Type of Optical
Fiber		 Attenuation Injection
Bandwidth (OFL)		 Effective Modal
Bandwidth		 10 Ethernet Link
Length SX		 Min. Bend Radius
(mm)
1310nm/1550nm 850/1300nm 850nm 850nm 　
Typical Value (dB/km) Max. Value (dB/km) MHz·km MHz·km 　 　
SM 9/125 0.36/0.22 0.4/0.3 / / / 16
　 850nm/1300nm 　 　 　 　
　 Typical Value
(dB/km)		 Max. Value
(dB/km)		 　 　 　 　
MM62.5/125 OM1 3.0/1.0 3.5/1.5 ≥ 200/500 / / 30
MM50/125 OM2 3.0/1.0 3.5/1.5 ≥ 500/500 / ≥ 150 30
MM50/125 OM3 3.0/1.0 3.5/1.5 ≥ 1500/500 ≥ 2000 ≥ 300 30
MM50/125 OM4 3.0/1.0 3.5/1.5 ≥ 3500/500 ≥ 4700 ≥ 550 30

Structure Specifications
Quantity of Cores Cores of Loose Tube Strength Member Outer Diameter of Loose Tube Thickness of Loose Tube Aluminum Belt Thickness of Jacket (mm) Outer jacket of Optical Fiber (mm)
2～30 6 1.30*1±0.1 ≥1.60 ≥0.28 0.20±0.01 ≥1.50 8.3±0.3
32～36 6 1.60*1±0.1 ≥1.60 ≥0.28 0.20±0.01 ≥1.50 8.6±0.3
38～60 12 1.50*1±0.1 ≥1.60 ≥0.28 0.20±0.01 ≥1.50 8.8±0.3
72 12 1.80*1±0.1 ≥1.60 ≥0.28 0.20±0.01 ≥1.50 9.2±0.3
96 12 2.0/3.3*1±0.2 ≥1.60 ≥0.28 0.20±0.01 ≥1.50 10.8±0.3
120 12 2.0/4.4*1±0.2 ≥1.60 ≥0.28 0.22±0.01 ≥1.50 12.1±0.3
144 12 2.0/5.8*1±0.2 ≥1.60 ≥0.28 0.22±0.01 ≥1.50 13.5±0.3

Mechanical Properties
No. Name Requirements
1 Allowed Tensile Strength, N Short Term 1500
Long Term 600
2 Allowed Crush Resistance, N/100mm Short Term 1000
Long Term 300
3 Bend Radius, mm Static 10D
Dynamic 20D
