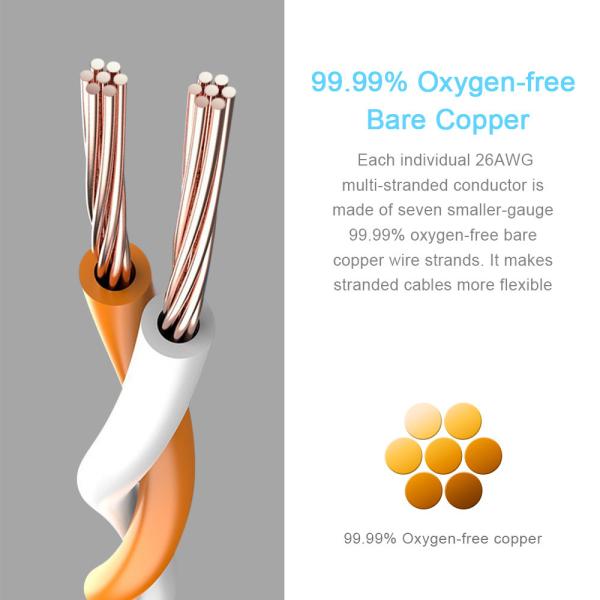

CAT6A Patch Cord, FTP, LSZH, 1m RJ45 Patch Cord, 26AWG Stranded Patch Cord Applications

Magic series, RJ45 Composite Patch Cord provides signal transmission in telecommunications cabling, such as data, voice, audio, and images. When integrated with copper cables and jacks, it helps form the transmission channel for the structured cabling system and connects the information inlet/outlet and active devices (switches, computers, etc.).

TC's Magic series composite patch cord can be categorized as standard or ultrafine, including, but not limited to, high-performance general patch cord, patch cord with pull rod, patch cord with lock, and matched port lock.

The Cat6/Cat6a copper patch cord meets and even exceeds IEC 61935-2 standards. With bandwidth up to 350MHz (for Cat6 patch cord) and 600MHz (for Cat6a patch cord), coupled with Cat6/Cat6a links, it supports Class D/E/EA standard (for Cat6a patch cord) applications as well as the Ethernet applications, such as 10G Base-T, 5G Base-T, 2.5G Base-T, 1G Base-T, 1G Base-TX, and 100 Base-T. It also supports enhanced Power Over Ethernet (POE+) under IEEE 802.3at.

TC Patch Cord Features

• Magic series composite patch cord introduces PC & TPU molding technology in both outer housing and boot. Hardness in front and softness at the back ensure the minimum bending radius.
• General patch cord houses RJ45 ports of different depths and its bending clip helps maintain and manage LAN cables.

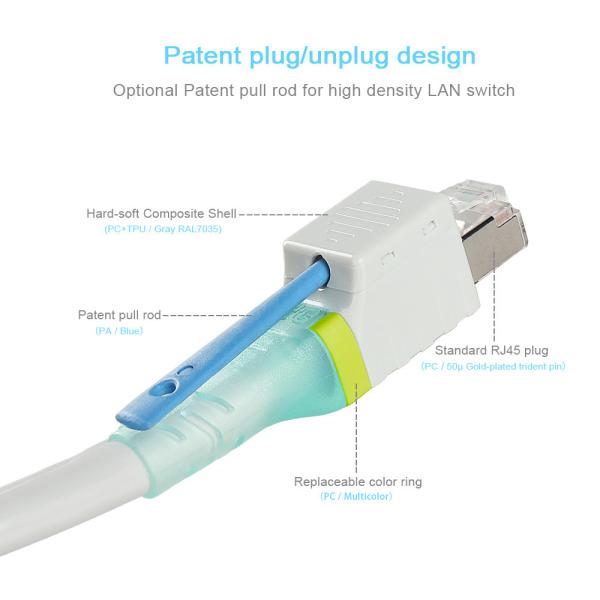

• The patch cord with the pull rod has a standard RJ45 plug and a patent pull rod which unlocks quickly and is useful in high-density high-density center environments where there are extremely dense ports.
• The matching port lock manages and protects the unused RJ45 ports, while the patent unlock key integrates the function of unlocking both the patch cord and the port.
• The special interior is designed in a barbed structure for cable stability after installation.

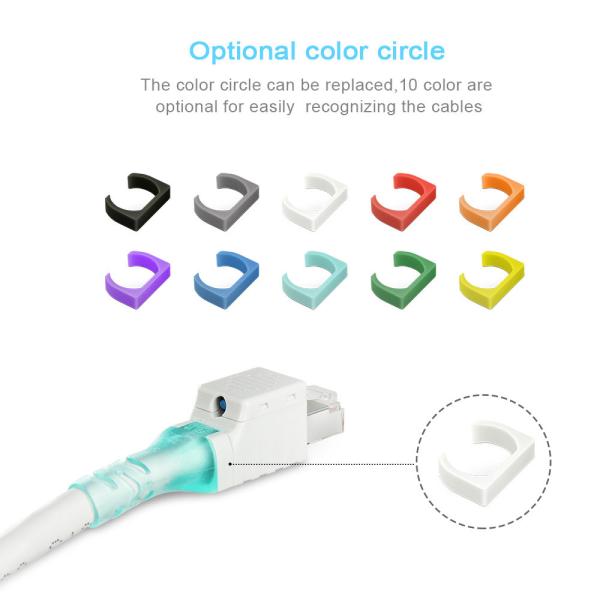

• All patch cords contain detachable color rings for port identification.

Application Standards

GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

Technical Details
