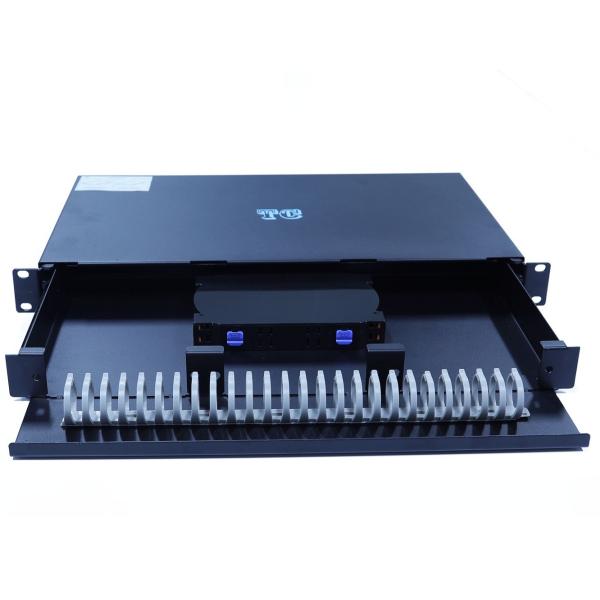

Drawer Type Fiber Optic Patch Panel​ Application

The drawer-type fiber optic patch panel is designed for fusion splicing, connector installation, optical link adjustment, storage of excess pigtails, and optical fiber protection.

The patch panel offers 4-48 ports within a 1U rack coupled with a splice tray with support for optical fiber splicing and installation.

Different installation panels are available to configure with a variety of high-density optical fiber patch panels of different types.

Product Features

All products strictly follow the requirements of YD/T778-2011 "Optical Fiber Distribution Frame":

• TC's optical fiber patch panel supports both rack-mounted and wall-mounted, providing high flexibility for structured cabling;
• Optical fibers are protected all along the route so as to ensure that the bend radius is more than 40mm and the performance is free from the influence of cabling;
• The optical fiber patch panel offers direct and cross connection of indoor/outdoor optical fibers in horizontal and backbone networks;
• The patch panel matches with three optical fiber panels and accommodates 4-48 ports for different demands;
• One patch panel houses more than four optical fiber adapters;
• The clamped modular structure ensures that jacks can be removed from the front and connected directly to pre-terminated fiber optic cables and patch cords, thus speeding up and simplifying installation and maintenance;
• Its built-in splice tray holds up to 48 splices, significantly improving space utilization within the cabinet;
• All steel outer frame guarantees better mechanical performance;
• The outer frame is coated with black mist powder with a clean and beautiful appearance;
• Coating materials and frameworks all meet environmental requirements;
• Optical fiber panels are also coated with powder in coordination with the outer frame;
• The steel patch panel features 1.5 mm thickness, high mechanical strength, and each of its housings withstanding more than 250N vertical static pressure, not easy to deform;
• The patch panel passes the GB/T2423.17-1993 standard salt spray test (within 48 hours), with no visible rust spots on the surface.

Application Standards

YD/T926.3; YD/T778-2011; TIA/EIA568
