Bulk Network Cable CAT6 UTP 24AWG 0.51mm Bare Copper PVC Jacket
Bulk Network Cable CAT6 UTP 24AWG 0.51mm Bare Copper PVC Jacket
Specifications
Brand Name :
TC
Model Number :
UTP-13-6-4PA
Certification :
UL, RoSH, REACH, CE
Place of Origin :
China
MOQ :
50 Boxes
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Packaging Details :
Seaworthy Packing
Type :
Cat 6 U/UTP
Jacket Material :
PVC
Insulation :
HDPE
Conductor Material :
99.99% BC
Conductor OD :
24 AWG
Drain Wire :
No
Rip Cord :
Yes
Standards :
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Description

Cat 6 Network Cable, UTP Cat 6 Cable, Bare Copper, Indoor, 24AWG, 0.51mm​ Application

It can be applied in horizontal cabling, as the portion of a telecommunications cabling system that extends from the work area telecommunications outlet to the patch panels in the distribution room, and in residential cabling that extends from the user telecommunications outlet to the patch panels.

TC's UTP-13/23 series, indoor Cat 6 unshielded cabling system invests in new AWG24 conductors with smaller diameter.

Apart from ease of installation, it has test frequency up to 250MHZ. In the meantime, it supports the latest 5G Base-T applications and Power Over Ethernet (POE/POE+).

Application Standards

GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

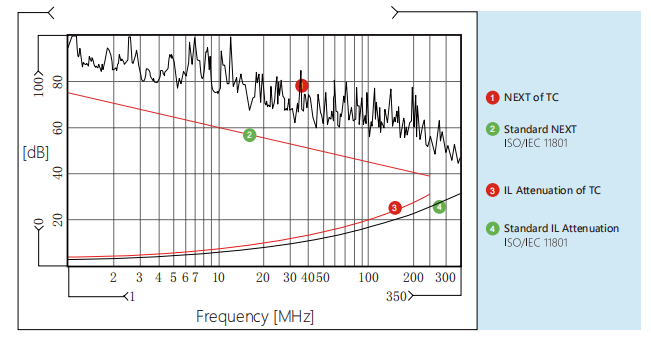

Bulk Network Cable CAT6 UTP 24AWG 0.51mm Bare Copper PVC Jacket

Technical Details

Transmission Performance Cat.6 TC
Frequency (MHz) 4 31.25 62.5 100 200 250 350
IL Attenuation (dB/100M) 3.2 9.5 13.7 17.5 23.1 27.9 31
Near End Crosstalk Attenuation (NEXT, dB) 94.7 63.2 67.3 62.7 63.9 55.8 48.2
NEXT Power and PS NEXT (dB) 78 63.3 67.4 61.2 54.3 52.9 50.9
Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) 77 78.9 84.5 83.8 84.9 70.5 60.9
ACR-F Power and PS ACR-F (dB) 72.8 62.8 72.4 70.9 69.7 65.3 60.3
Return Loss (RL, dB) 32.8 38.6 32.8 38.6 32.5 27.8 25.3

Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.

Physical Specifications
Conductor Size (nominal value)
4×2×0.51 (AWG24)
Outer Diameter of Cable (nominal
value)
6.0mm
Weight (305m, with package,
nominal value)
13kg

Electrical Properties
DC resistance (20℃ )
93.8Ω/km
Earth Capacity ≦ 5.6 nF/100m (@1kHz)
100MHz Characteristic Impedance
100Ω±15Ω
Transverse Conversion Loss (TCL)
≥ 55dB-20×lgf (100-2000MHz)
Delay Skew 25ns/100m
NVP
65%
Power Over Ethernet (POE) Enhanced Power Over Ethernet under IEEE 802.3at

Mechanical Properties
Minimum Bend Radius (dynamic)
24mm
Minimum Bend Radius (static)
48mm
Maximum Installation Tension
100N
Anti-Extrusion Capacity 1000N/10cm
Anti-Shock Capacity ≥ 10 times
Installation Temperature Range -0℃ ~+40℃
Working Temperature Range -20℃ ~+75℃

Flammability (PVC)
PVC Flame Resistance GB/T 18380.12 (IEC 60332-1-2)
Fire Rating CM UL 1581
