Cat 7A Cable, S/FTP Cat 7A Network Cable 23AWG Bare Copper PVC Sheath
Cat 7A Cable, S/FTP Cat 7A Network Cable 23AWG Bare Copper PVC Sheath
Specifications
Brand Name :
TC
Model Number :
S/FTP-11-7A-4P-V1
Certification :
UL, RoSH, REACH, CE
Place of Origin :
China
MOQ :
50 Boxes
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Packaging Details :
Seaworthy Packing
Type :
Cat 7a S/FTP
Conductor Material :
99.99% BC
Conductor OD :
23 AWG
Length :
305 m/box
Braid Shield :
Tinned copper
Insulation :
HDPE
PVC Flame Resistance :
GB/T 18380.12 (IEC 60332-1-2)
Fire Rating CM/CMR :
UL 1581/ UL 1666
Description

Cat 7A Cable, Cat 7A Network Cable, CAT 7A Ethernet Cable Application


Cat 7A, the dual shielded (S/FTP) network cable with 4 pairs, supports 1000MHz of bandwidth, 25G Base-T at more than 30 m (tentatively) and 10G Base-T at 100 m, especially useful for connecting servers, switches, patch panels, and other devices in the data center, as well as high-bandwidth structured cabling systems in smart buildings.

It provides highly confidential transmission in high speed network applications, helps unify the cabling platform of current network applications, and also supports future new applications as well as Power Over Ethernet (POE/POE+) applications, so that all kinds of information from e-mail to multimedia video can be transmitted in the same set of high-speed system.

Product Features


Cat 7A, 8-core S/FTP shielded cable, uses pair shield and overall shield structure, with a separate aluminum foil shield for each pair and an overall tinned copper mesh braided shield.

This optimizes Near End Crosstalk/Far End Crosstalk (NEXT/FEXT) and Alien Near End Crosstalk (ANEXT) performance, thus resulting in a maximum transmission frequency of 1000MHz.

TC's Cat 7A shielded indoor cable is fitting and exceeding the international standards, suitable for high-speed network applications.


Application Standards


GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

Cat 7A Cable, S/FTP Cat 7A Network Cable 23AWG Bare Copper PVC Sheath

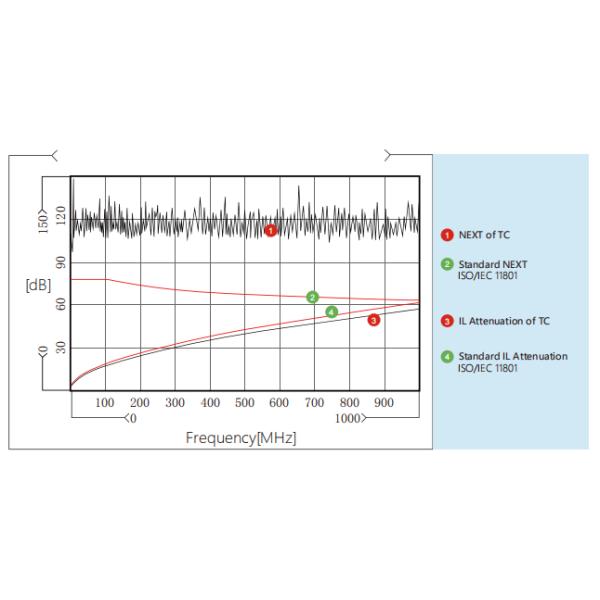

Technical Details

Transmission Performance CATV Cat.7A TC
Frequency (MHz) 4 100 250 600 862 1000 1200
IL Attenuation (dB/100M) 3.7 10.2 14.5 30.6 47.1 57.2 61.2
Near End Crosstalk Attenuation (NEXT, dB) 95 125.2 110.7 108.4 101.3 122.9 105.1
NEXT Power and PS NEXT (dB) 75 75 75 65.2 60.7 57.4 52.2
Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) 78 65.4 59.4 45.8 39.7 35.3 30.2
ACR-F Power and PS ACR-F (dB) 75 62.4 56.4 42.8 36.7 32.3 29.3
Return Loss (RL, dB) 23 23.6 21.5 17.3 17.3 15.1 12.2

Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.

Physical Specifications
Conductor Size (nominal value) 4×2×0.60 (AWG23)
Outer Diameter of Cable (nominal
value)		 7.8mm
Weight (305m, with package,
nominal value)		 19.2kg

Electrical Properties
DC resistance (20℃ )
93.8Ω/km
Earth Capacity ≦ 5.6 nF/100m (@1kHz)
100MHz Characteristic Impedance
100Ω±35Ω
Transverse Conversion Loss (TCL)
≥ 55dB-20×lgf (100-2000MHz)
Delay Skew 25ns/100m
NVP
74%
Power Over Ethernet (POE) Enhanced Power Over Ethernet under IEEE 802.3at

Mechanical Properties
Minimum Bend Radius (dynamic)
31mm
Minimum Bend Radius (static)
62mm
Maximum Installation Tension 100N
Anti-Extrusion Capacity 1000N/10cm
Anti-Shock Capacity ≥ 10 times
Installation Temperature Range -0℃ ~+40℃
Working Temperature Range -20℃ ~+75℃

Flammability (PVC)
PVC Flame Resistance
GB/T 18380.12 (IEC 60332-1-2)
Fire Rating CM
UL 1581/ UL 1666

Flammability (LSZH)
Flame Resistance (of single wire) GB/T 18380.12 (IEC 60332-1-2)
Flame Resistance (of bunched wires) GB/T 18380.35 (IEC 60332-3-24)
Smoke Density GB/T 17651 (IEC 61034-1/-2)
Hazardous Halogen Gas GB/T 17650.1/.2 (IEC 60754-1/-2)
