Bulk Network Cable Cat5e UTP 24AWG 0.48mm Solid BC Outdoor PE Jacket
Bulk Network Cable Cat5e UTP 24AWG 0.48mm Solid BC Outdoor PE Jacket
Specifications
Brand Name :
TC
Model Number :
UTP-35-5E-4P-AF
Certification :
UL, RoSH, REACH, CE
Place of Origin :
China
MOQ :
50 Boxes
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Packaging Details :
Seaworthy Packing
Type :
Cat 5e U/UTP
Outer Jacket :
PE, black
Polyester Belt :
PET
Insulation :
HDPE
Conductor Material :
99.99% BC
Conductor OD :
24 AWG
Rip Cord :
Yes
Drain Wire :
No
Description

Outdoor Cat 5e Cable, Cat 5e Network Cable, UTP Cat 5e Cable Outdoor Application


It can be applied in outdoor horizontal cabling, the portion of the work area (cameras, etc.) telecommunications outlet in the building digital security system.

As a crucial part of digital security system, horizontal cabling calls for higher reliability and compatibility.

TC's UTP-35 series, outdoor security unshielded cabling system has test frequency up to 100MHZ.

In the meantime, it supports 100 Base-T/1G Base-T applications and long range Power Over Ethernet (POE/POE+).

Product Features

TC's 24 AWG, 4-pair, outdoor unshielded security cable has a smaller diameter, optimized to greatly enhance technical indicators, including Attenuation and NEXT.

It meets the requirements of Q TC J1.1-2018 standards by Shanghai Tiancheng Communication Technology Corp. and "Security Cable Standards" (temporarily named, still in the making) by The Ministry of Public Security.

The cable ensures high-speed and stable cable transmission, mainly used for video surveillance, access control, building intercom in building security system.

Application Standards

GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

Bulk Network Cable Cat5e UTP 24AWG 0.48mm Solid BC Outdoor PE Jacket

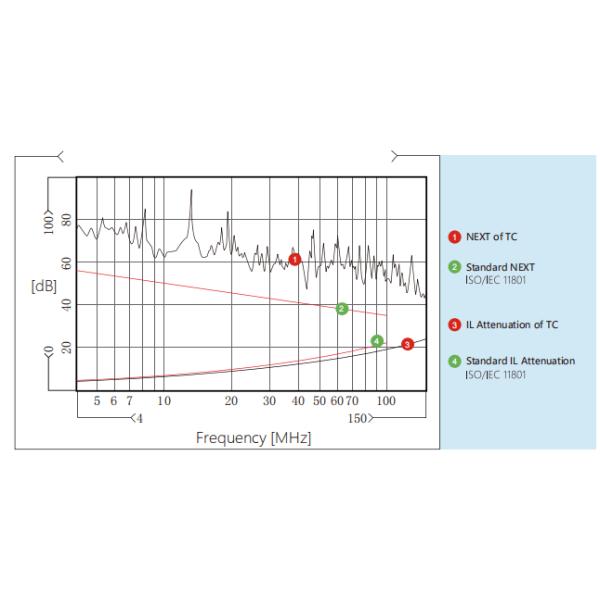

Technical Details

Transmission Performance Cat.5E TC
Frequency (MHz) 4 10 20 31.25 62.5 100 150
IL Attenuation (dB/100M) 3.8 6.1 8.7 10.9 15.5 19.9 22.4
Near End Crosstalk Attenuation (NEXT, dB) 76.5 62.8 64.2 58.5 58.6 51.2 44.8
NEXT Power and PS NEXT (dB) 69 60.3 62.5 54.1 49.1 46.9 44.3
Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) 75 84.5 64.9 63.1 68.4 79.1 69.8
ACR-F Power and PS ACR-F (dB) 71.2 67.9 63 58.4 58.9 66.5 60.2
Return Loss (RL, dB) 32 36.1 36.6 34.5 41.1 33.4 39


Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.

Physical Specifications
Conductor Size (nominal value)
4×2×0.48 (AWG24)
Outer Diameter of Cable (nominal
value)
5.0mm
Weight (305m, with package,
nominal value)
9.0kg

Electrical Properties
DC resistance (20℃ )
100Ω/km
Earth Capacity ≦ 5.6 nF/100m (@1kHz)
100MHz Characteristic Impedance
100Ω±15Ω
Transverse Conversion Loss (TCL)
≥ 50dB-10×lgf (4-100MHz)
Delay Skew
None required
NVP
69%
Power Over Ethernet (POE)
Enhanced Power Over Ethernet under IEEE 802.3at

Mechanical Properties
Minimum Bend Radius (dynamic)
20mm
Minimum Bend Radius (static)
40mm
Maximum Installation Tension
100N
Anti-Extrusion Capacity 1000N/10cm
Anti-Shock Capacity ≥ 10 times
Installation Temperature Range -0℃ ~+40℃
Working Temperature Range
-40℃ ~+60℃
