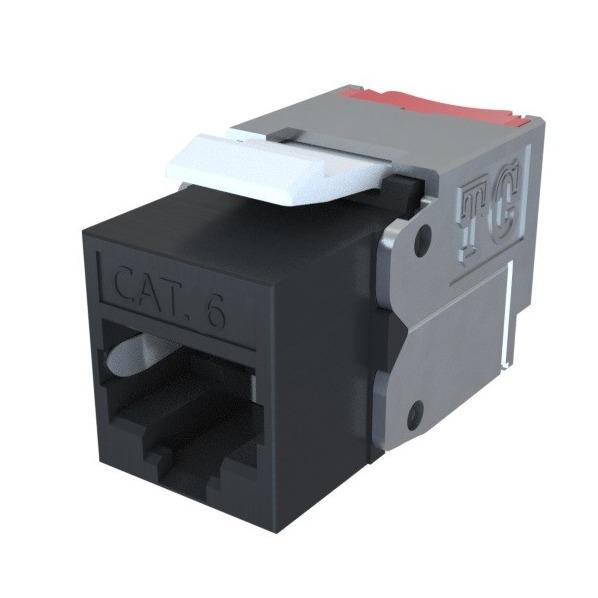

RJ45 Keystone Jack, Keystone Module, Toolless Keystone Jack, UTP Keystone Jack CAT6, CAT6 Keystone Jack Application
Magic series, RJ45 Jack provides signal transmission in the telecommunications cabling, such as data, voice, audio, and images. When integrated with patch panels, faceplates, and other security components, it helps form the information inlet/outlet for management rooms, equipment rooms, and work areas.

TC's Magic series unshielded jack meets and even exceeds the International Standard IEC 60603-7 for the connectors. With bandwidth up to 350MHz (for Cat6 jack), terminated with unshielded Cat6 cables, it supports Class D/E standard applications as well as Ethernet applications, such as 10G Base-T, 5G Base-T, 2.5G Base-T, 1G Base-T, 1G Base-TX, and 100 Base-T. It also supports enhanced Power Over Ethernet (POE+) under IEEE 802.3at.

Product Features

• Features for shielded jack include high-quality nickel-based die-cast alloys with a touch of metallic and a sense of beauty. The unshielded jack shares the same die-casting rear cover with the shielded one for improvement of ANEXT capability that meets all requirements in 10G Base-T, 5G Base-T, and 2.5G Base-T applications.
• The patent industry-leading structure has a small diameter of 31mm, designed for high-density wiring which means easy deployment even in narrow groundings.
• With a dog clutch attached firmly to the cable shield, the patent multicolor cable lock replaces the cable tie, compatible with 4.5 to 9mm copper cables of many different types.

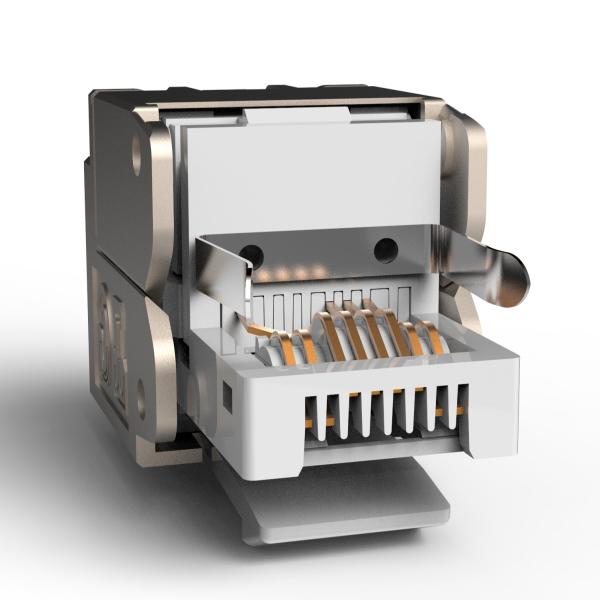

• Three-stage floating and sinking design helps the gold springs fully bounce back when accommodating different kinds of RJ series plugs, which ensures a more stable transmission performance.
• The unique cross-rib splitting structure guarantees minimum crosstalk among wire pairs and maximum network performance.

Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2


Technical Details
