Electromagnetic Induction High-Speed Tracing Series

Product Application
With the continuous development of communication technology and 5G in recent years in our country, the demand for high-quality networks has been increasing.
Consequently, the maintenance workload of corresponding network base stations and data centers has become increasingly burdensome. Currently, during operation and maintenance processes, the search for jumper cables often requires significant human and material resources. The traditional pulse audio mode used in line finders requires network disconnection, has low sensitivity, and is inefficient.
Therefore, Tiancheng's high-speed line locating solution has emerged. The product utilizes electromagnetic induction and photoelectric line tracing, providing a simple and efficient method that can improve cable locating efficiency by over 80%.
It is suitable for traditional data centers, structured cabling projects, and other applications.
Product Features
  • Innovative Wire Tracing Method
Using electromagnetic induction principles, wireless coils and LEDs are installed at both ends of the jumper wire. The wire tracer charges the induction coils to illuminate the LEDs at both ends of the jumper wire.
The transmitting coil generates a magnetic field with a certain frequency alternating current.
The receiving end generates a certain amount of current in the coil through electromagnetic induction, transferring energy from the transmitting end to the receiving end and lighting up the LED at the receiving end.
  • Hands-Free Wire Tracing Mode
The wire tracer is equipped with a built-in magnet, allowing it to be attached to metal cabinets.
Wire tracing is performed using an external coil, which can be securely fixed to the jumper wire using a card slot structure.
This hands-free feature enables technicians to move freely to distant locations to trace target jumper wires.
  • Support for Conventional Copper Wire Tracing
By connecting one end to an audio transmission device (such as Fluke or other testing equipment), the wire tracer can use its audio detection function to detect audio signals on the other end of the cable and locate the corresponding wire.
  • Illumination Feature
The wire tracer incorporates LED lighting.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568.2-D etc.

High-speed Copper Jumper Cable Tracing
Number of insertions and withdrawals ≥ 750 times
Insulation strength DC 1000V, no breakdown for 1 minute
Insulation resistance ≥ 500MΩ (+20℃ , DC 100V)

High-speed Fiber Optic Jumper Cable Tracing
Insertion loss ≤ 0.3dB
Interchangeability ≤ 0.2dB
Minimum bending radius Dynamic: 20 times the diameter of the optical cable Static: 10 times the diameter of the optical cable

Electromagnetic Induction RJ45 Keystone Jack High-Speed Tracing Series

Electromagnetic Induction RJ45 Keystone Jack High-Speed Tracing Series

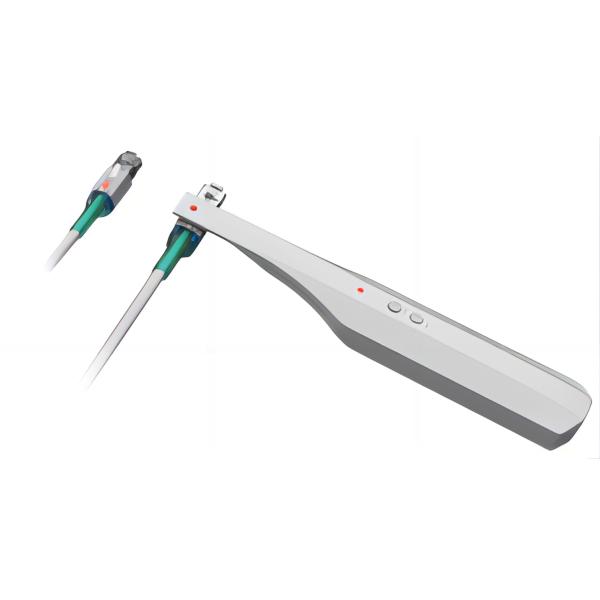

High-speed cable locator and dedicated jumpercable
Electromagnetic Induction RJ45 Keystone Jack High-Speed Tracing Series
Supported audio cable tracing method
Electromagnetic Induction RJ45 Keystone Jack High-Speed Tracing Series

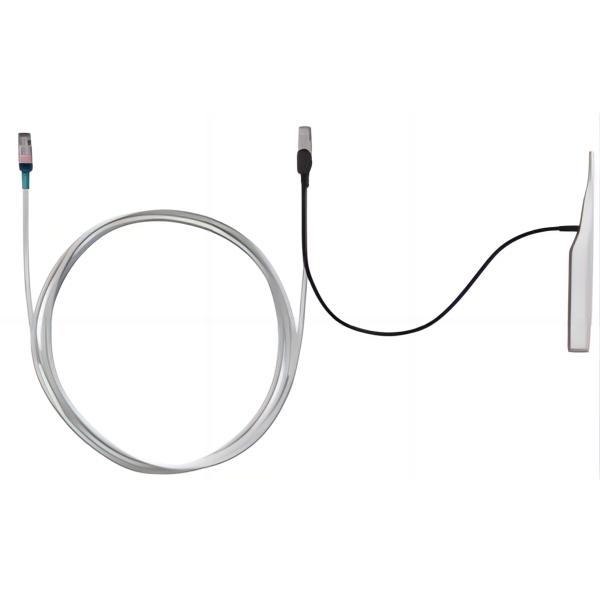

External coil cable tracing with the cable locator
Electromagnetic Induction RJ45 Keystone Jack High-Speed Tracing Series

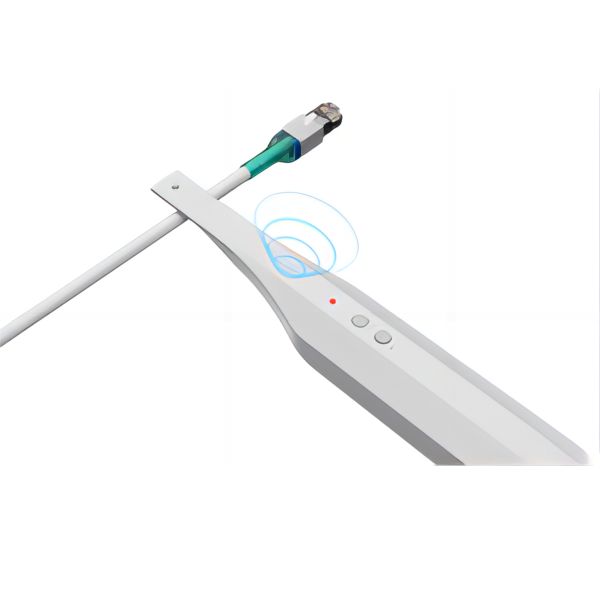

Free your hands, singleperson cable tracing
