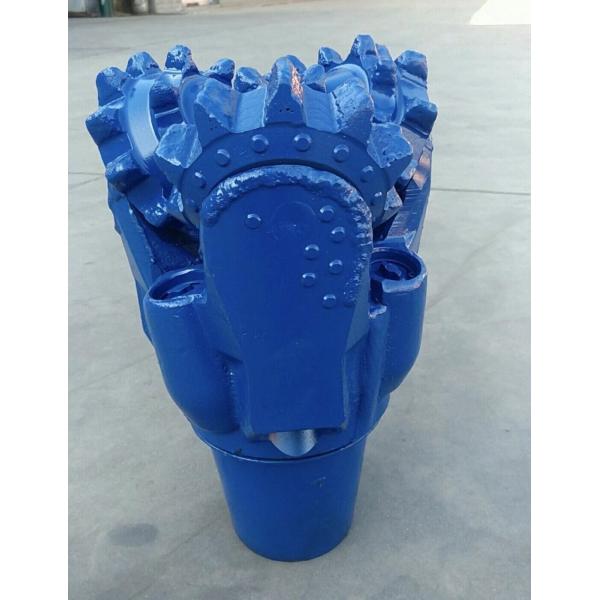

Rubber Sealed Milled Tooth Tricone Roller Bit 8-1/2 IADC137 For Oil Well
Rubber Sealed Milled Tooth Tricone Roller Bit 8-1/2 IADC137 For Oil Well
Rubber Sealed Milled Tooth Tricone Roller Bit 8-1/2 IADC137 For Oil Well
Rubber Sealed Milled Tooth Tricone Roller Bit 8-1/2 IADC137 For Oil Well
Specifications
Brand Name :
Tianying
Model Number :
IADC137 8-1/2''
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000 pieces per year
Delivery Time :
5-10 work days
Packaging Details :
wooden case
Description

Rubber Sealed Milled Tooth Tricone Roller Bit 8-1/2" IADC137 For Oil Well

Cutting Structure

The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.

Gauge Structure

Multiple gauge protection with gauge trimmers on the heel of cone,tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

Bearing Structure

High precision journal bearing with two thrust faces.Balla lock the cone.Hardfaced head bearing surfaces.Cone bearing inlaid with friction-reducing alloy and then silver-plated.Abrasion resistance and seizure resistance of the bearing are improved.

Seal and Lubrication

Premium HNBR O-ring.optimal seal compression and curved seal structure can enhance the seal performance .The pressure compensator system and advanced grease can greatly increase the lubricating rellability.

Product Application

It can receive high WOB in the conventional drilling.It is suitable for various formations by matching cutting structure with different tooth shape,tooth density ans tooth exposure height.

Recommended Drilling Parameters

IADC

WOB

(weight on bit dia)

RPM

(R/Min)

 Application Formation
116 117 0.35-0.8 150-80

Very soft formations with low compressive strength and high drillability.such as clay.mudstone.chalk.etc.
126 127 0.35-0.9 150-70

Soft formations with low compressive strength and high drillability,such as mudstone,gypsum salt.soft shale.soft limestone.etc.
136 137 0.35-1.0 120-60

Soft to medium soft formations with low compressive strength and high drillability,such as medium soft shale.anhydrite.medium soft limestone,medium soft sandstone.soft formation with harder interbed,etc.
