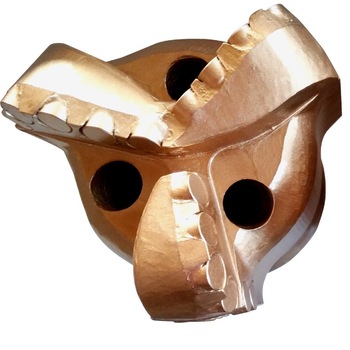

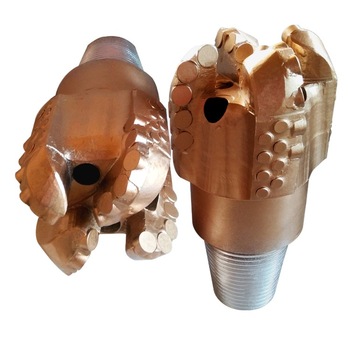

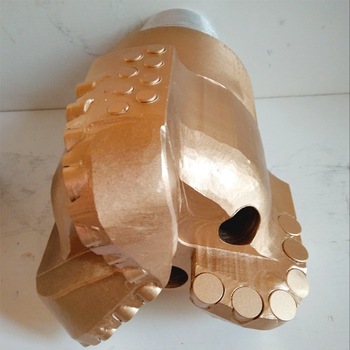

Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Specifications
Brand Name :
chuanzuan
Model Number :
S323
Certification :
CE
Place of Origin :
Hebei, China
MOQ :
1
Price :
Negotiable
Supply Ability :
500pcs/years
Packaging Details :
Fumigation wooden box or iron box
Size :
122mm
Number of Blades :
3
Connection :
API 3 1/2 REG PIN
Color :
Golden
Use :
water well drilling
Applicable formation :
Sofe formations
Machine Type :
Drilling Equipment
Package Type :
Fumigation wooden box or iron box
Single Package Size :
25X25X45 cm
Description

Steel body PDC drill bit 122mm drilling for directional drilling clay sandstone

Product Description
This drill bit is designed with 3 straight blades and short parabolic configuration, made with low carbon alloy steel, improving ROP and enhancing the stability of the bit. With auxiliary cutting teeth, this bit has higher sttach strength and abrasive resistance in high grind formation. Suitable for drilling in medium formation with high penetration rate.
Formation
IADC
Rock Formation
Appropriate PDC bit type
very soft
S123
Clay / Mudstone / Marlite
1944S 1952
soft
S223 / S233
Marlite / Saline rock / Shale
1942D / 152GS / 1952AGS / 1952A / 1652
Medium soft
S323/S324/S334
Shale / Sandstone / Chalk
1952GRS/ 1952AGRS/ 1963AGS/ 1652S/ 1653S/ 1363AGRS/ 1362GR/ 1652DGS

Steel is metallurgically opposite of matrix. It is capable of withstanding high impact loads, but is relatively soft and, without protective features, would quickly fail by abrasion and erosion. Quality steels are essentially homogeneous with structural limits that rarely surprise their users.


Product Features
Steel PDC bit with five blades of parabola crown profile and with middle cutter density
With interchan geable screw nozzles.
Asymmetrical blades arrangement and special load-balanced cutter arrangement design improve bit stability and therefore higher ROP
Non-plane interfaced diamond /carbide cutters absorb effectively high stress and minimize cutter fracturing and wearing.
Both tilted and cauterized nozzles design improves bit cleaning and prevents bit balling,thus to improve ROP
Can be used on rotary or down hole motor drilling
Suitable for soft to medium hard formation
High HIS is recommended
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone

Company Information


Hebei Yichuan Drilling Equipment Manufacturing Co., Ltd has more than 20 years of experience in manufacturing and design. We specialize in researching and production of TCI Tricone Bit, Steel Tooth tricone bit, PDC bit, Drag bit, HDD hole opener, Tricone bit cutter and Drilling Accessories. Application fields include oil well drilling, gas well drilling, geothermal well drilling, mining, geological survey, hydrographic survey, water well drilling, HDD pipelinesprojects, foundation projects.
Our goal is to provide the best quality products and service to our customers. We have professional R&D team, advanced equipment and precision instruments. Reduce the cost, Speed the drilling, guarantee the safety is always our aim.
Win-win cooperation is our ultimate pursuit. Contact us anytime if you are looking for a drill bit manufacturer.

Our Services

1 We supply good quality goods at competitive price
2 We not only have our own design but also accept customization
3 Fast and on time delivery
4 Every bit has it's quality assurance
5 Contact us anytime if you have any question with bits.
6 24 hours on time reply
Steel Body PDC Drill Bit 122mm Drilling For Directional Drilling Clay Sandstone

F A Q


First of all we want you to know that we are a manufacturer loacted in Hejian City, Hebei Province, China. We have been in this industry for more than 20 years.
We have many clients from all over the world and we serve our clients with not only reasonable price, but also reliable quality. We cherish every client and we're thankful for our clients' trust. So please believe us, we will supply you with the most genuine goods.

1 Q: Are you manufacturer?
A: Yes and we have been manufacturing drill bits for more than 20 years.
2 Q: Where are you located in?
A: We are located in Hejian City Cangzhou City Hebei China
3 Q:What's your main product?
A: Our main products include TCI tricone bit, Steel tooth tricone bit, sigle cone bit, HDD HOLE OPPENER and so on. For some products such as drag bits, we can also produce as per your demand.
4 Q: What's your MOQ?
A: Our MOQ is 5 pieces, but if you just want one sample for testing quality, it's also acceptable for us.
5 Q: What's the lead time?
A: We will delivery goods within 7 days if we have goods in stock; for other circumstances, we will negotiate with you.
6 Q: Do you have used drill bit ?
A: Yes we have and price are very competitive, welcome to inquire anytime.
For more information, please feel free to contact us.
