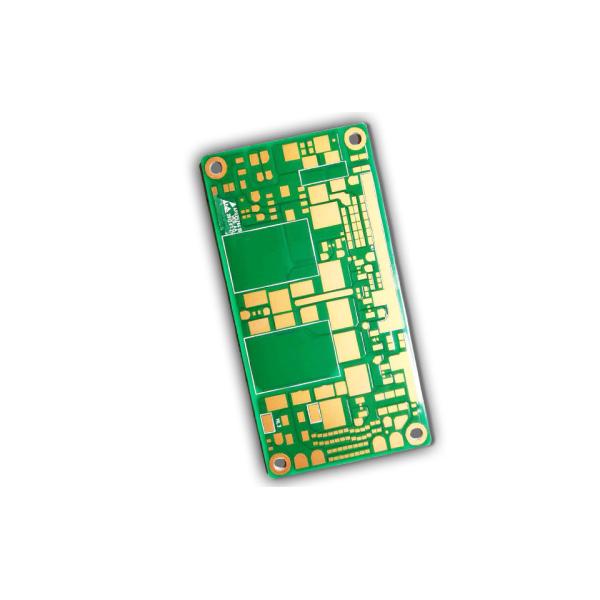

Metal Core Circuit Board Custom PCB Design And Assembly For Sensor
Metal Core Circuit Board Custom PCB Design And Assembly For Sensor
Specifications
Brand Name :
TECircuit
Model Number :
TEC0142
Certification :
UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1.99 ~ USD9.99/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs/month
Delivery Time :
5-15 wotk days
Packaging Details :
Vacuum package+Carton box
Brand :
Shenzhen Tecircuit Electronics Co., Ltd
Product Type :
PCB,High frequency board,RIGID PCB,Rigid board,Flexible board,Rigid-Flex PCB,IC-Substrate,Metal Core
Item No. :
R0046
Service :
PCBA service
Description

Product Images

Metal Core Circuit Board Custom PCB Design And Assembly For Sensor

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

  • Environmental Sensors:

    • Used in devices that monitor temperature, humidity, air quality, and other environmental parameters, providing reliable power management.

  • Medical Sensors:

    • Integrated into diagnostic devices, such as blood glucose monitors and heart rate sensors, ensuring stable power delivery for accurate measurements.

  • Automotive Sensors:

    • Employed in vehicle systems for monitoring parameters like tire pressure, temperature, and emissions, where robustness and reliability are crucial.

  • Industrial Automation:

    • Used in sensors for factory automation, such as proximity sensors and pressure sensors, ensuring efficient operation and power management.

  • Smart Home Devices:

    • Integrated into home automation systems for motion detectors, smart thermostats, and security systems, providing stable power for continuous operation.

  • IoT Devices:

    • Used in Internet of Things (IoT) applications, where sensors require efficient power management to transmit data reliably.

  • Wearable Technology:

    • Employed in health and fitness trackers, ensuring reliable power supply for sensors that monitor physical activity and health metrics.

  • Robotics:

    • Used in robotic systems for various sensors, including vision, ultrasonic, and force sensors, providing stable power in dynamic environments.

  • Agricultural Sensors:

    • Integrated into soil moisture sensors and weather stations, supporting precision farming applications with efficient power management.

  • Energy Management Systems:

    • Employed in sensors that monitor energy usage and efficiency, contributing to smart grid solutions.

Product Features

  1. High Thermal Conductivity:

    • Aluminum PCBs effectively dissipate heat, which is critical in maintaining sensor accuracy and longevity.

  2. Durability:

    • The robust aluminum substrate can withstand mechanical and environmental stresses, making it suitable for various applications.

  3. Low Coefficient of Thermal Expansion (CTE):

    • The CTE of aluminum is compatible with that of many electronic components, reducing thermal stress and enhancing reliability.

  4. Electrical Insulation:

    • Provides excellent electrical insulation, ensuring safe operation in high-voltage sensor applications.

  5. Compact Design:

    • Allows for thinner, lighter designs, which is beneficial in space-constrained applications like wearable devices.

  6. High Reliability:

    • Offers long-term stability and durability, essential for critical sensor applications in various industries.

  7. Customizability:

    • Can be tailored to specific design requirements, including layout, thickness, and surface finish.

  8. Ease of Manufacturing:

    • Compatible with standard PCB manufacturing processes, ensuring efficient production and assembly.

  9. Cost-Effectiveness:

    • Although generally more expensive than traditional FR4 PCBs, the benefits in thermal management and reliability often justify the investment.

  10. Regulatory Compliance:

    • Designed to meet industry standards for safety and performance, ensuring reliable operation across diverse applications.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

​Product Description​

Specification:
PCB layers: 1-42layers
PCB materials: CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size: 620mm*1100mm
PCB certificate: RoHS Directive-Compliant
PCB Thickness: 1.6 ±0.1mm
Out Layer Copper Thickness: 0.5-5oz
Inner Layer Copper Thickness: 0.5-4oz
PCB max. board thickness: 6.0mm
Minimum Hole Size: 0.20mm
Minimum Line Width/Space: 3/3mil
Min. S/M Pitch: 0.1mm(4mil)
Plate Thickness and Aperture Ratio : 30:1
Minimum Hole Copper: 20µm
Hole Dia. Tolerance(PTH): ±0.075mm(3mil)
Hole dia. Tolerance(NPTH): ±0.05mm (2mil)
Hole Position Deviation: ±0.05mm (2mil)
Outline Tolerance: ±0.05mm (2mil)
PCB solder mask: Black, white, yellow
PCB surface finished: HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend: White
E-test: 100% AOI, X-ray, Flying probe test.
Outline: Rout and Score/V-cut
Inspection Standard: IPC-A-610CCLASSII
Certificates: UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports: Final Inspection, E-test, Solderability Test, Micro Section and More
