OEM Metal Core MC Rigid PCB Printed Circuit Board 2 Color for LED Light Strip
OEM Metal Core MC Rigid PCB Printed Circuit Board 2 Color for LED Light Strip
Specifications
Brand Name :
TECircuit
Model Number :
TEC0138
Certification :
UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1.99 ~ USD9.99/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs/month
Delivery Time :
5-15 wotk days
Packaging Details :
Vacuum package+Carton box
Brand :
Shenzhen Tecircuit Electronics Co., Ltd
Product Type :
PCB,High frequency board,RIGID PCB,Rigid board,Flexible board,Rigid-Flex PCB,IC-Substrate,Metal Core
Item No. :
R0042
Service :
PCBA service
Description

Product Images

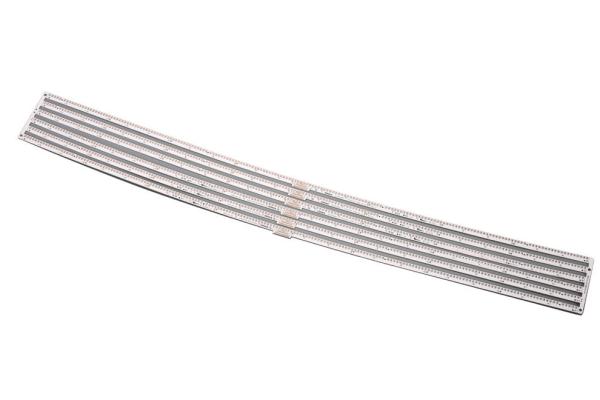

OEM Metal Core MC Rigid PCB Printed Circuit Board 2 Color for LED Light Strip

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

  • Mood Lighting:

    • Used in residential and commercial settings to create customizable ambiance by blending two colors for different moods or events.

  • Architectural Lighting:

    • Employed in architectural features, allowing designers to highlight structures with dynamic color effects for aesthetic appeal.

  • Theatrical and Stage Lighting:

    • Integrated into stage productions for dynamic lighting effects that enhance performances and visual storytelling.

  • Automotive Lighting:

    • Used in vehicle interiors to provide ambient lighting, allowing for color changes to match the driver’s mood or preferences.

  • Signage and Displays:

    • Employed in illuminated signs where color changes can attract attention and convey messages effectively.

  • Event and Party Decorations:

    • Used in decorations for parties and events, enabling vibrant color changes to match themes or celebrations.

  • Home Automation:

    • Integrated into smart home systems, allowing users to control lighting colors via apps for personalized experiences.

  • Backlighting Applications:

    • Used in applications such as TV screens and monitors where dual colors can enhance visual effects and reduce eye strain.

  • Refrigeration and Freezer Lighting:

    • Employed in commercial refrigeration units, allowing for color-coded lighting to indicate product categories or conditions.

  • Custom DIY Projects:

    • Popular among hobbyists for creating personalized lighting solutions in various projects, from home decor to electronics.

Product Features

  1. High Thermal Conductivity:

    • Metal core PCBs (MCPCBs) effectively dissipate heat, ensuring optimal performance and longevity of LEDs.

  2. Durability:

    • Robust metal substrates withstand environmental conditions, making them suitable for both indoor and outdoor use.

  3. Flexible Design:

    • Allows for slim profiles and flexibility in design, accommodating various installation scenarios.

  4. Dynamic Color Mixing:

    • Capable of blending two colors seamlessly, providing a range of hues and effects for enhanced visual appeal.

  5. Low Coefficient of Thermal Expansion (CTE):

    • The CTE of metal cores is compatible with LED components, reducing thermal stress and enhancing reliability.

  6. High Electrical Efficiency:

    • Offers low electrical resistance, minimizing power losses and maximizing light output.

  7. Easy Installation:

    • Often designed with adhesive backing or mounting options for straightforward installation in diverse settings.

  8. Versatile Control Options:

    • Can be integrated with dimmers or smart controls for adjustable brightness and color changes.

  9. Cost-Effectiveness:

    • While typically more expensive than standard FR4 PCBs, the benefits of thermal management and dual-color capability justify the investment.

  10. Regulatory Compliance:

    • Designed to meet safety and performance standards, ensuring reliable operation in various applications.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

​Product Description​

Specification:
PCB layers: 1-42layers
PCB materials: CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size: 620mm*1100mm
PCB certificate: RoHS Directive-Compliant
PCB Thickness: 1.6 ±0.1mm
Out Layer Copper Thickness: 0.5-5oz
Inner Layer Copper Thickness: 0.5-4oz
PCB max. board thickness: 6.0mm
Minimum Hole Size: 0.20mm
Minimum Line Width/Space: 3/3mil
Min. S/M Pitch: 0.1mm(4mil)
Plate Thickness and Aperture Ratio : 30:1
Minimum Hole Copper: 20µm
Hole Dia. Tolerance(PTH): ±0.075mm(3mil)
Hole dia. Tolerance(NPTH): ±0.05mm (2mil)
Hole Position Deviation: ±0.05mm (2mil)
Outline Tolerance: ±0.05mm (2mil)
PCB solder mask: Black, white, yellow
PCB surface finished: HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend: White
E-test: 100% AOI, X-ray, Flying probe test.
Outline: Rout and Score/V-cut
Inspection Standard: IPC-A-610CCLASSII
Certificates: UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports: Final Inspection, E-test, Solderability Test, Micro Section and More
