Custom AlN Ceramic Aluminum Nitride PCB Rigid PCB Printed Circuit Board
Custom AlN Ceramic Aluminum Nitride PCB Rigid PCB Printed Circuit Board
Specifications
Brand Name :
TECircuit
Model Number :
TEC0124
Certification :
UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1.99 ~ USD9.99/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs/month
Delivery Time :
5-15 wotk days
Packaging Details :
Vacuum package+Carton box
Brand :
Shenzhen Tecircuit Electronics Co., Ltd
Product Type :
PCB,High frequency board,RIGID PCB,Rigid board,Flexible board,Rigid-Flex PCB,IC-Substrate,Metal Core
Item No. :
R0028
Service :
PCBA service
Description

Product Images

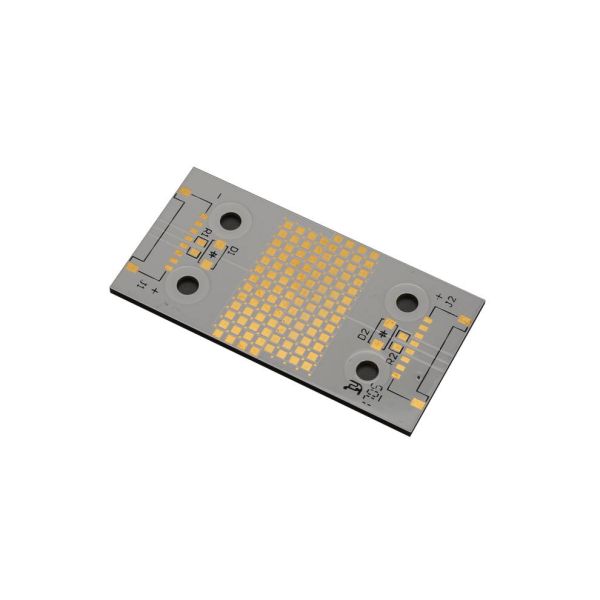

Custom AlN Ceramic Aluminum Nitride PCB Rigid PCB Printed Circuit Board

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

  • High-Power Electronics:

    • Used in power devices such as inverters, converters, and amplifiers due to excellent thermal conductivity and heat dissipation properties.

  • LED Lighting:

    • Employed in high-brightness LED applications, providing efficient thermal management to extend the lifespan of LED components.

  • RF/Microwave Applications:

    • Integrated into RF and microwave circuits where low dielectric loss and high thermal stability are critical for performance.

  • Automotive Electronics:

    • Used in automotive control systems and power modules, ensuring reliability in high-temperature and harsh environments.

  • Telecommunications:

    • Employed in telecom equipment, including base stations and antenna systems, to manage heat effectively while maintaining signal integrity.

  • Medical Devices:

    • Integrated into diagnostic and therapeutic equipment that requires precise thermal management and reliability under varying conditions.

  • Industrial Equipment:

    • Used in industrial power supplies and control systems, providing robust performance in demanding applications.

  • Aerospace and Defense:

    • Employed in aerospace applications where high reliability and thermal stability are essential, such as in satellite systems.

  • Electric Vehicles (EVs):

    • Used in battery management systems and power electronics for electric and hybrid vehicles, aiding in efficient thermal management.

  • Consumer Electronics:

    • Integrated into high-performance consumer devices that require advanced thermal management solutions.

Product Features

  1. High Thermal Conductivity:

    • Aluminum nitride (AlN) provides superior thermal conductivity (up to 170 W/mK), making it ideal for heat-sensitive applications.

  2. Excellent Electrical Insulation:

    • Offers high dielectric strength and low dielectric loss, ensuring reliable performance in electronic applications.

  3. Mechanical Strength:

    • AlN ceramic is durable and can withstand mechanical stress, making it suitable for demanding environments.

  4. High Temperature Resistance:

    • Maintains stability and performance at elevated temperatures, often up to 1000°C, without degradation.

  5. Low Coefficient of Thermal Expansion (CTE):

    • The CTE of AlN is well-matched to that of silicon, reducing the risk of thermal stress and failure in semiconductor applications.

  6. Chemical Resistance:

    • AlN is resistant to a variety of chemicals, enhancing its durability in harsh environments.

  7. Lightweight:

    • Offers a lightweight alternative to traditional metal substrates, beneficial for applications where weight is a concern.

  8. Customizability:

    • Can be tailored in terms of thickness, size, and surface finishes to meet specific application requirements.

  9. Compatibility with Various Manufacturing Processes:

    • Can be processed using standard PCB fabrication techniques, including screen printing and laser machining.

  10. Cost Considerations:

    • While typically more expensive than traditional PCB materials, the long-term performance benefits often justify the investment in high-reliability applications.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

​Product Description​

Specification:
PCB layers: 1-42layers
PCB materials: CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size: 620mm*1100mm
PCB certificate: RoHS Directive-Compliant
PCB Thickness: 1.6 ±0.1mm
Out Layer Copper Thickness: 0.5-5oz
Inner Layer Copper Thickness: 0.5-4oz
PCB max. board thickness: 6.0mm
Minimum Hole Size: 0.20mm
Minimum Line Width/Space: 3/3mil
Min. S/M Pitch: 0.1mm(4mil)
Plate Thickness and Aperture Ratio : 30:1
Minimum Hole Copper: 20µm
Hole Dia. Tolerance(PTH): ±0.075mm(3mil)
Hole dia. Tolerance(NPTH): ±0.05mm (2mil)
Hole Position Deviation: ±0.05mm (2mil)
Outline Tolerance: ±0.05mm (2mil)
PCB solder mask: Black, white, yellow
PCB surface finished: HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend: White
E-test: 100% AOI, X-ray, Flying probe test.
Outline: Rout and Score/V-cut
Inspection Standard: IPC-A-610CCLASSII
Certificates: UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports: Final Inspection, E-test, Solderability Test, Micro Section and More
