Rigid HDI Multilayer PCB Printed Circuit Board For Smart Fitness Equipment
Rigid HDI Multilayer PCB Printed Circuit Board For Smart Fitness Equipment
Specifications
Brand Name :
TECircuit
Model Number :
TEC0225
Certification :
UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH.
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1.99 ~ USD9.99/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs/month
Delivery Time :
5-15 wotk days
Packaging Details :
Vacuum package+Carton box
Brand :
Shenzhen Tecircuit Electronics Co., Ltd
Product Type :
PCB,High frequency board,RIGID PCB,Rigid board,Flexible board,Rigid-Flex PCB,IC-Substrate,Metal Core
Item No. :
R0093
Service :
PCBA service
Description

Product Images

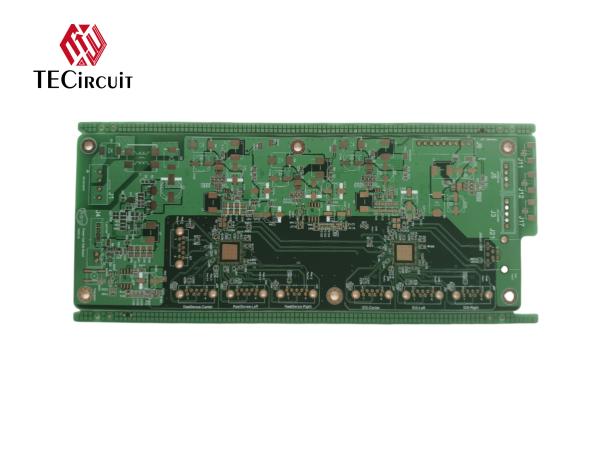

Rigid HDI Multilayer PCB Printed Circuit Board For Smart Fitness Equipment

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

  • Wearable Fitness Trackers:

    • Used in smartwatches and fitness bands to monitor health metrics like heart rate, steps, and sleep patterns.

  • Smart Exercise Equipment:

    • Integrated into stationary bikes, treadmills, and rowing machines for real-time performance tracking and user feedback.

  • Connected Gym Equipment:

    • Applied in gym machines that sync with mobile apps to provide personalized workout plans and track progress.

  • Home Fitness Devices:

    • Utilized in smart weights and resistance bands that offer feedback on performance and suggest adjustments.

  • Virtual Fitness Platforms:

    • Supports devices used in virtual training sessions, providing data to enhance user experience during online workouts.

  • Sports Performance Monitoring:

    • Employed in equipment used by athletes for performance analysis and training optimization.

  • Health Monitoring Devices:

    • Used in devices that track overall health metrics, providing insights for wellness and recovery.

  • Remote Coaching Tools:

    • Integrated into devices that enable trainers to monitor clients' workouts remotely and offer real-time guidance.

  • Rehabilitation Equipment:

    • Applied in fitness devices designed for physical therapy, providing data to healthcare professionals for patient recovery.

  • Community Fitness Challenges:

    • Supports devices that allow users to participate in community challenges, sharing data and competing with others.

Product Features

  1. High-Density Interconnect (HDI) Design:

    • Utilizes HDI technology for compact design, allowing for smaller footprints and more complex circuitry, enhancing performance and reliability.

  2. Multi-Function Integration:

    • Combines various functionalities such as heart rate monitoring, GPS tracking, calorie counting, and workout analytics in one PCB.

  3. Wireless Connectivity:

    • Supports Bluetooth and Wi-Fi for seamless data synchronization with mobile apps and other devices, enhancing user interaction.

  4. Low Power Consumption:

    • Optimized for energy efficiency, extending battery life, which is crucial for portable fitness devices.

  5. User-Friendly Interface:

    • Features intuitive controls and displays, making it easy for users to navigate settings and monitor performance.

  6. Durability:

    • Designed to withstand the rigors of physical activity, with resistance to moisture, dust, and shock.

  7. Real-Time Monitoring:

    • Supports real-time data collection and feedback, allowing users to track their workouts and performance metrics instantly.

  8. Safety Features:

    • Integrates protective measures against overheating and electrical faults to ensure user safety during intense workouts.

  9. Expandable Architecture:

    • Designed to allow for future upgrades and additional features, such as new sensors or software updates.

  10. Compact and Lightweight:

    • Small size and lightweight materials make it suitable for wearable devices and portable fitness equipment.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

​Product Description​

Specification:
PCB layers: 1-42layers
PCB materials: CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size: 620mm*1100mm
PCB certificate: RoHS Directive-Compliant
PCB Thickness: 1.6 ±0.1mm
Out Layer Copper Thickness: 0.5-5oz
Inner Layer Copper Thickness: 0.5-4oz
PCB max. board thickness: 6.0mm
Minimum Hole Size: 0.20mm
Minimum Line Width/Space: 3/3mil
Min. S/M Pitch: 0.1mm(4mil)
Plate Thickness and Aperture Ratio : 30:1
Minimum Hole Copper: 20µm
Hole Dia. Tolerance(PTH): ±0.075mm(3mil)
Hole dia. Tolerance(NPTH): ±0.05mm (2mil)
Hole Position Deviation: ±0.05mm (2mil)
Outline Tolerance: ±0.05mm (2mil)
PCB solder mask: Black, white, yellow
PCB surface finished: HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend: White
E-test: 100% AOI, X-ray, Flying probe test.
Outline: Rout and Score/V-cut
Inspection Standard: IPC-A-610CCLASSII
Certificates: UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports: Final Inspection, E-test, Solderability Test, Micro Section and More
