45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
Specifications
Brand Name :
TECLION
Model Number :
DBK100R
Certification :
CC CE
Place of Origin :
China,Anhui
MOQ :
1
Price :
Get the Best Price
Payment Terms :
T/T
Supply Ability :
Usually every one sets for 35- 40 days
Delivery Time :
45 working days
Packaging Details :
Professional export fumigation free wooden crate
material :
stainless steel,carbon steel
Temperature :
-20℃+120℃
pressure :
6.0barg
Flange pressure rating :
PN10,ANSI 150lbs
caliber :
DN50-DN300
drive :
Electric or manual
Applicable area :
Explosion proof area
industry :
Chemicals, minerals, lithium batteries, food, plastics
Description

45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying

Product Description:

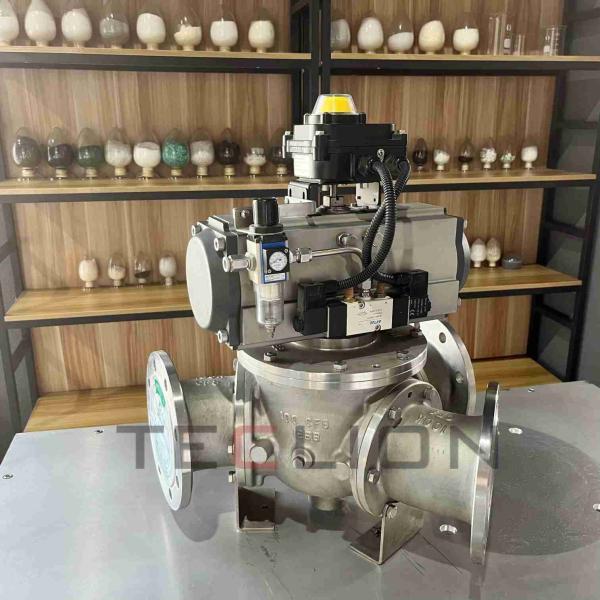

The ball type series directional valve has better sealing effect and is very suitable for dense phase conveying occasions. The diameter of the directional valve in the picture is DN100, and the contact area between the inner cavity and the material is sprayed with ceramic. Ceramic coatings have characteristics such as high temperature resistance, corrosion resistance, high hardness, and wear resistance.

Product Features:

1) Smooth channel without undulations or dead corners

2) Angle 45 °, three port seal

3) Dense Phase Convey

4) Clear flow indication

5) Drive can be left placed

6) Hard sealing structure

Product Parameters:

No Item Note
1 Valve type Solenoid-actuated Poppet Valve
2 Size DN50-DN300
3 pressure 6.0barg
4 Temperature usage ℃ -20-120℃
5 Material Stainless steel carbon steel
6 Angle 45° 90° 60°
7 Configuration single channel
8 Electrical Components Optional

Product Pictures:

45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
