Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Single channel ball 304ss diverter valve for conveying powder or particle
Specifications
Brand Name :
TECLION
Model Number :
DBK100
Certification :
CE
Place of Origin :
China Anhui
MOQ :
1
Price :
Get the Best Price
Payment Terms :
T/T
Supply Ability :
Usually every ten sets for 30 days
Delivery Time :
25 working days
Packaging Details :
Professional export fumigation free wooden crate
Product Name :
DBK100
Size :
DN100
Weight :
73kg
Height :
468
Material :
304ss
Valve body :
Casting
Valve core :
ball core
Driving :
Cylinder
Description

Single channel ball diverter valve for conveying powder or particles

Product Description:

Stainless steel cast ball directional valve, precision cast valve body shell, smooth and undulating material channel, selected the optimal valve body structure after tens of thousands of action tests, meets high load operation, has sufficient rigidity, and can be used at any position of dense phase conveying pipelines. Currently, the angle can be selected as 45 degrees and 90 degrees. The inner cavity of the valve body can be sprayed with ceramic or tungsten carbide, and the parts in contact with the material can be mirror polished and degreased.

Features:

1) Compact valve body design

2) Clear indication of material flow direction

3) Capable of withstanding pressure up to 6 barg

4) Tens of thousands of motion tests, with excellent quality

5) Drive options include electric, pneumatic, and manual

Product parameters:

No. Item Data
1 Valve angle 45° or 90°
2 Applicable temperature From minus 20 degrees to 120 degrees
3 Applicable pressure 6.0barg
4 Sealing selection Hard seal or soft seal
5 Applicable working conditions Dense phase transport

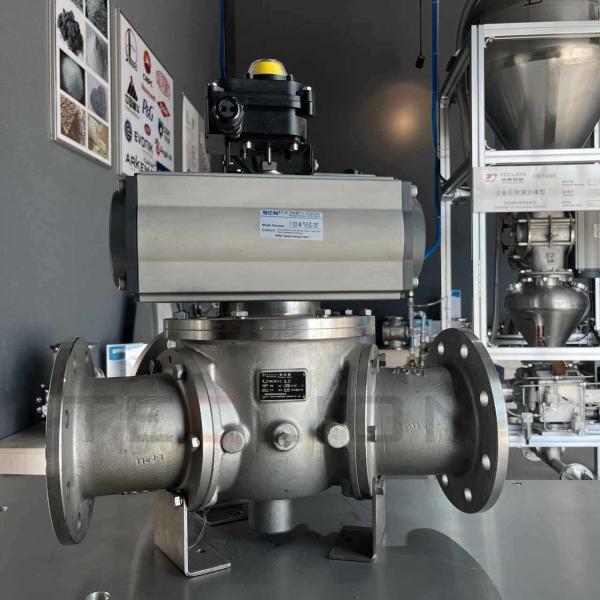

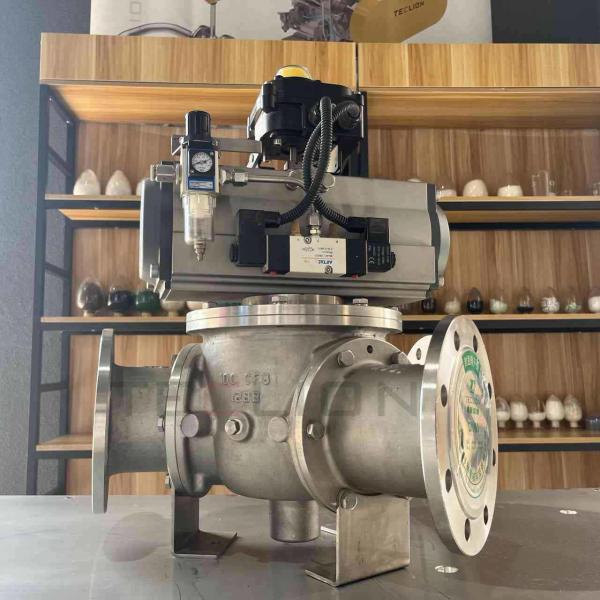

Product Pictures:

Single channel ball 304ss diverter valve for conveying powder or particleSingle channel ball 304ss diverter valve for conveying powder or particleSingle channel ball 304ss diverter valve for conveying powder or particleSingle channel ball 304ss diverter valve for conveying powder or particle
