Specifications
Brand Name :
tecsis
Model Number :
F1821
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20,000pcs per month
Delivery Time :
Stock product:3~5 working days , No stock:10~35 days
Packaging Details :
Standard: carton
Product Name :
F1821 compression load cell
Diameter :
50mm
Material :
Stainless steel
Customized :
Acceptable
Capacity :
20kg~10t
OEM/ODM :
Acceptable
Protection class :
IP66
Usage :
Force measurement
Description

Low Profile Compact 20kg Testing Strain Gauge Load Cell Compression Type

Features :

  • Model:F1821
  • Capacity: 20kg~10t
  • Simple structure, four holes, easy to install
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Small deflection
  • Delicate structure, Low profile
  • Compression load cell
  • Button type load cell

Description:

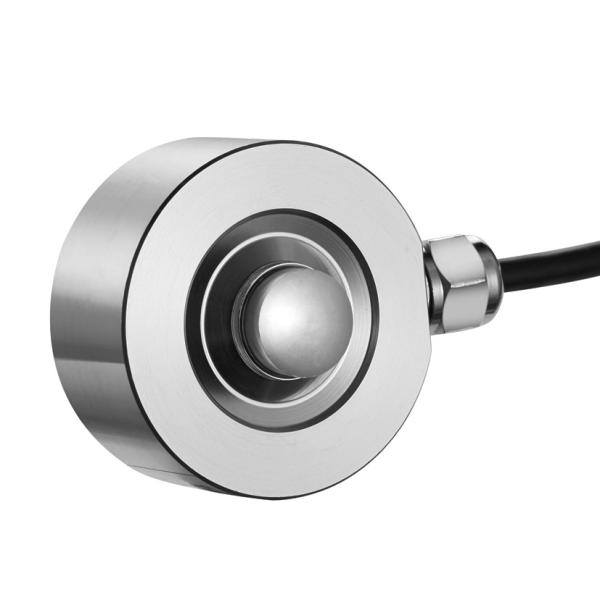

F1821 is a stainless steel load cell, it can measure the compression force.

lts capacities range from 20kg to 10t but all of the diameter is 50mm and the height is 25mm.

It comes complete with 3m of load cell cable.

The cable outlet is pressing nut. the protection class is IP66.

Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications.

There are four holes in the background of the load cell, this makes it easy to install.

Apply for mechanical assembling, stamping force test and control which precision requirements are undemanding.Like pressing machine, Bearing assembly machine.


Transient force measurement and control of dynamic stamping equipment.


Hopper scale and tank scale dynamic weight control.

Application:

F1821 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Widely used for industrial measurement and control, R&D and otherapplications

Technical parameters:

Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±3% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±3Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø4×3000 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

Size and capacity:

Low Profile Compact 20kg Testing Strain Gauge Load Cell Compression Type

Load direction:

Low Profile Compact 20kg Testing Strain Gauge Load Cell Compression Type

Schematic Wiring Diagram :

Low Profile Compact 20kg Testing Strain Gauge Load Cell Compression Type

Product details:

Low Profile Compact 20kg Testing Strain Gauge Load Cell Compression Type
