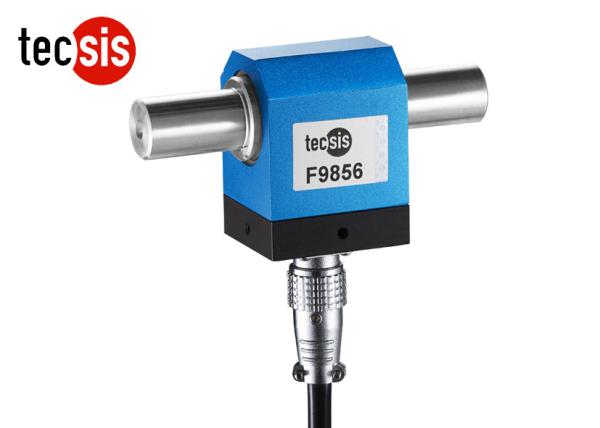

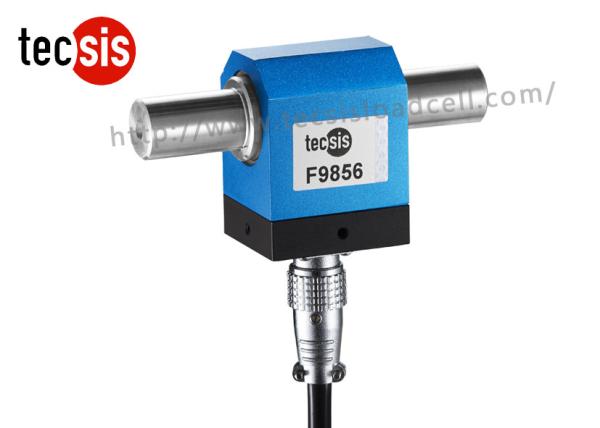

Stainless Steel Force Torque Sensor Load Cell For Torque Force Measurement
Stainless Steel Force Torque Sensor Load Cell For Torque Force Measurement
Stainless Steel Force Torque Sensor Load Cell For Torque Force Measurement
Stainless Steel Force Torque Sensor Load Cell For Torque Force Measurement
Specifications
Brand Name :
tecsis
Model Number :
F9856
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20,000pcs per month
Delivery Time :
Stock product:3~5 working days , No stock:10~35 days
Packaging Details :
Standard: carton
Product Name :
F9856
Structure :
Compact
Material :
Aluminum Alloy
Customized :
Acceptable
Capacity :
10~100NM
OEM/ODM :
Acceptable
Type :
Column
Protection class :
IP65
Description

Stainless Steel Force Torque Sensor For Torque Force Measurement

Features :

  • Model:F9856
  • Capacity: 10~100NM
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of Aluminum alloy
  • Delicate structure
  • Static torqie sensor

Description:

Static torque sensor with metal foil strain gauge technology and compact structure.

Made of aluminum alloy, there are six holes on both sidez of the load cell, this makes it easy to install, and it will be more stable to measure the torque force.

Mainly used for static, non-continuous rotational torque force measurement.

Application:

Used for dynamic industrial automation,automotive,screw fixation technology and measuring the drag torque of motors and pumps

Technical parameters:

Specifications

Technique

Rated output

1.0/2.0±10%mV/V
Zero blance 1% F.S.

Non-linearity

0.1% 0.3%0.5%F.S.

Hysteresis

0.1% 0.3%0.5%F.S.

Repeatability

0.1% 0.3%0.5%F.S.

Temp. effect on output

≤0.1% F.S. / 10ºC

Temp. effect on zero

≤0.1% F.S. / 10ºC
Max.rotary speed 4000/min

Input impedance

750/350±10Ω

Output impedance

750/350±5Ω

Recommended excitation

12V

Compensated temp. range

20~60ºC

Operation temp. range

- 10~60ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

3000mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

Size and capacity:

Stainless Steel Force Torque Sensor Load Cell For Torque Force Measurement

Load Direction:

Stainless Steel Force Torque Sensor Load Cell For Torque Force Measurement

Schematic Wiring Diagram :

Stainless Steel Force Torque Sensor Load Cell For Torque Force Measurement
