Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg
Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg
Specifications
Brand Name :
tecsis
Model Number :
F2812
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20,000pcs per month
Delivery Time :
Stock product:3~5 working days , No stock:10~35 days
Packaging Details :
Standard: carton
Product Name :
F2812 Tension and compression load cell
Structure :
Compact
Material :
Stainless steel
Customized :
Acceptable
Capacity :
5kg~100kg
OEM/ODM :
Acceptable
Theory :
Resistance Sensor
Description

Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg

Features :

  • Model:F2812
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, both sides threads, easy to install
  • Small size, easy to use
  • Made of stainless steel
  • Capacity:5kg~100kg
  • Diameter:25.4mm

Description:

F2812 Force transducer is available in the capacities 5kg to 100kg.

Its structure is very delicate, the diameter is 25.4mm, there are M5/M6 threads on both sides of the load cell, this makes it easy to integrated into mechanical shaft.

F2812 Force transducer can be used single, it can be used for the small space or limited environment (if the output is rationalized). single load cell can be matched with weighing indicator, converting what you want to.

As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.

Applications:

Mainly used for key and elasticity test of computers, level indicator, easy installed miniature tension and pressure test equipment (like manipulator),
other force measurement application.

Technical parameters:

Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.25% F.S.

Repeatability

0.25% F.S.

Creep (30min)

0.5% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

700±30Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ / 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3*3000 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

Size and capacity:

Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg

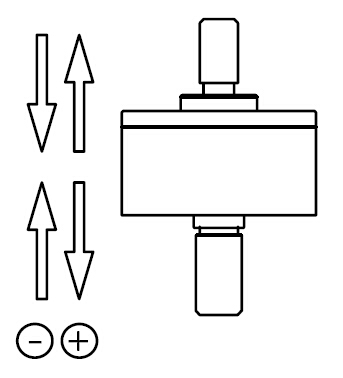

Load direction:

Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg

Schematic Wiring Diagram :

Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg

Product details;

Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg
