Rope Tension Sensor Alloy Steel Load Cell Strain Gauge Force Transducer
Rope Tension Sensor Alloy Steel Load Cell Strain Gauge Force Transducer
Specifications
Brand Name :
tecsis
Model Number :
F9204
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20,000pcs per month
Delivery Time :
Stock product:3~5 working days , No stock:10~35 days
Packaging Details :
Standard: carton
Product Name :
F9204
Structure :
Compact
Material :
Alloy steel
Customized :
Acceptable
Capacity :
1~20t
OEM/ODM :
Acceptable
Theory :
Resistance Sensor
Description

Rope Tension Sensor Alloy Steel Load Cell Strain Gauge Force Transducer

Features :

  • Model:F9204
  • Rope tension load cell
  • High comprehensive precision, high stability
  • Capacity:1t~20t
  • Made of alloy steel
  • Used for rope tension measurement

Description:

F9204 Force transducer is available in the capacities 1t~20t. It can measure the cable tension 1t to 40t.

The protection class is IP66, this makes it easy to used in kinds of harsh envirenments.

It has a high accuracy and easy to install.

This mainly used in the measurement of rope tension force.

The output signal can be 4~20mA and 0~10V.

Applications:

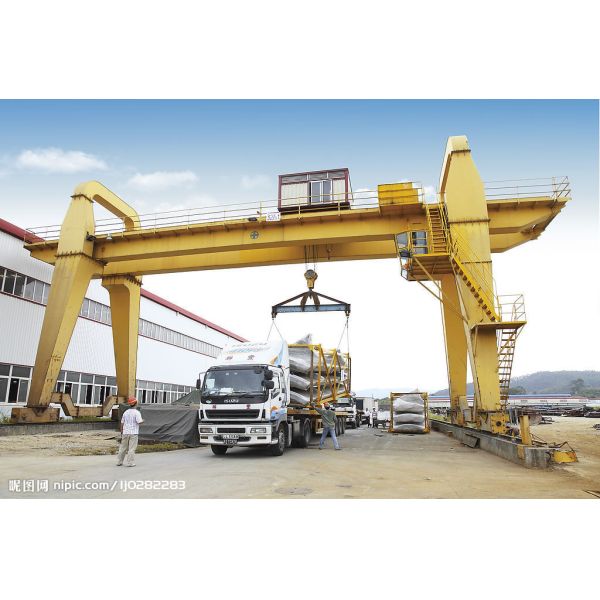

This mainly used in the measurement of rope tension force.

Technical parameters:

Specifications

Technique

Output signal

4~20mA

0~10V(Option)
Power 12~36VDC
Rated output 1.0 ± 10% mV / V

Zero balance

±2% F.S.

Non-linearity

≤0.5% F.S.

Hysteresis

0.5% F.S.

Repeatability

0.5% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

780±10Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ / 50VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø4*3000 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);
Output: Green(+) White(-);

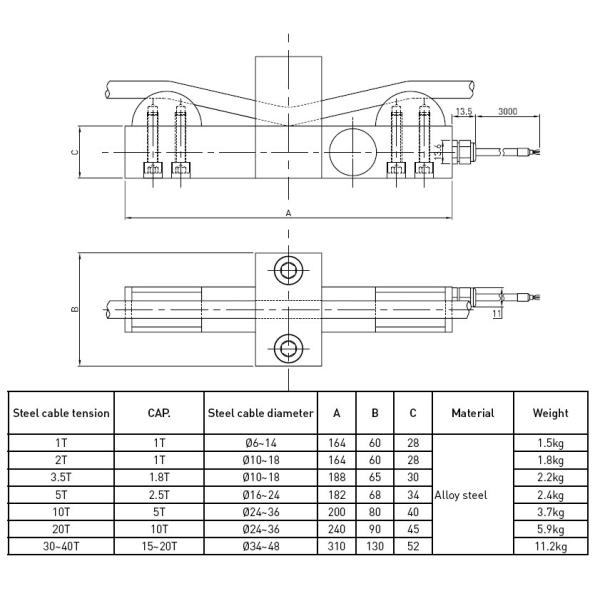

Size and capacity:

Rope Tension Sensor Alloy Steel Load Cell Strain Gauge Force Transducer

Schematic Wiring Diagram :

Rope Tension Sensor Alloy Steel Load Cell Strain Gauge Force Transducer

Rope Tension Sensor Alloy Steel Load Cell Strain Gauge Force Transducer
