BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
Specifications
Brand Name :
TEI-RACING
Model Number :
P60ES+P40S-R
Certification :
China National Inspection Agency
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram and so on
Supply Ability :
10000 sets per month
Delivery Time :
10-15 DAYS
Packaging Details :
Package: 1.Each part is wrapped by EPE foam inside, carton box outside ; 2.Wooden frame is available as required3.Box size:42x42x42cm
Caliper Model :
P60ES+P40S-R
Caliper Material :
6061 Aluminum alloy
Rotor Material :
High carbon alloy
Package Weight :
70 KG
Shipment Way :
Express.air or sea
Payment Way :
Bank Transfer,Western Union or Paypel
Description

High Performance BBK For BMW 4 Series F36 18 Inch Car Rim Front 6 piston and Rear 4 piston brake kit auto brake system

BMW 4 SERIES First Generation F32/F33/F36 2013+ year

It can be installed our front and rear brake kit

Minimum Rear Rotor Size is 345 mm

Normal handbrake or Electric handbrake

The original wheels do not need to add Spacers.

Orginal Brake Rotor Information

Front:

Front Original Rotor Information
Brake Rotor model 20211
Rotor Diameter 300 mm
Rotor Hat Diameter 120 mm
Central Hole Diameter 79 mm
Disc Thickness 22 mm
Minimum Disc Thickness 20.4 mm
Total Height 73 mm
Number of Positioning Holes 5
Disc type Ventilation

BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System

Rear Original Rotor Information
Brake Rotor model 20337
Rotor Diameter 300 mm
Rotor Hat Diameter 120 mm
Central Hole Diameter 75 mm
Disc Thickness 20 mm
Minimum Disc Thickness 18.4 mm
Total Height 66 mm
Number of Positioning Holes 5
Disc type Ventilation

BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System

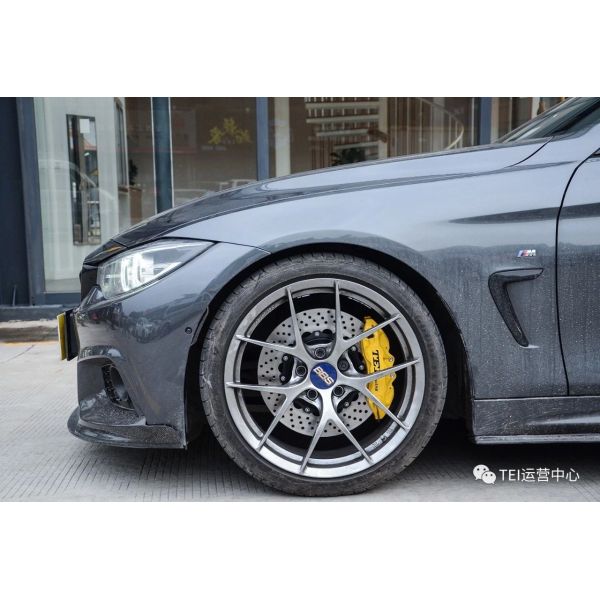

Installation Case

Installation Case Brake Kit Information
Car Model BMW 4 SERIES F36
Front Rear
TEI Caliper Model P60ES P40S-R
Caliper Color YELLOW YELLOW
Rotor Size 355X32 MM 345X28 MM
Rotor Style DRILLED DRILLED
Bolt Type FIXED FIXED
Brake Pad Type SPPA SPPA

Noted:1.You can click the caliper model to check the products information.For example,You can click P60ES to check the P60ES brake information.

2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad

SSS,XSS,MSS=Racing Metal Brake Pad


BBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake SystemBBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake SystemBBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake SystemBBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake SystemBBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake SystemBBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake SystemBBK Brake Kit For BMW 4 Series F36 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit Auto Brake System
