Angle Steel Self Supporting Tower Lattice Steel Tower For Power Transmission
Angle Steel Self Supporting Tower Lattice Steel Tower For Power Transmission
Angle Steel Self Supporting Tower Lattice Steel Tower For Power Transmission
Angle Steel Self Supporting Tower Lattice Steel Tower For Power Transmission
Angle Steel Self Supporting Tower Lattice Steel Tower For Power Transmission
Angle Steel Self Supporting Tower Lattice Steel Tower For Power Transmission
Specifications
Brand Name :
Highlight
Model Number :
HT-033
Certification :
CE，CIAS, AWS
Place of Origin :
China
MOQ :
1 set or 10tons
Price :
USD 880-1300/Ton drawings weight
Payment Terms :
L/C, T/T
Supply Ability :
8000 tons per month
Delivery Time :
within 1 month after Deposit and approved our shop drawings
Packaging Details :
Seaworthy or as per clients` specification
Tower height :
Below 360m
HDG standard :
ISO 1461, ASTM A123
Galvanziation plant :
self-owned
Material grade :
A36, A572 GR.50, S275JR, S355JR,etc
Patent qty :
8
National Hightech company :
Yes
Service :
Design, fabridcation, consultancy,inspection, etc
Price term :
EXW, FOB, CIF, CIP, etc
Description

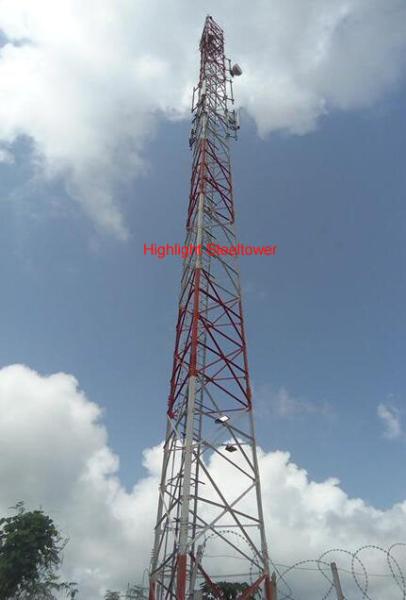

3 LEGGED SELF SUPPORTING TOWER

FIRST OF ALL, WE HAVE OUR OWN HOT DIG GALVANIZATION PLANT!

1. Design code:

1) Major standard: ANSI/TIA‐222‐G & AISC‐LRFD‐99

2). European Standard or Australia and other standard

2. Design loading parameters:

1) Antenna load area: both FPA and EPA as per specified by Clients worldwide.

2) Wind speed: Basic design wind speed and operational wind speed (3 second gust) as per requested by the clients.

3) Deflection & Twist Angle: Usually +/- 1° for monopole and +/- 0.5° for 3 leg/4 leg angular/tubular towers

4) Exposure category: C as default one, or B and D as per requested by clients

5) Topographic category: 1 as default one, or 2, 3 ,4 with crest height (meters) as per specified by clients.

6) Ice Loading: Usually there is no ice in the project area.

3. Tower structure class:II

4. HDG standard: ASTM A123, ISO 1461-2009

5. Steel grade: Q460 equel with ASTM A572 GR.65

Q345B equel with S355, ASTM A572 GR.50

Q235 equal with ASTM A36

6. Bolt grade:6.8, 8.8, 10.9

7. Tower type: 3/4 legged tubular towers, 3/4 legged angular towers,

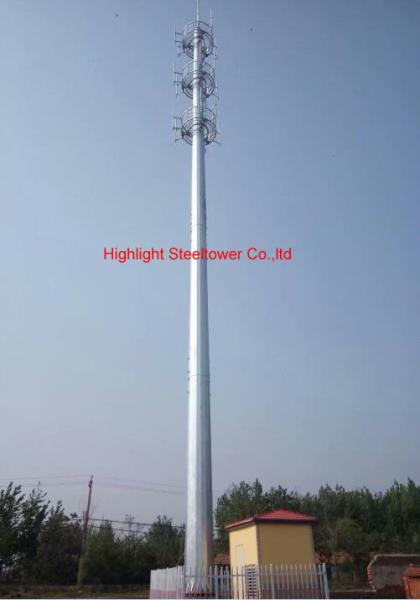

monopole, guyed tower, RDS tower, Rooftop tower, camouflaged tree monopole tower,

self supporting lattice tower, green filed tower, workshop

8. Accessories: Antenna brackets, ladder, safety hoop, HDB, earthing, fence, shelter, generator, aviation light, paint, Fall arrest system, Optical fiber cable,etc

9. QC test: Welding quality via MPI, Ultrosonic, tower assembly,

fabricaton tolerance standard and raw material inspection record pls contact us

Product tags

lattice transmission tower

,

steel transmission tower

,

transmission tower construction
