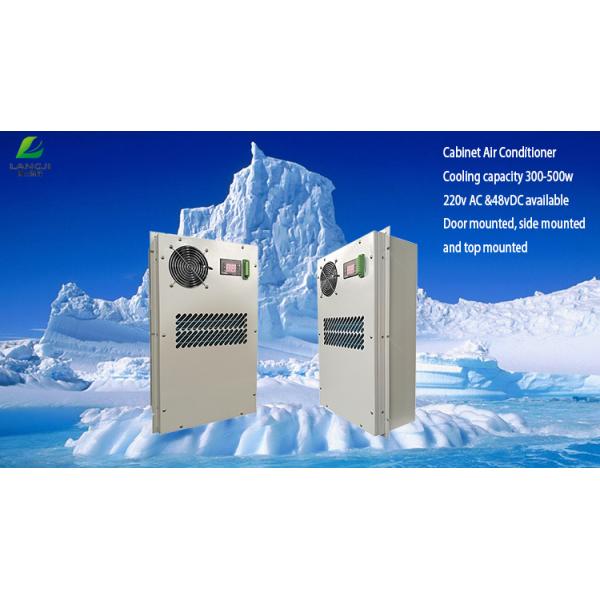

300W AC Air Conditioner for Electrical Cabinet Cooling
Cabinet air condition is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.
Langji AC air conditioner Technical Data Sheet
Model | Cooling capacity (L35/L35) | Rated Voltage (V/ph/Hz) | Rated current (A) | Related power (L35/L35) | HxWxD (mm) | Weight (Kgs) |
SAD103-2 | 300W/1000BTU | 220/1/50 | 1.25 | 220 | 583x353x165 | 16 |
SAD104-2 | 400W/1350BTU | 220/1/50 | 1.30 | 240 | 583x353x165 | 16 |
SAD105-2 | 500W/1700BTU | 220/1/50 | 1.50 | 320 | 583x353x165 | 16 |
SAD106-2 | 600W/2000BTU | 220/1/50 | 1.63 | 360 | 692x455x155 | 21 |
SAD108-2 | 800W/2700BTU | 220/1/50 | 1.86 | 410 | 692x455x155 | 21 |
SAD110-2 | 1000W/3400BTU | 220/1/50 | 1.93 | 426 | 791x491x188 | 32 |
SAD112-2 | 1200W/4000BTU | 220/1/50 | 2.20 | 485 | 791x491x188 | 32 |
SAD115-2 | 1500W/5000BTU | 220/1/50 | 2.75 | 605 | 791x491x188 | 32 |
SAD120-2 | 2000W/6800BTU | 220/1/50 | 3.38 | 745 | 1087x460x188 | 42 |
SAD125-2 | 2500W/8500BTU | 220/1/50 | 4.09 | 900 | 1087x460x188 | 42 |
SAD130-2 | 3000W/10200BTU | 220/1/50 | 5.63 | 1240 | 1208x549x220 | 60 |
SAD135-2 | 3500W/12000BTU | 220/1/50 | 6.18 | 1360 | 1208x549x220 | 60 |
SAD140-2 | 4000W/13500BTU | 220/1/50 | 6.73 | 1550 | 1208x549x220 | 60 |
SAD145-2 | 4500W/15300BTU | 220/1/50 | 7.28 | 1610 | 1208x549x220 | 60 |
SAD150-2 | 5000W/17000BTU | 380/3/50 | 3.00 | 1980 | 1640x672x297 | 100 |
300W Installation Drawing
