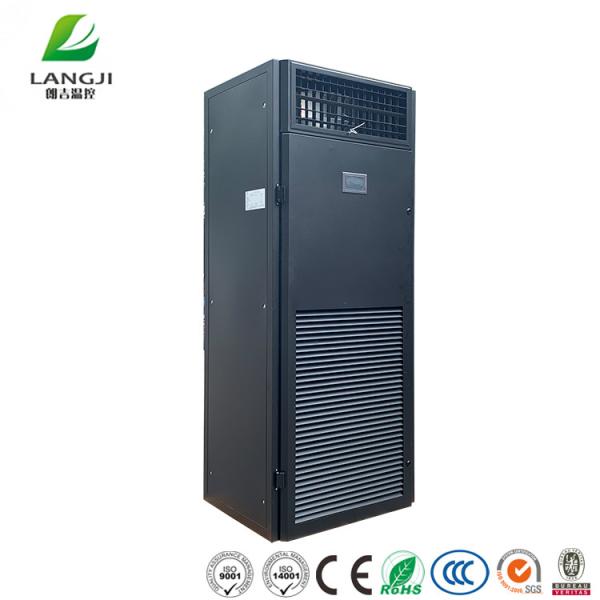

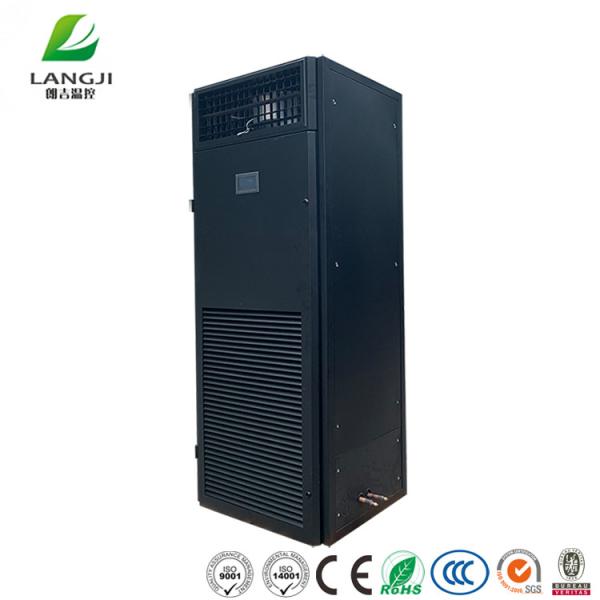

Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit
Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit
Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit
Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit
Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit
Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit
Specifications
Brand Name :
Langji
Model Number :
FC-5000
Certification :
ISO9001/14001
Place of Origin :
Suzhou,China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
15~20 working days
Packaging Details :
wooden case
Product name :
Precision air conditioner
Cooling capacity :
20KW(8P)
Power consumption :
6.5KW
Refrigerant :
R407C
Power Supply :
3N-/380V/50Hz
Compressor :
Emerson
Inner circulation air volume :
6200m³/h
Outer circulation air volume :
9500m³/h
Description
Energy saving 20kw precision air conditioners

1. Description of precision air conditioner

Precision air conditioner realizes the dual working mode of air conditioner and heat pipe by a single system. Built-in internal and external temperature sensors, through the intelligent controller to automatically control the work of heat pipes and air conditioning, priority to run the heat pipe to achieve the maximum energy saving effect. It is widely used in communication base stations, computer rooms, IDC data centers, container cabins and other occasions where heat dissipation is required.

2. Data Sheet

Model SLJ-20000-4<20KW>
Power Supply 3N-/380V/50Hz(1-/220V/50Hz)
Cooling capacity 20KW(8P)
Total power 6.5KW
Compressor working current 10A
Maximum working current of the whole 18A
Heating capacity 6KW
Refrigerant R407C/4.8kgs
Inner circulation air volume 6200m³/h
Outer circulation air volume 9500m³/h
Indoor unit weight 231kgs
Outdoor unit weight 116kgs
Indoor dimension 806x635x2150mm
Outdoor dimension 1030x405x1680mm

3. Product Advantage

1. The air conditioner and the heat pipe share the same system, which greatly improves the efficiency of the air conditioner and the heat pipe.

2. The air-conditioning system and the heat pipe system can be switched intelligently and can be remotely monitored.

3. The energy saving effect is very significant.

4. Digital temperature controller, high temperature control accuracy.

5. The main components have passed CE certification and comply with EU ROHS requirements.

6. The modular machine design can be freely combined according to the size of the site space, which is convenient for transportation and installation.

4. Application

1. Telecommunications rooms

2. Mobile base stations

3. Computer rooms

4. Data Center

5. Control centers

5. Product details

Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit

Energy Saving 20kW Precision Air Conditioners , Precision Air Conditioning Unit
