UPS Battery Charging Outdoor Power Cabinet
UPS Battery Charging Outdoor Power Cabinet
UPS Battery Charging Outdoor Power Cabinet
UPS Battery Charging Outdoor Power Cabinet
UPS Battery Charging Outdoor Power Cabinet
UPS Battery Charging Outdoor Power Cabinet
Specifications
Brand Name :
Langji
Model Number :
OEC2150-DC500
Certification :
ISO9001, ISO14001 CE, 3C, IP55
Place of Origin :
China
MOQ :
1 pc
Price :
USD 200~500/unit
Payment Terms :
T/T, Western Union, L/C,PayPal
Supply Ability :
1500 pcs / month
Delivery Time :
15~25 working days
Packaging Details :
Wooden case with pallet or just export pallet
Protection level :
IP55 / IP65
External size :
customized
Material :
Steel/zinc seal steel
Application :
Telecommunication,Solar base station
Cooling system :
500W compressed air conditioner
Surface :
plating
Structure :
front door,double layer
Weight :
330KGS
Description

New Designed Ups Battery Charging Cabinets Outdoor Power Cabinet

Protect name Outdoor Telecom Battery Cabinet
External dimension H*W*D 2100*900*900mm
Internal dimension H*W*D 1800*800*800mm
Material Double wall galvanized steel,with 50mm EPS or PU heat insulation between the double wall.
Surface Finish RAL7035 grey
Ingress Protection IP55
Security design Embedded door, embedded hinges, 4-point security lock
Door One front door ,with 10mm thickness rubber cotton on the internal door panel
Cable entry method Cable entries from the bottom
Grounding protection Grounding cooper bar
Structure Assembled sandwich structure
Layout One compartment,with 4 battery shelves
Lead acid battery installation Method Battery shelves,each shelf can load 500KG weight.
Cabinet cooling Option 1:AC or DC power cabinet air conditioner Option 2:Heat plate exchanger Option 3:TEC cooler
MOQ 1 unit
Warranty 1 Year
Payment T/T,L/C,Western Union,PayPal
Delivery time 15~25 working days

1.Cabinet Dimension:

Suzhou Langji Company has a very experienced technical team.We support design the cabinet according to the specific dimension and quantity of the lead acid battery.

2.Cabinet Material:

Normally our outdoor battery cabinets are made of galvanized steel.With double walls,thickness of outer plare is 1.0~1.5mm, thickness of inner plate is 0.8~1.0mm.There are 50mm EPS heat insulation between the double walls.The cabinet is assembled structure.

3.Cabinet Structure:

The cabinet includes 4 battery shelves for placing 4 strings of lead acid batteries. The cabinet includes one 500W DC 48V cabinet air conditioner, installed on front door.

4.Cabinet Door And Lock:

The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof four point lock, supporting padlock.

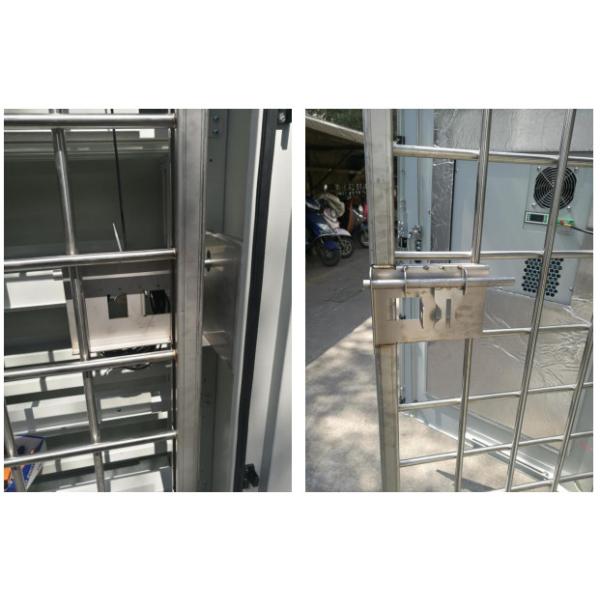

5.Cabinet Anti-theft Design:

Add a mesh door with inside lock system, the mesh door made of SUS304 stainless steel, as the lock system is inside, so it is impossible to destroy from outside.

UPS Battery Charging Outdoor Power Cabinet

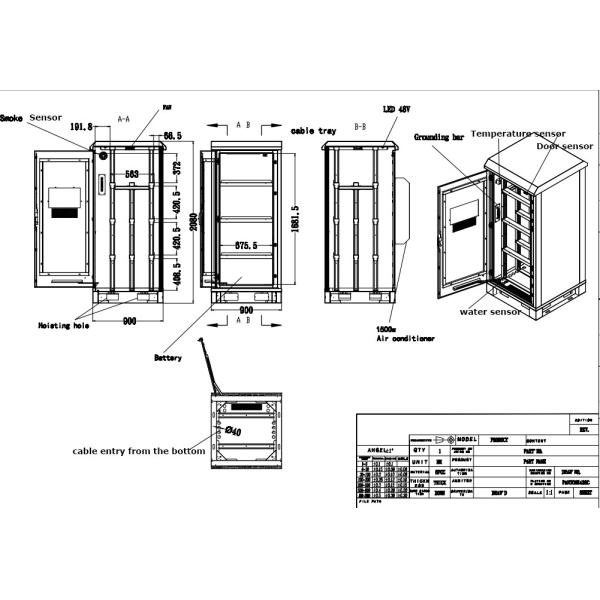

6.Cabinet Drawing:

UPS Battery Charging Outdoor Power Cabinet

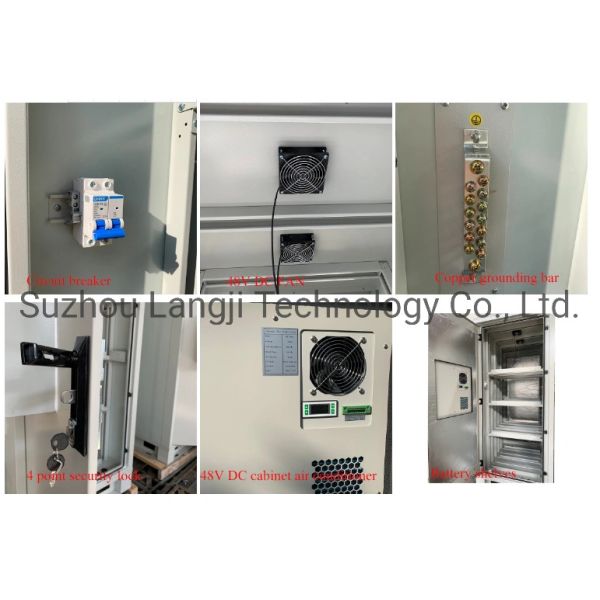

7.Cabinet Details:

UPS Battery Charging Outdoor Power Cabinet
