30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
Specifications
Brand Name :
Langji
Model Number :
OEC2100-AC1500
Certification :
ISO9001, ISO14001 CE, 3C, IP55
Place of Origin :
China
MOQ :
1 pc
Price :
USD 200~500/unit
Payment Terms :
T/T, Western Union, L/C,PayPal
Supply Ability :
1500 pcs / month
Delivery Time :
15~25 working days
Packaging Details :
Wooden case with pallet or just export pallet
Type :
Outdoor cabinet for BTS
External size :
customized
Material :
Steel/zinc seal steel,Stainless steel,Aluminum
Color :
RAL7035 GREY,black,Customer Request,Grey/ optional
Product name :
30U Outdoor Telecommunication Cabinet
Application :
Telecommunication,base station,Outdoor Electronic Equipment,FTTX Network/Telecom
Size :
Customer's Requst
Service :
OEM ODM
Description

30U 19 Inch Rack Outdoor Telecommunication Equipment Cabinet for BTS Station

The 19'' rack or 23'' rack telecom outdoor electronic cabinets are designed to house varity of telecom equipments and 19'' inch mounting lithium batteries.It can provide a steady working temperature for them,and delay their service hours.

1. Cabinet Parameters:

Protect name Telecom Electronic Equipment Cabinet
External dimension H*W*D 2100*900*900mm
Internal dimension H*W*D 1800*800*800mm
Material Double wall galvanized steel,with 50mm heat insulation between the double walls.
Surface Finish RAL7035
Security design Embedded door, embedded hinges, 4-point security lock
Door One front door,with door mounted air conditioner
Cable entry method Cable entries in the bottom
Grounding protection Grounding cooper bar
Structure Assembled sandwich structure
Layout One compartment with 19 inch rack for telecom equipments and lithinum batteries installation.
Cabinet cooling

AC 1500W side mounting cabinet air conditioner

DC 48V emergency fan
MOQ 1 unit
Warranty 1 Year
Delivery time 15~25 working days

2. Option Accessories List:

Item Specifications
Fan DC48V Fan,work at 35ºC
PDU Garde B lightning proof
AC INPUT:63A/2P *1
AC OUTPUT:16A/1P *4
DC OUTPUT:16A/1P *4 or customer requirement
Heat Insulation Heat insulation between inner wall and outer wall.
The insulation material is 20~45mm EPS or PVC/NBR.
Environment Monitoring Unit 48VDC Communication port:RS485,TCP/IP,SNMP optional
Door Sensor Monitor door open status inside cabinet and provide real time alarm
Water Sensor Monitor water status inside cabinet and provide real time alarm
Tilt & shock sensor Monitor shock status inside cabinet and provide real time alarm
Temperature & Humidity sensor Monitor temperature and humidity inside cabinet and provide real time alarm
Smoke sensor Monitor smoke status inside cabinet and provide real time alarm
Built-in power supply 150A/200A/300A

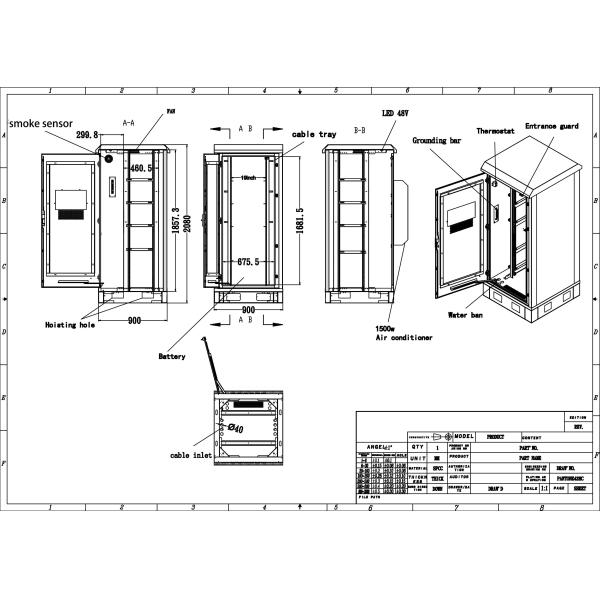

3. Cabinet Drawing:

30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station

4. Related Products:

30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station

5. Package & Shipping

30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station

6. Our Exhibitions:

30U 19 Inch Rack Outdoor Telecom Cabinet For BTS Station
