2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)
2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)
2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)
2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)
Specifications
Brand Name :
Eltek
Model Number :
8KW 230Vac / 4KW 115Vac
Certification :
CE
Place of Origin :
China
MOQ :
5 sets
Price :
1999 USD
Supply Ability :
500 sets
Delivery Time :
10-12 weeks
Brand :
Eltek
Product Name :
Rectiveter power system
Part No. :
CTOR0402.1xxx

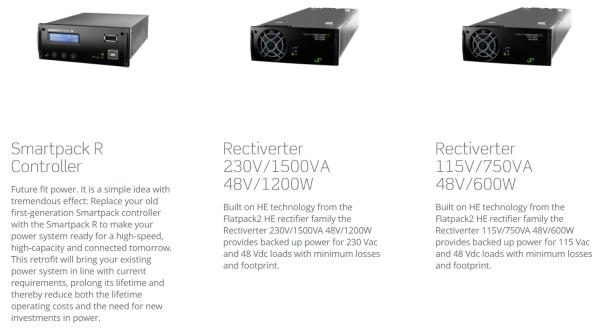

Rectiverter module :
241123.100 or 241123.102
Power max :
4800 W (6000 VA) / 8000 VA or 2400 W (3000 VA) / 4000 VA
Controller :
Smartpack R
Height :
2U
LVBD :
optional ( 150A max)
AC /DC distribution :
as client request
Description

2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)

Eltek Rectiverter 2U Power Core 6kVA 1phase AC DC into one System 8KW CTOR0402.1xxx

The Rectiverter 2U power core combines both AC and DC feed into one 2U compact unit. Simultaneously it provides AC backup power

for 230 VAC or 115 VAC loads, and 48 VDC power for DC loads and battery charging.

APPLICATIONS

TELECOM-MOBILE/WIRELESS

· LTE/4G/WiMAX

· Distributed antenna system

· Broadband

· Radio base stations/cell sites

POWER UTILITIES

· Low & High voltage switchgear

· Transformer & SUB stations

· Control & protection

· SCADA system

RAILWAY & METRO INFRASTRUCTURE

· Control & protection

· Signaling

Models 8 kW, 230 VAC 4 kW, 115 VAC
Product family CTOR0402.1xxx CTOR0402.1xxx
AC OUTPUT DATA
Voltage (default) / (adjustable range) 1) 230 VAC / 200-240 VAC 115 VAC / 100-127 VAC
Frequency (inverter mode – default) 50 Hz (adaptive) 60 Hz (adaptive)
Frequency (inverter mode – settable) 50 Hz, 60 Hz or last synced 50 / 60 Hz (adaptive)
Power maximum (continuous / overload <15s) 4800 W (6000 VA) / 8000 VA 2400 W (3000 VA) / 4000 VA
Current maximum (continuous / overload <15s) 26 ARMS / 34,8 ARMS
Current (maximum) quick trip (20ms) 128 A (6 x nominal)
Hold up (Voltage dips) (before switching to battery) 5 ms 5 ms
THD < 1,5 % at resistive load
Protection Fuse in L, Hot pluggable, Varistor
DC OUTPUT DATA
Voltage (default) / (adjustable range) 53,5 VDC / 43-58 VDC
Power (maximum @nominal input) 4800 W 2) 2400 W 2)
Current (maximum @VOUT ≤ 108 VDC) 100 A 2) 50 A 2)
Current sharing (10 - 100% load) ±5 % of maximum current from 10 to 100 % load
Protection Short circuit proof, Over voltage shutdown, Reversed polarity and Fuse
INPUT DATA
AC Mains Input Voltage (range / LV disconnect) 185-275 VAC / 170 VAC 95-140 VAC / 85 VAC
AC Current (maximum - depends on module type) 32,8-46 ARMS 3) 36,8-45,2 ARMS 3)
Frequency (default: sync range) 47-53 & 57-63 Hz 57-63 & 47-53 Hz
Frequency (settable: sync range) 47-53 Hz, 57-63 Hz or both (adaptive)
Power Factor / THD > 0,99 at 70% load or more / < 3,5 %
DC Voltage nominal / extended range 4) 45-58 VDC / 40-45 VDC
DC Current (maximum) 128 A / 180 A during overload (15 s) 64 A / 90 A during overload (15 s)
Input features

Fuse in L and N, Hot pluggable, Varistor

AC input individual screw terminals 4 mm2 for L, N & PE (4x single phase)
OPTIONS
Control unit Smartpack R
Alarm connection Extension Alarm Card (6x Digital Inputs & 6x Relays)
Battery distribution Max. 2x 100 A or 1x 150 A
LVBD 150A (optional)
AC distribution Max. 3x 16 A (1 pole) or 1x 16 A (2 pole) MCBs
DC distribution Max. 3x 60 A (1 pole) MCBs
OTHER SPECIFICATION
Efficiency > 96 % (mains mode), > 94 % (inverter mode) > 92 % (mains mode), > 91 % (inverter mode)
Operating temperature -40 to +55 °C (-40 to +131 °F), humidity 5-95 % RH non-condensing
Storage temperature -40 to +85 °C (-40 to +185 °F), humidity 0-99 % RH non-condensing
Dimensions [W x D x H] 483 x 386 x 97 mm (19 x 15,2 x 3,8 inch)
Weight 9,9 kg (21,8 lbs)

2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)

2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)

2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)

2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)

2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)

2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)2U 19inch 6kva 1 phase telecom power system eltek rectiverter (CTOR0402.xxx)

Solutions

We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :

1. How do you control the quality?

A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?

A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?

A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?

A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?

A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?

A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?

A:100% original with new package. we will test each item before posted to make sure each item with good quality.

8 How many months for guarantee ?

A: 1 year quality guarantee

9 How to deal with any inferior -quality goods ?

Goods can be post by with our charge of post fee for any bad quality products within guarantee time.

·
